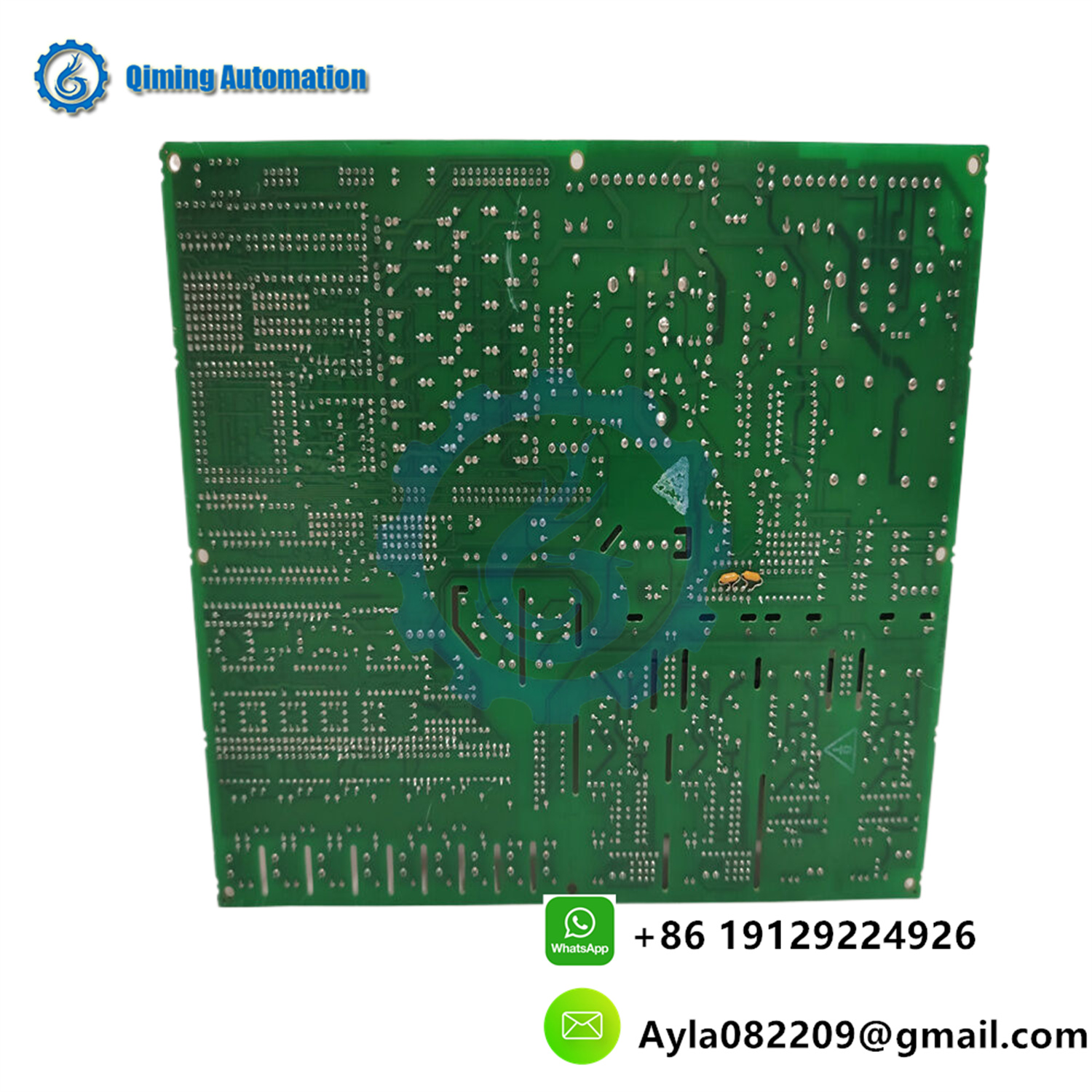

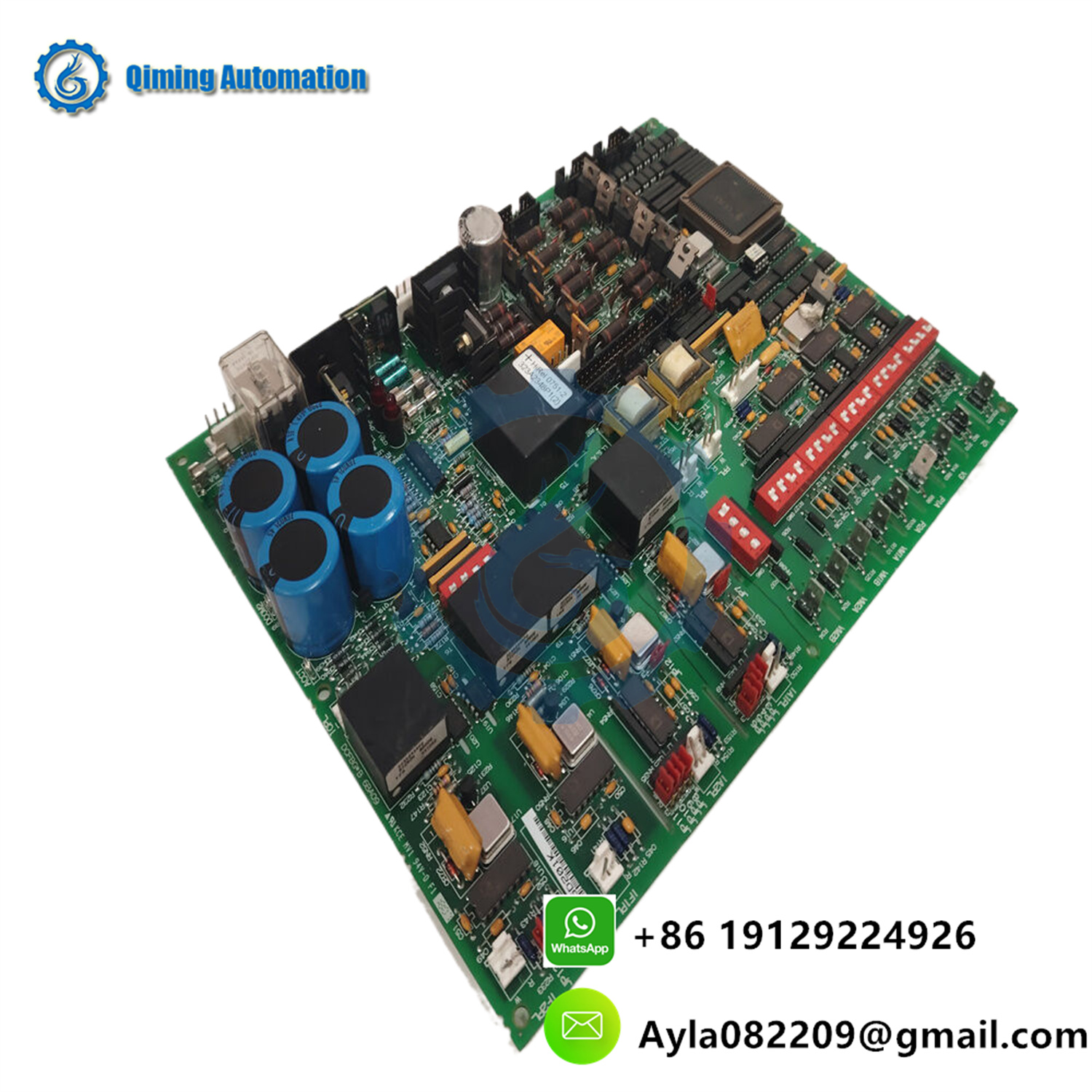

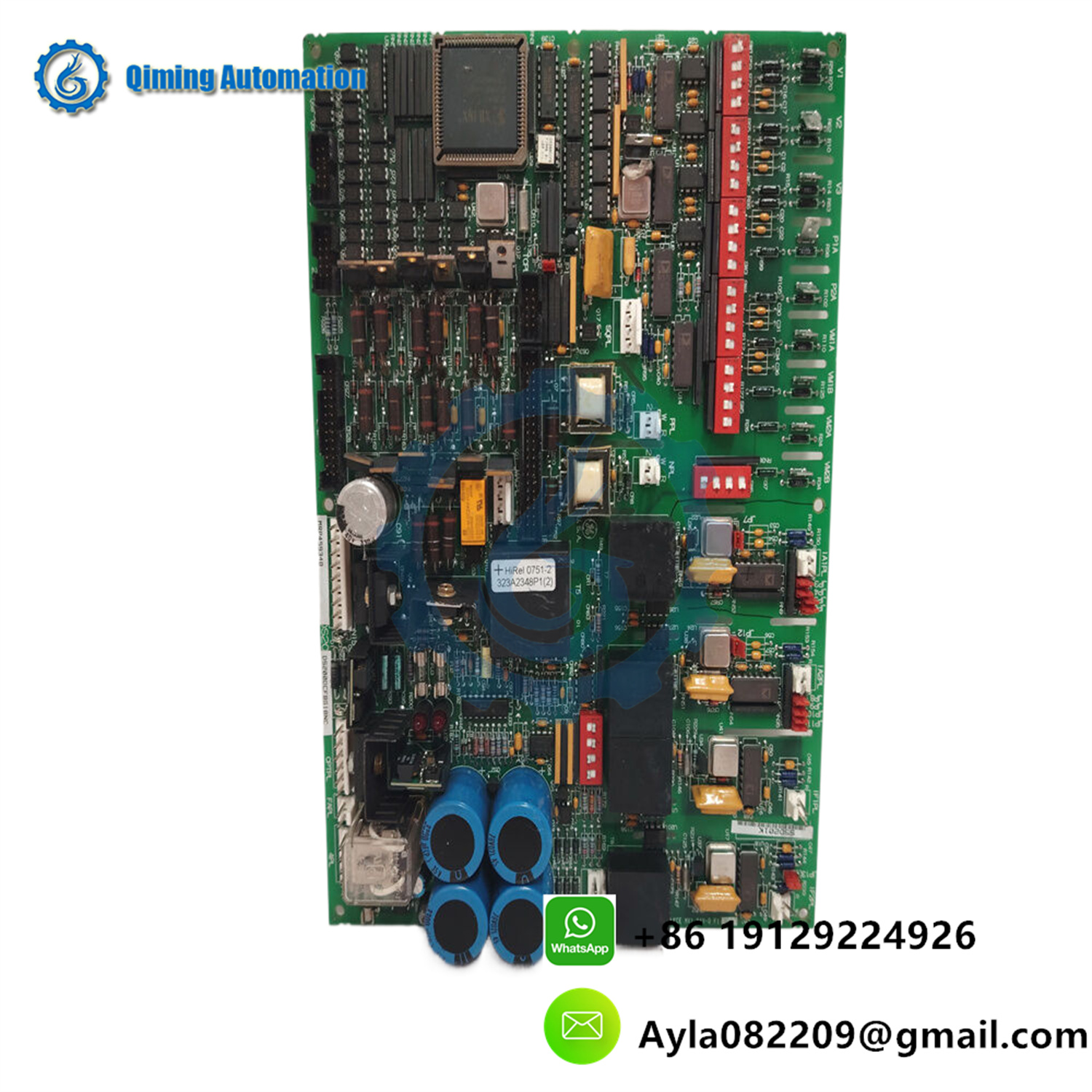

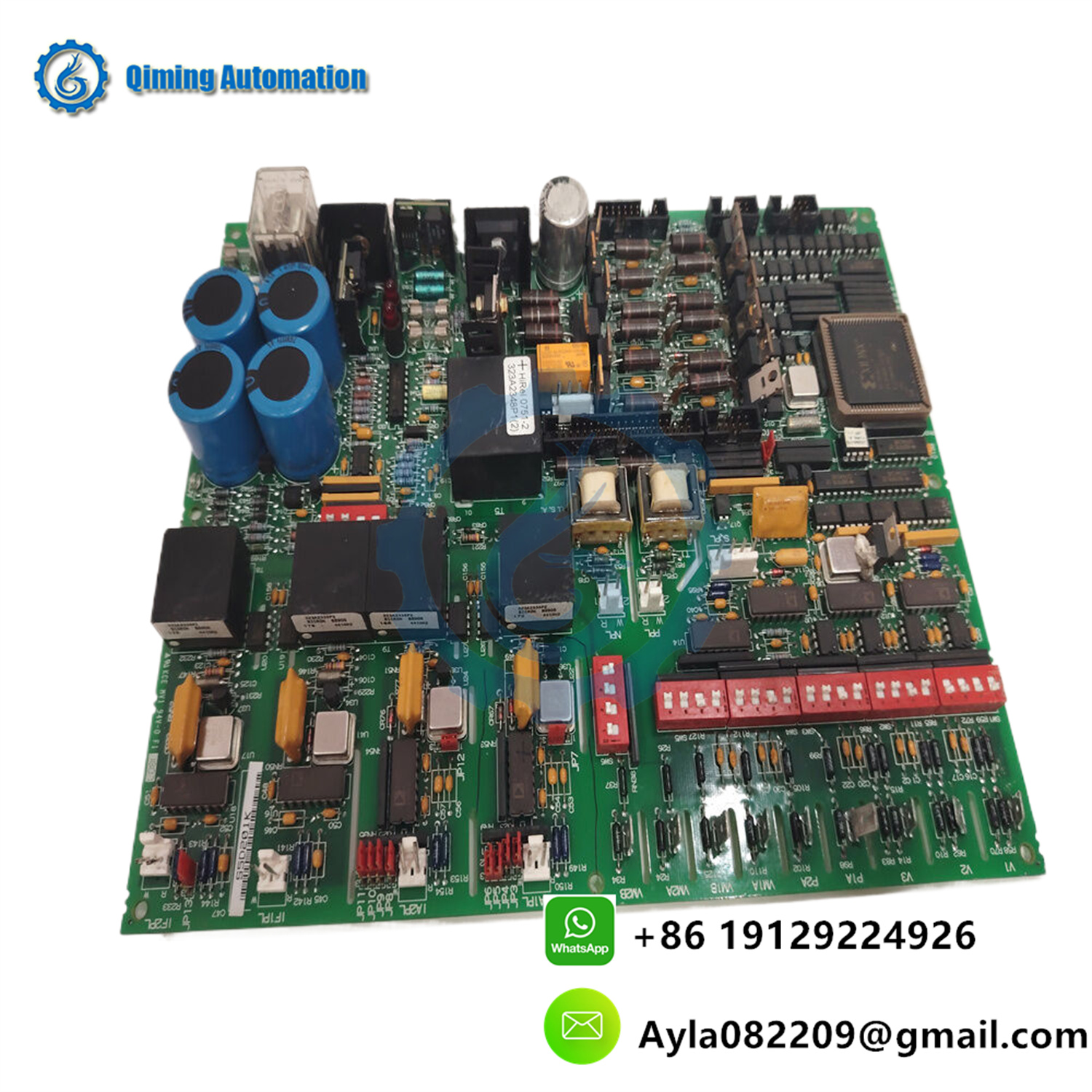

The GE DS200DCFBG1BNC is an important industrial control component produced by General Electric (GE). The following is a detailed introduction to it:

1、 Basic Information

Model: DS200DCFBG1BNC

Brand: GE (General Electric)

Application field: mainly used in industrial control systems

2、 Main functional features

Digital controller:

DS200DCFBG1BNC is a digital controller module that can execute various control logics and algorithms, effectively controlling the operation of industrial processes or equipment.

Communication interface:

The module may be equipped with multiple communication interfaces, such as Ethernet interfaces, serial interfaces, etc., to facilitate data exchange and communication with other devices or systems.

Input/output:

Equipped with multiple digital input and output channels for receiving external signals and controlling external devices.

Data processing:

Support data processing and computation functions, capable of processing and analyzing input signals, and generating corresponding control output signals.

Modular design:

Adopting modular design makes installation, maintenance, and replacement more convenient. Users can choose and configure corresponding modules according to their actual needs.

High reliability:

Designed for industrial environments, with high reliability and stability, suitable for long-term operation and various working conditions.

Security:

Equipped with security features such as fault detection and data encryption, effectively protecting the security and stability of the control system.

Programmability:

Supporting programming functions, users can write control logic and algorithms according to their needs to achieve specific control functions.

3、 Technical specifications

Circuit board type: Power board, which is part of the Speedtronic Mark V control system.

Compatible system: Compatible with various GE branded exciters and drivers, such as FC2000, AC2000, DC2000, ME2000, and CB2000 series drivers.

Voltage range: The voltage fed into the circuit board can be safely between 38 and 115VAC.

Circuit composition: including driver circuit, control level power supply circuit, motor magnetic field power supply circuit, and AC and DC monitoring circuit.

4、 Application scenarios

DS200DCFBG1BNC can be used in various fields such as teaching, research, electronic product production lines, and industrial control in colleges and universities. Its high performance and versatility make it a key component in various control and monitoring applications.
