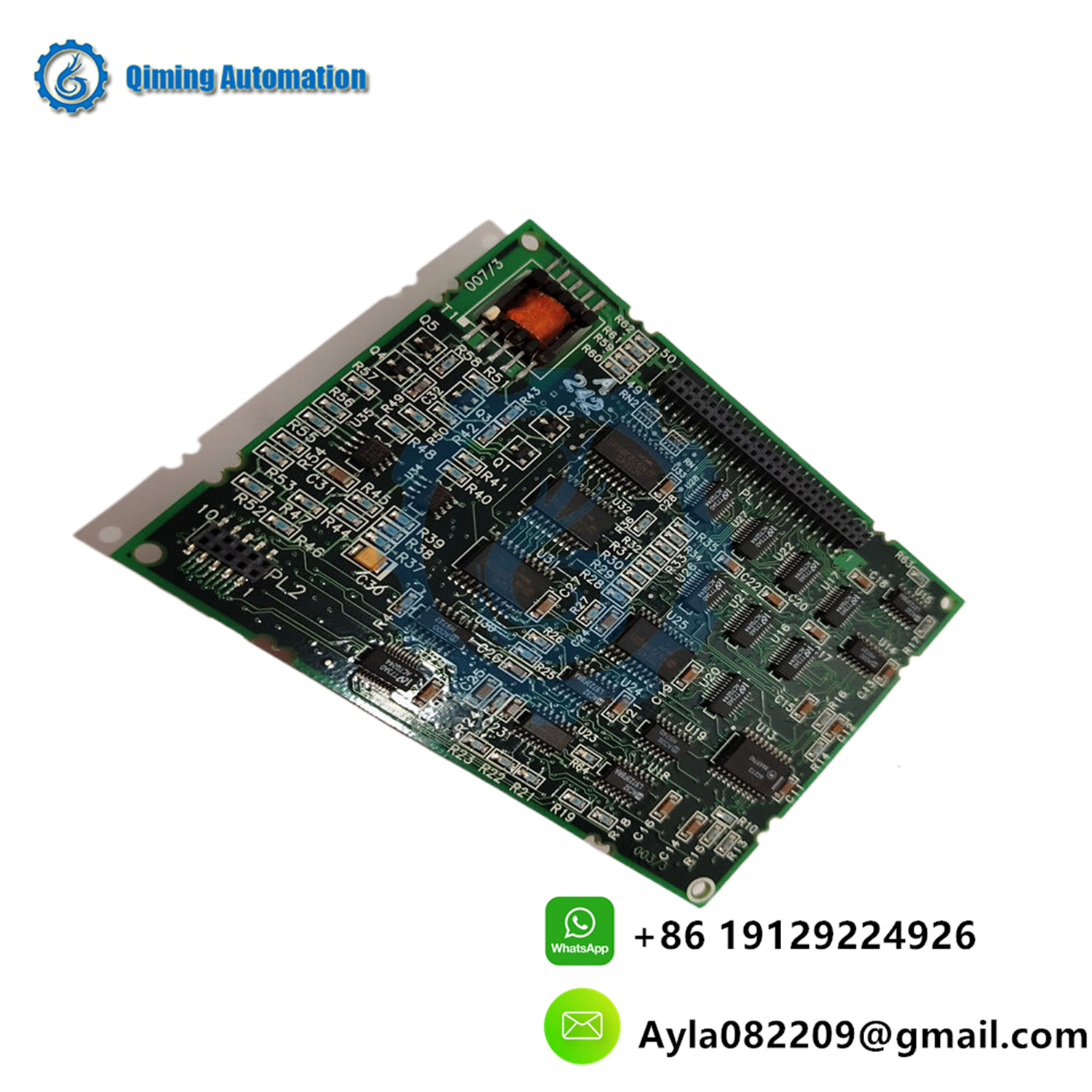

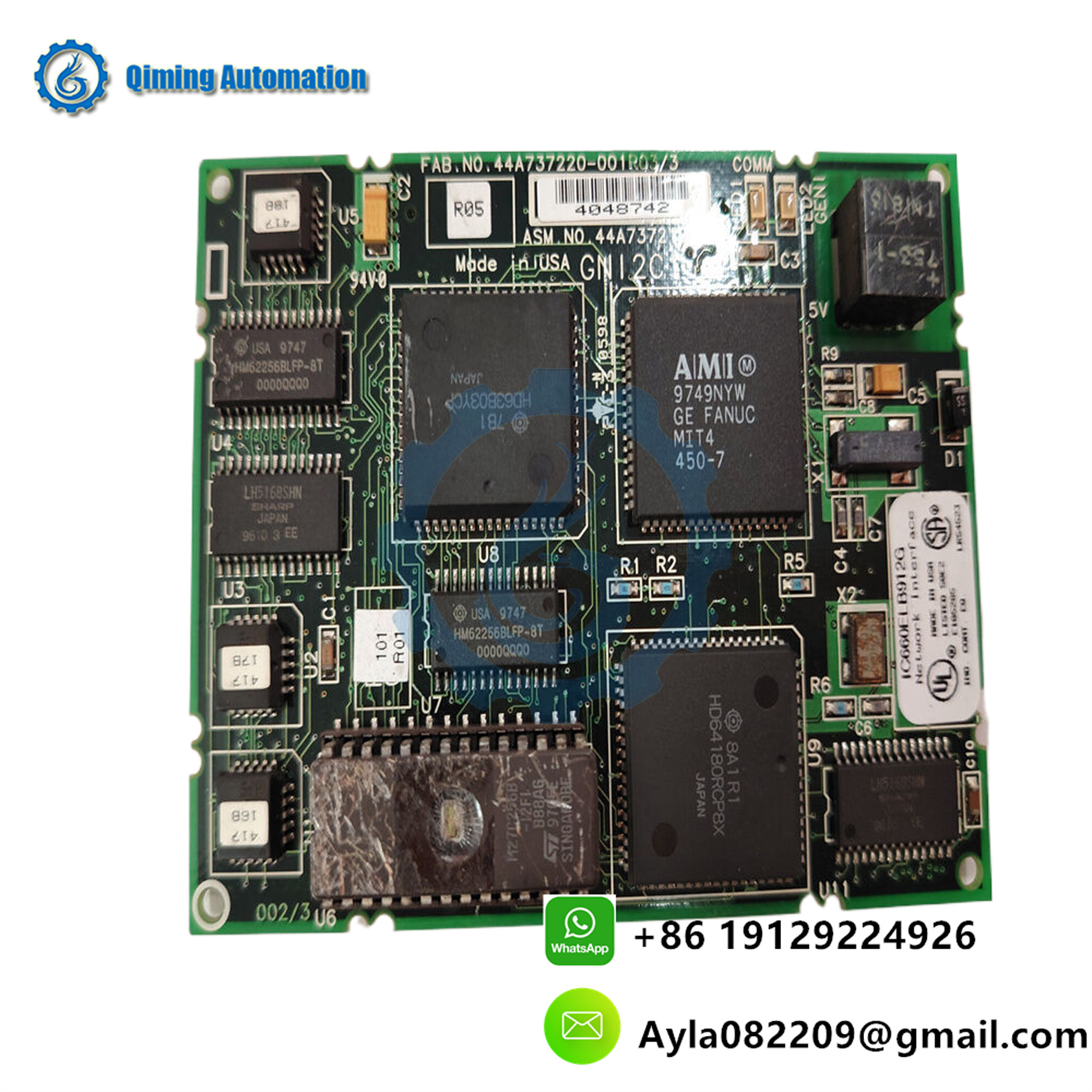

GE IC660ELB912G is a Genius network interface module. The following is a detailed introduction to the product:

1、 Basic Information

model: IC660ELB912G

Brand: GE (General Electric)

Manufacturer: Former GE Fanuc, now owned by Emerson Automation

Series: PC Interface Module (PCIM)

2、 Functional characteristics

Connection and compatibility:

This module is a daughter board connected to a single slot or dual slot IBM PC Interface Module (PCIM).

It can be connected to the Genius I/O bus to achieve remote control, monitoring, and management of I/O devices.

Communication ability:

Supports multiple communication baud rates, such as 38.4K, 76.8K, 153.6K standard or 153.6K extension.

Capable of controlling up to 30 bus devices at these baud rates.

Memory and processor:

Equipped with shared RAM and 16KB of memory.

Contains a 6303 microprocessor for message writing and other functions.

Internal management:

Responsible for executing internal management tasks such as device initialization and fault management.

Maintain data images of controlled devices and be able to exchange data with other controllers.

3、 Physical and installation characteristics

Appearance and dimensions: The net length of the product is 160mm, and the structural form is integral.

Installation and power supply: This module can be easily installed using gaskets and screws. We need a 5V DC rated power supply to provide logic power.

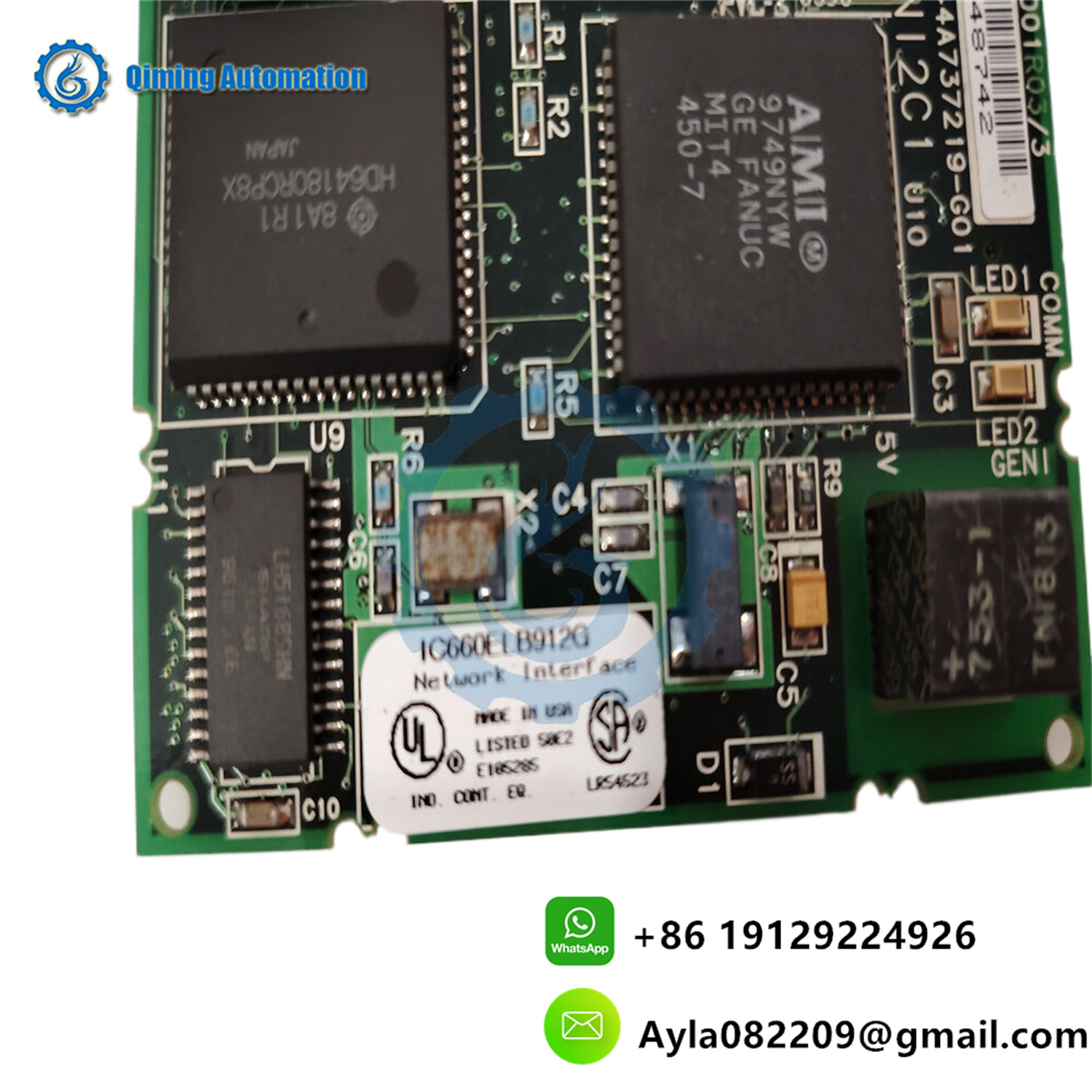

Indicator lights: Equipped with 2 status indicator LEDs (GENI OK and COMMS OK), used to display the operation and communication status of the device.

4、 Application scope

This module is suitable for various industrial fields, such as petroleum, natural gas, mining, machinery, etc., and can be used to achieve automation control and remote monitoring.

5、 Precautions

When using GE IC660ELB912G, ensure that its working environment is clean and dry, avoiding splashing of coolant and oil mist.

Regularly inspect and maintain electrical cabinets and their internal components to ensure a good working environment and operating condition.
