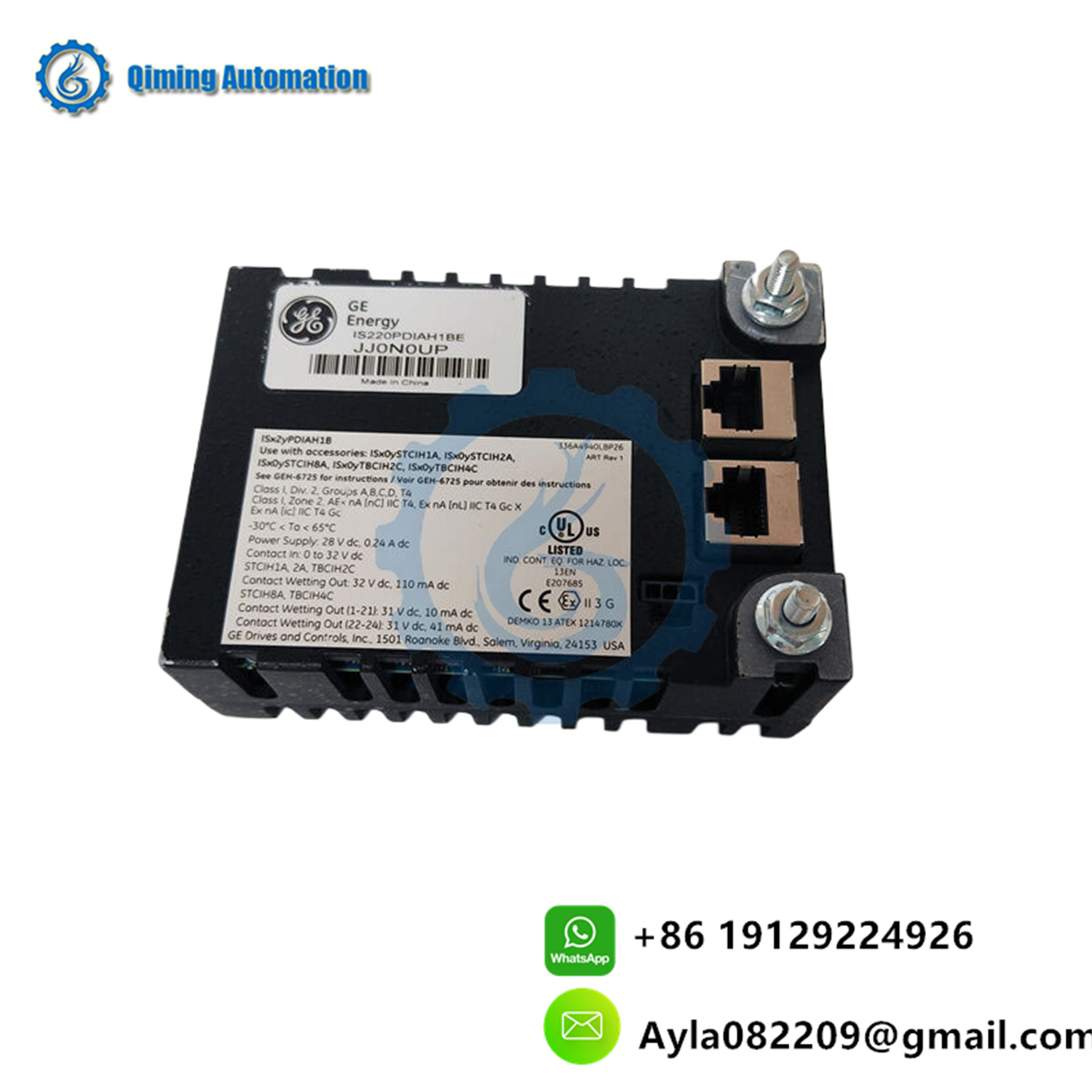

GE IS220PDIAH1BE 336A5026ADP4 is an industrial grade safety barrier manufactured by General Electric (GE). The following is a detailed introduction to it:
1、 Basic Information
Product model: GE IS220PDIAH1BE 336A5026ADP4
Manufacturer: General Electric (GE) Corporation
Series: Isolation series isolation barrier products
2、 Main purpose
The main function of this safety barrier is to isolate circuits with different potentials in hazardous environments, in order to protect equipment and personal safety. It is widely used in various industrial environments, such as power, petroleum, chemical, steel, paper and other industries, as well as special fields such as military, medical and research institutions.
3、 Technical features and functions
High isolation voltage: capable of withstanding isolation voltages up to thousands of volts, ensuring equipment and personal safety.
Low leakage current: Under the action of isolation voltage, the leakage current is extremely small, which can effectively prevent the occurrence of electric shock accidents.
Wide working temperature range: capable of stable operation within a wide working temperature range of -40 ℃~+85 ℃, suitable for various harsh environmental conditions.
High reliability: Using high-performance electronic components and advanced circuit design to ensure long-term stable operation.
Easy to maintain: With simple plug-in connections and easily replaceable isolation devices, it is convenient for maintenance and repair.
Electromagnetic compatibility (EMC) and lightning protection: can effectively resist various electromagnetic interferences and lightning strikes.
Protection function: Equipped with overload protection, short circuit protection and other protection functions to ensure equipment and personal safety.
Support for additional configuration files: Can be easily integrated into Rockwell Automation's RSLOGX5000 software for users to configure, diagnose, and integrate.
4、 Product parameters
Input voltage range:- 15V~+30V
Input current range:- 1mA~+1mA
Isolation voltage: up to several thousand volts
Leakage current: extremely small
Working temperature range:- 40℃~+85℃
Protection functions: overload protection, short circuit protection, etc
Fault indication function: equipped with
Electromagnetic compatibility (EMC): meets relevant standard requirements
Lightning protection: can resist lightning strikes
5、 Product specifications
Size: 150mm x 85mm x 65mm (length x width x height)
Weight: Approximately 1kg (excluding cables)
Material: Aluminum alloy shell, plastic internal structure
Color: Grey (outer shell), Black (internal structure)
6、 Application scenarios
GE IS220PDIAH1BE 336A5026ADP4 can be widely used in various equipment in hazardous environments, such as motors, pumps, valves, and various process control systems. At the same time, it can also serve as an industrial communication module, providing reliable data transmission and communication functions between devices, ensuring the stable operation of industrial automation systems.
