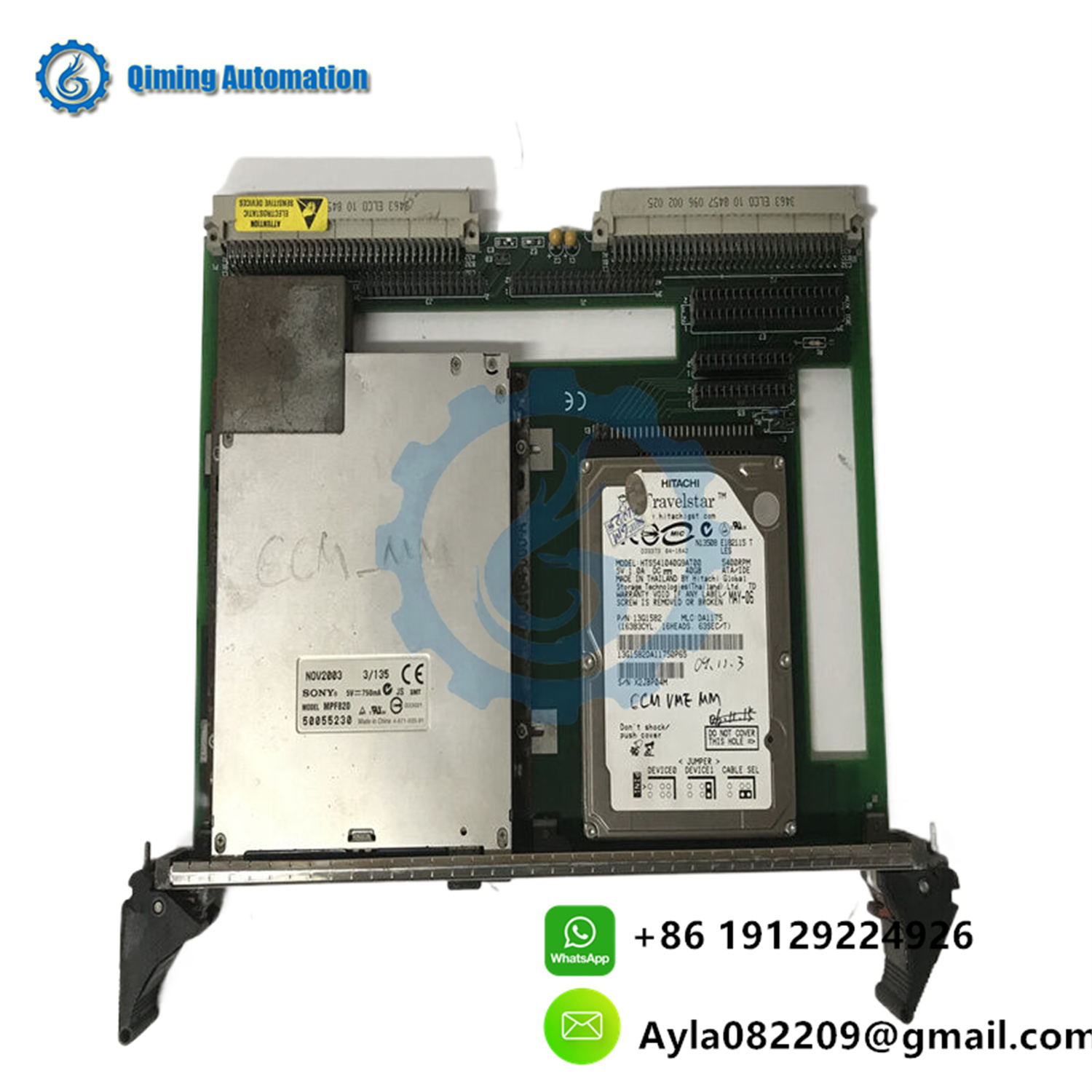

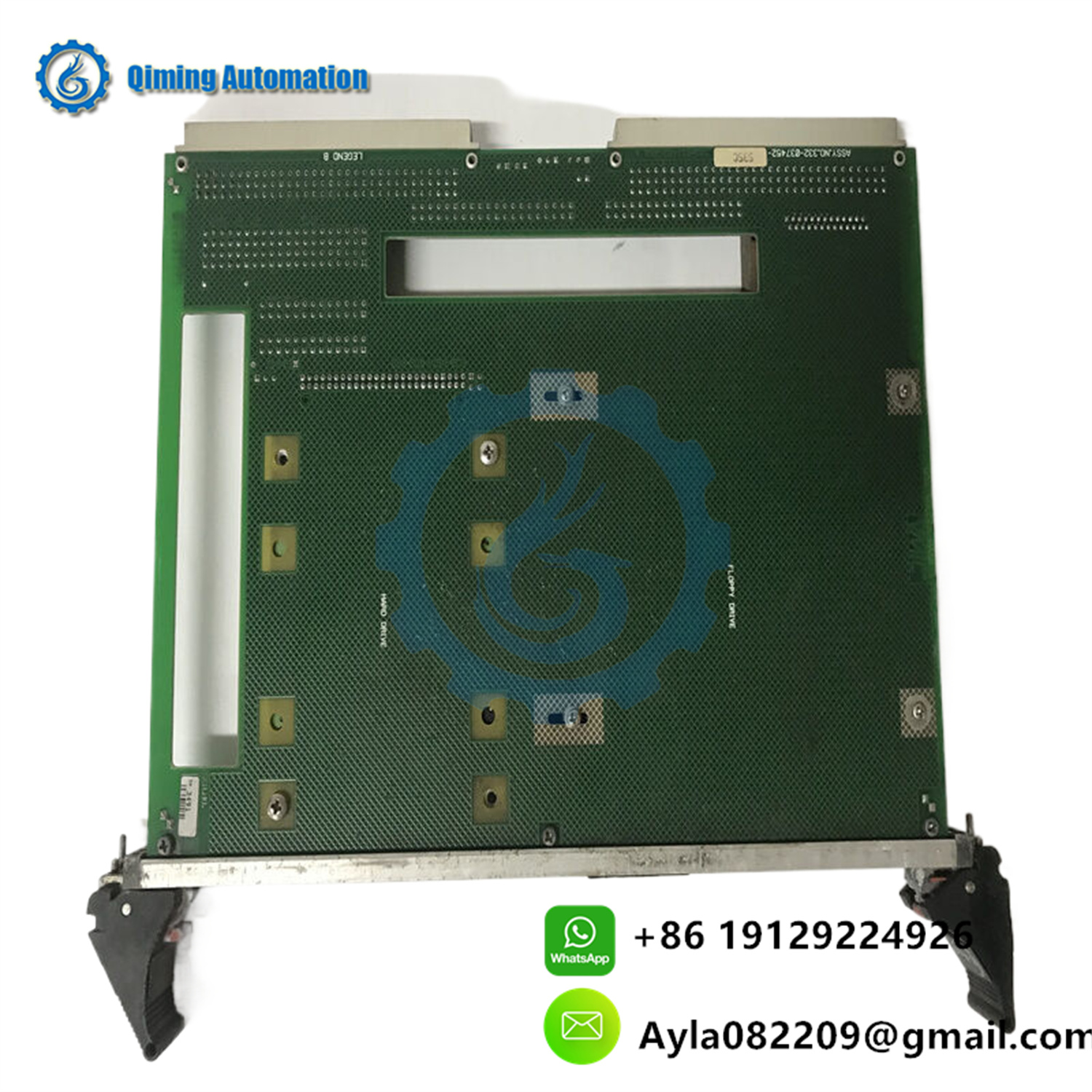

GE VMIVME-7452 is a powerful and high-performance industrial controller module. The following is a detailed introduction to the product:
1、 Product positioning and application
The GE VMIVME-7452 controller module is commonly used in industrial automation and control systems. It adopts a modular design, integrating components such as controllers, drivers, sensors, etc., suitable for various complex control and monitoring tasks.
2、 Technical features and functions
High speed data processing:
VMIVME-7452 adopts a high-speed processor and advanced data processing technology, which can achieve fast and accurate data processing and computing capabilities.
This high-speed data processing capability enables the module to meet various complex industrial automation and control system requirements.
Multi axis control:
This module supports multi axis control function and can simultaneously control the movement of multiple axes.
Realize high-precision position, velocity, and acceleration control, suitable for industrial automation scenarios that require precise control.
Integrated control:
VMIVME-7452 integrates components such as controllers, drivers, sensors, etc. into one module, simplifying the wiring and connections of the system.
This integrated design improves the reliability and stability of the system, and reduces maintenance costs.
Modular design:
This module adopts a modular design, which facilitates users to customize and expand according to their actual needs.
Improved the flexibility and maintainability of the system, allowing users to freely combine and configure according to specific application scenarios.
Easy to program and debug:
VMIVME-7452 provides a user-friendly interface and development tools that facilitate programming, debugging, and troubleshooting for users.
This ease of use makes it easier for users to develop and maintain the system.
High reliability:
This module uses high-quality materials and manufacturing processes to ensure stable operation in harsh working environments.
It has a longer service life and lower maintenance costs, providing users with a better user experience.
Storage function:
VMIVME-7452 not only serves as a controller module, but also has storage functionality.
It can accommodate a floppy drive, a hard drive, and even an optional flash drive to meet users' different storage needs.
Flash drives have high data transfer rates, short time from sleep to write or read, fast reset to ready time, and excellent performance.
3、 Specification parameters
Here are some key specification parameters (which may vary depending on the specific model):
Physical dimensions: Standard VME dual high Eurocard (one slot), measuring 160 x 233.25 x 20.32 millimeters.
User connector: 34 pin floppy drive and 40 pin IDE interface.
Environmental temperature:
Working temperature: 5 to 50 ℃
Storage temperature: -25 to 60 ℃
Humidity requirement: 20% to 80%, maximum wet bulb temperature of 29 ℃.
Power requirements:
DC input voltage: 5 V ± 10% and 3.3 V ± 5%.
Power consumption: 200 µ A (3.3 V) or 500 µ A (5.0 V) in sleep mode; Read from 32 to 80 mA (3.3 V) or 46 to 120 mA (5.0 V).
4、 Application scenarios and advantages
GE VMIVME-7452 plays an important role in industrial automation and control systems due to its versatility, high precision, and high reliability. It has a wide range of application scenarios, including but not limited to:
Mechanical manufacturing: used to control the movement and position of mechanical equipment, achieving automated production.
Process control: Used in industries such as chemical and petroleum to ensure the stability and safety of the production process.
Data collection and monitoring: Real time collection and monitoring of the operating status and parameters of equipment to provide accurate data support for users.
Its advantages are mainly reflected in the following aspects:
High integration: It integrates components such as controllers, drivers, sensors, etc., simplifying the system structure.
Excellent performance: The high-speed data processing capability and multi axis control function make the system more efficient and accurate.
Easy to expand and maintain: Modular design facilitates users to customize and expand according to their needs, reducing maintenance costs.
