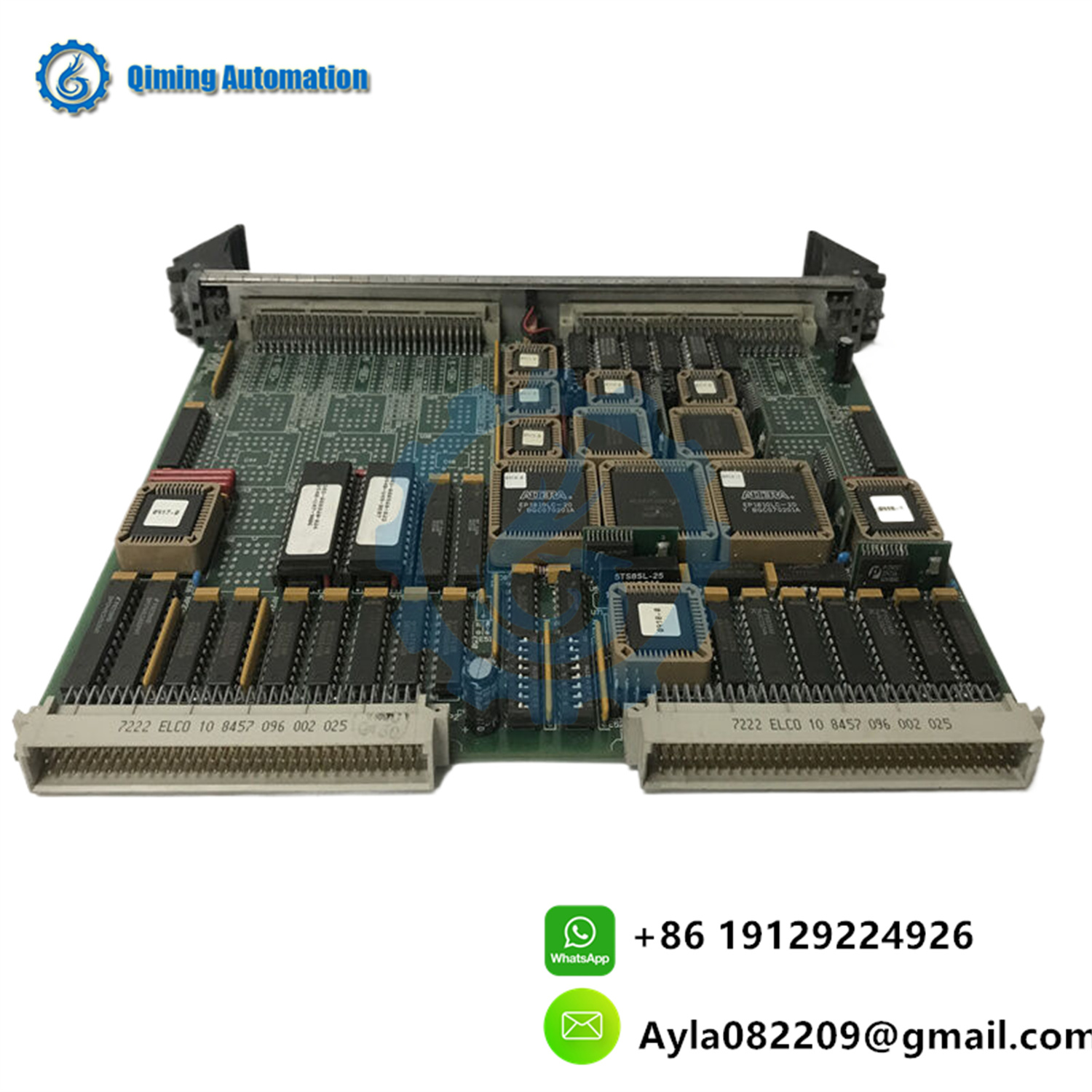

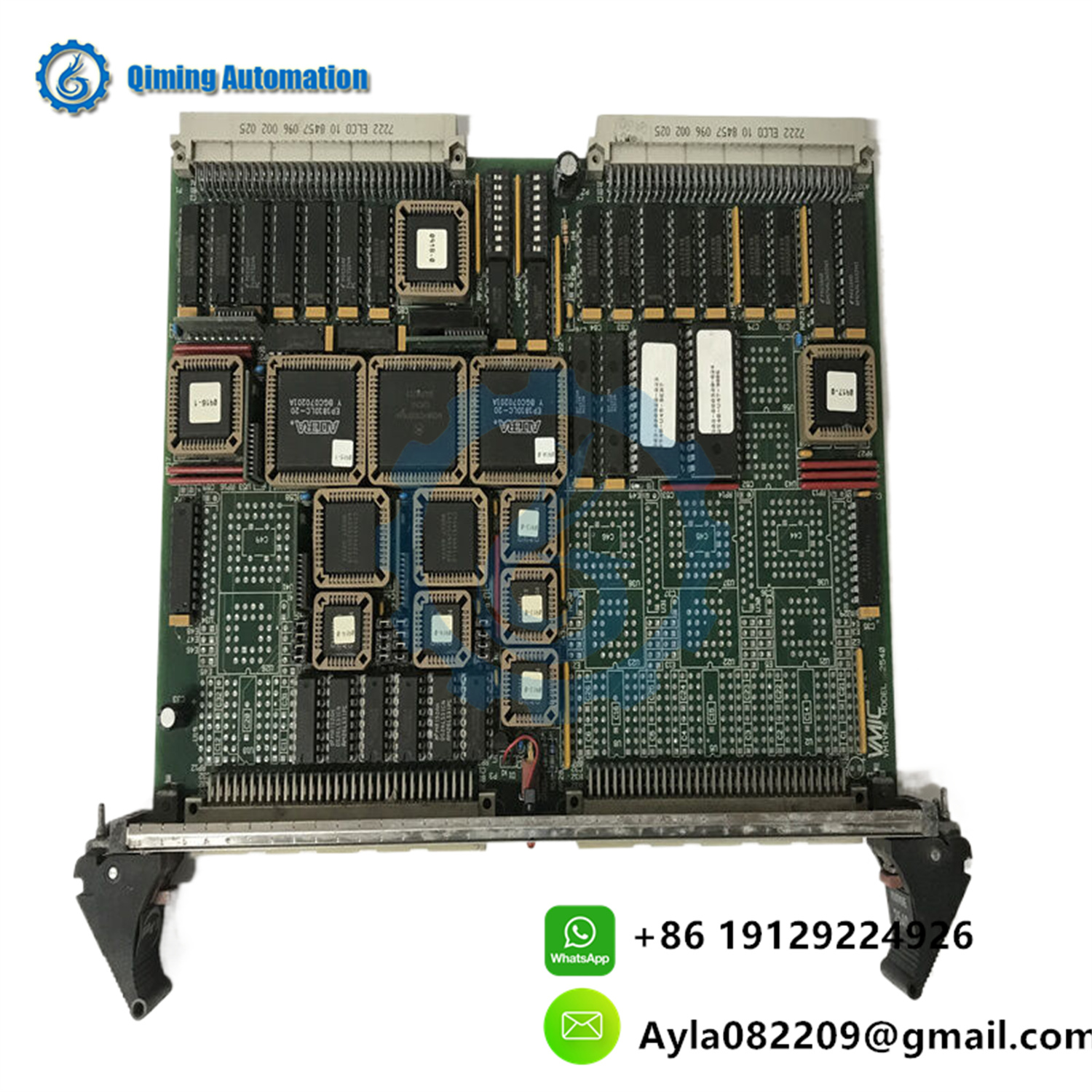

GE VMIVME-2540 is an intelligent counter/controller produced by General Electric (GE). The following is a detailed introduction to the product:
1、 Product positioning and application
VMIVME-2540 is a VME bus intelligent counter/controller designed to provide high-precision digital measurement and function generation capabilities for VME bus systems. It is widely used in fields such as rotary axis instruments, automotive testing, medical, robotics, telescopes/observatories, elevators, bridge cranes, and scenarios that require linear position measurement, such as distance, velocity, and acceleration measurement.
2、 Technical features and functions
High precision measurement and generation:
VMIVME-2540 supports functions such as event counting, frequency measurement, and cycle/pulse width measurement, with high accuracy and stability.
At the same time, it also supports functions such as pulse sequence/square wave generation, timer/cycle interrupt generation, etc., to meet various control requirements.
Multi channel design:
This product provides up to 24 control/measurement interfaces, including 24 clocks, 24 gates, and 24 outputs, making it easy for users to configure and expand according to their actual needs.
High performance processor:
The VMIVME-2540 is equipped with a high-performance processor (such as an onboard 15 MHz 68HC000 CPU) that can handle real-time control tasks such as data acquisition and signal processing.
Programmability:
Users can configure measurement, timing, and output functions for each channel through a simple memory mapping interface, which consists of commands, command states, parameters, and returned measurement values.
This programmability enables VMIVME-2540 to adapt to different control logics and application requirements.
Flexible interface and compatibility:
VMIVME-2540 has a flexible interface design that supports RS-422 differential interface and single ended TTL input.
It is also compatible with ANSI/IEEE standard 754-1985 for 32-bit floating-point operations, as well as standards such as ANSI/IEEE 1014-1987 IEC 821 and 297, ensuring compatibility with other devices.
Orthogonal position measurement and control:
This product supports orthogonal position measurement, with sine/cosine frequencies up to 1 MHz, a 32-bit counter, and limit/modulus checking functions.
At the same time, it also supports orthogonal position control output, with ± 1/4 wave control resolution and a maximum step rate of 1.25 MHz.
3、 Specification parameters
Here are some key specification parameters:
Event Count: Up to 4 giga events.
Frequency measurement range: 1.16 x 10 ^ -3 Hz to 2.5 MHz.
Cycle/pulse width measurement range: 400 ns to 8.5899 x 10 ^ 6 s (32-bit floating-point number), 400 ns to 858 s (32-bit unsigned integer).
Square wave/pulse train generation range: 0.0076 Hz to 2.5 MHz.
Timer/Periodic VME Bus Interrupter Range: 0.0076 to 1000 Hz.
4、 Application scenarios and advantages
The application scenarios of GE VMIVME-2540 are extensive, including but not limited to:
In industrial automation systems, it is used to control various equipment, machinery, and processes to ensure the stability and efficiency of the production line.
In measurement and testing systems, it is used for high-precision counting and measurement, processing and analyzing input signals.
Used for data collection and processing in applications that require the collection of large amounts of data and real-time processing.
