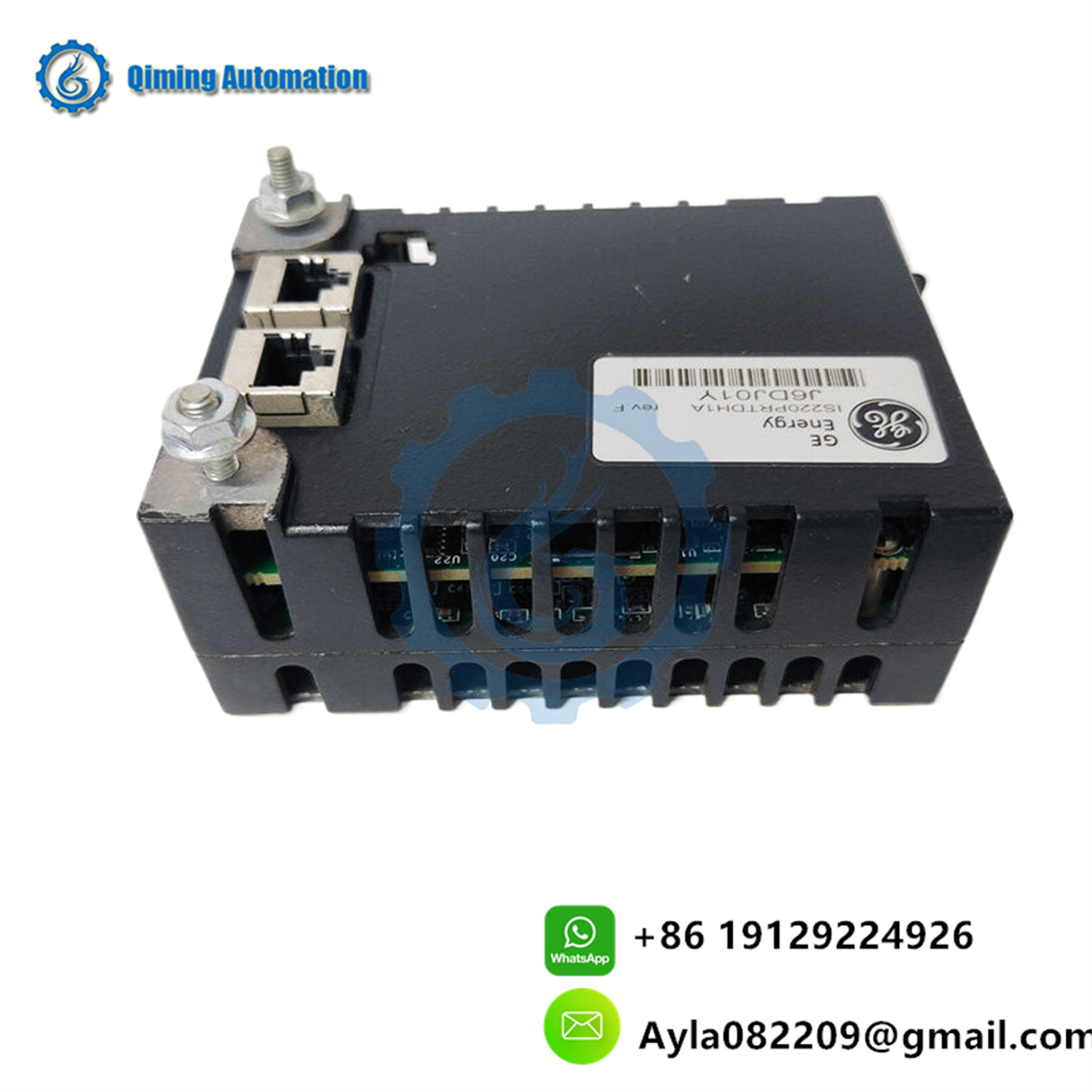

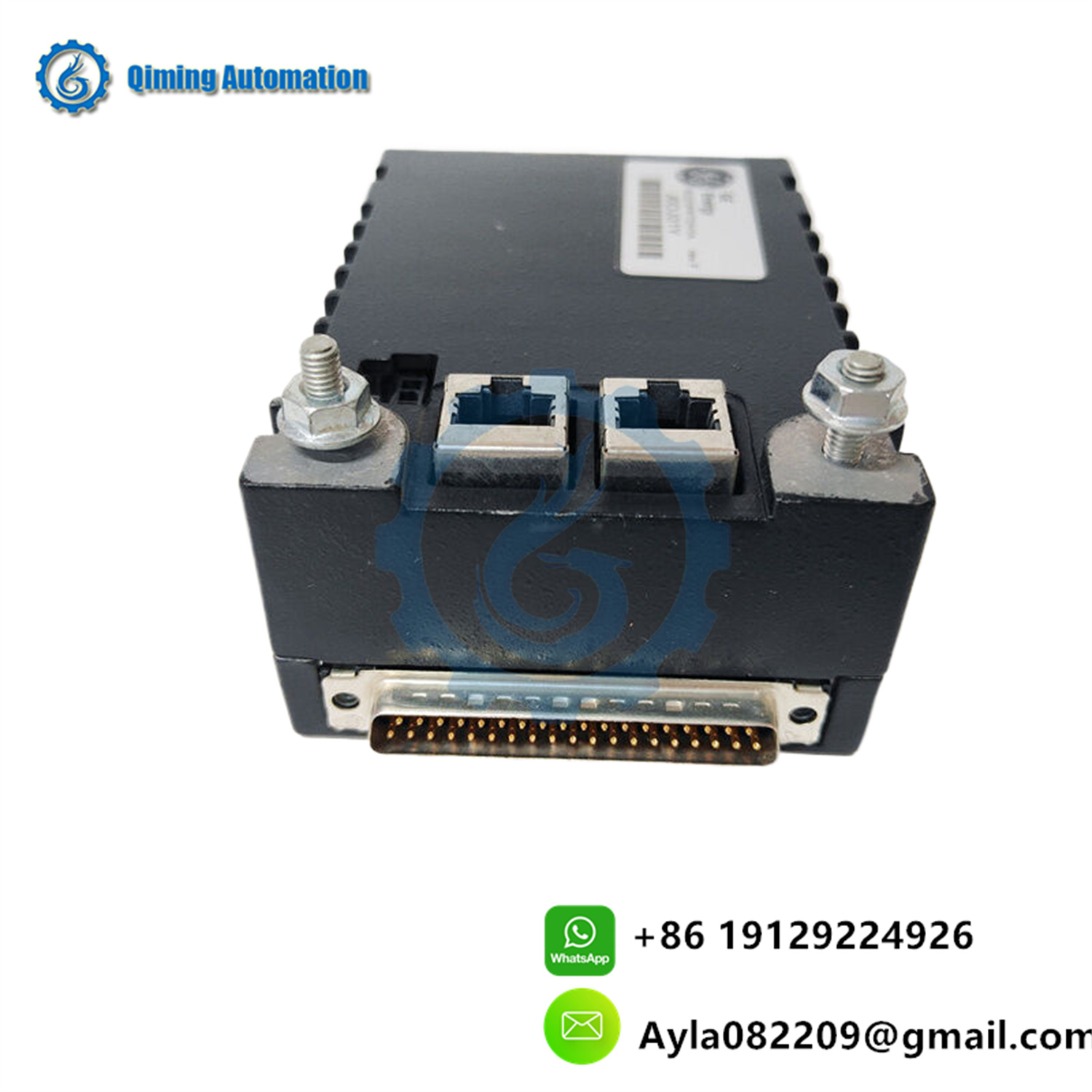

GE IS220PRTDH1A 336A4940CSP6 is an input module for resistance temperature equipment manufactured by General Electric (GE). The following is a detailed introduction to it:
1、 Basic attributes
Part number: IS220PRTDH1A 336A4940CSP6
Manufacturer: General Electric (GE)
Series: Mark VIe
Product type: Input module
2、 Technical specifications
Number of channels: 8 RTD (resistance temperature detector) channels
A/D converter resolution: 14 bits
Common mode voltage range: ± 5 volts
Maximum lead resistance: 15 Ω maximum
3、 Function and Features
High precision measurement: This module has high-precision measurement performance and can accurately measure the resistance value of resistance temperature equipment, thereby achieving precise temperature measurement.
Good stability: IS220PRTDH1A 336A4940CSP6 can maintain reliable measurement performance in various environments, ensuring data stability and accuracy.
Wide measurement range: This module has a wide measurement range and can adapt to resistance temperature devices with different resistance values, meeting various measurement needs.
Easy to install: The module design makes the installation process simple and convenient, and can be easily integrated into various systems.
Strong compatibility: IS220PRTDH1A 336A4940CSP6 has good compatibility with various types of PLCs (programmable logic controllers) and control systems, making it easy to integrate and control with existing systems.
High reliability: The design and manufacturing process of this module are strictly reliable, ensuring a long service life and stable operation, suitable for various industrial application scenarios.
4、 Application scenarios
The GE IS220PRTDH1A 336A4940CSP6 resistance temperature equipment input module is suitable for various industrial application scenarios, such as manufacturing, power, water treatment, oil and gas, and other fields. It can be used to monitor and control temperature parameters in various devices, ensuring their normal operation and safety.
5、 Usage and maintenance
Installation: During installation, please ensure compliance with relevant safety regulations and operating manuals, and ensure that the modules are properly connected and secured.
Configuration: Configure the module according to actual needs, including setting input range, output range, alarm conditions and other parameters.
Maintenance: Regularly inspect and maintain the module, including cleaning, fastening connectors, and other operations to ensure its normal operation and reliability.
Fault handling: If you encounter module faults or abnormal situations, please contact the supplier or professional technical personnel in a timely manner for handling.
In summary, GE IS220PRTDH1A 336A4940CSP6 is a high-precision, stable, reliable, easy to install and use input module for resistance temperature equipment, suitable for precise measurement and control of resistance temperature equipment in various industrial application scenarios.
