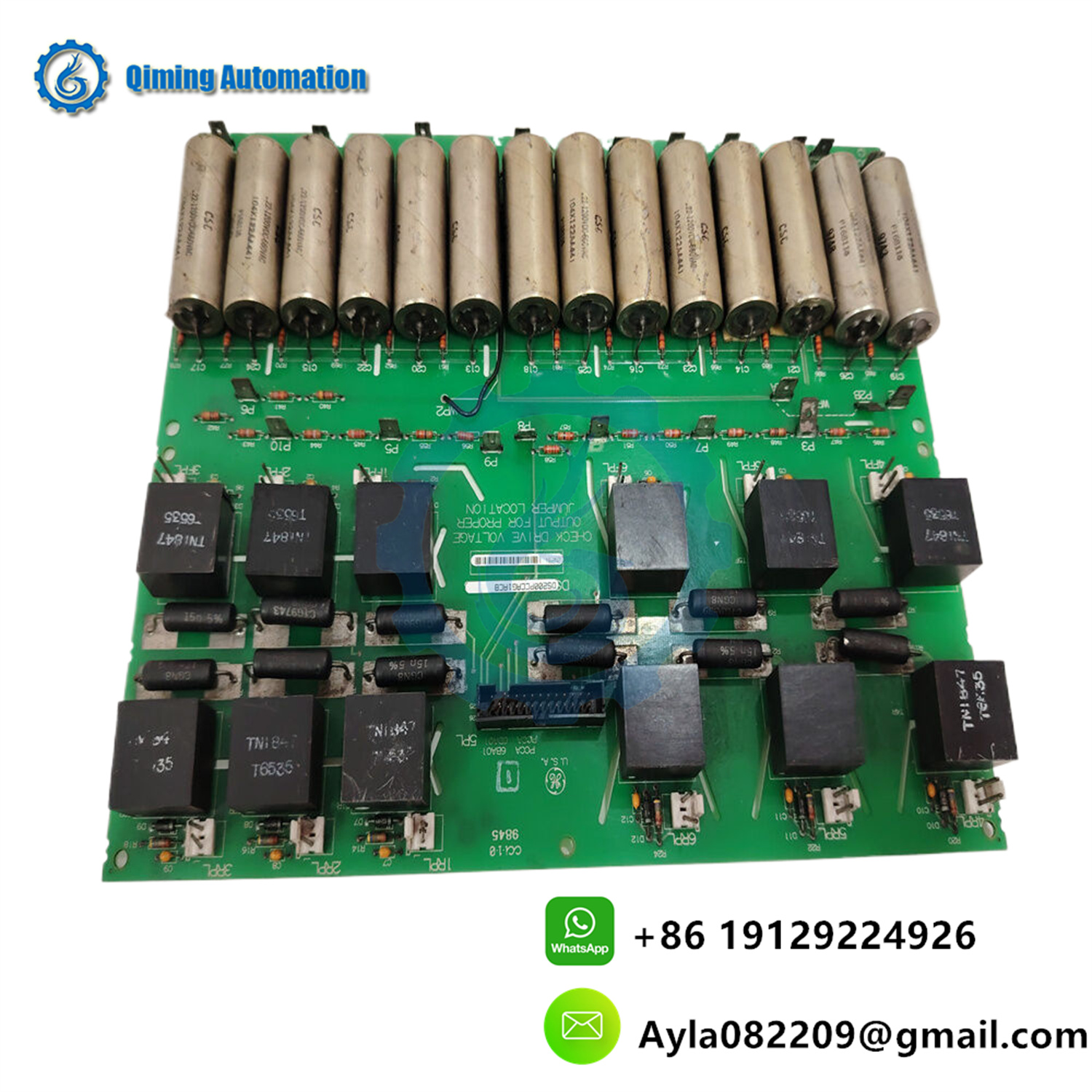

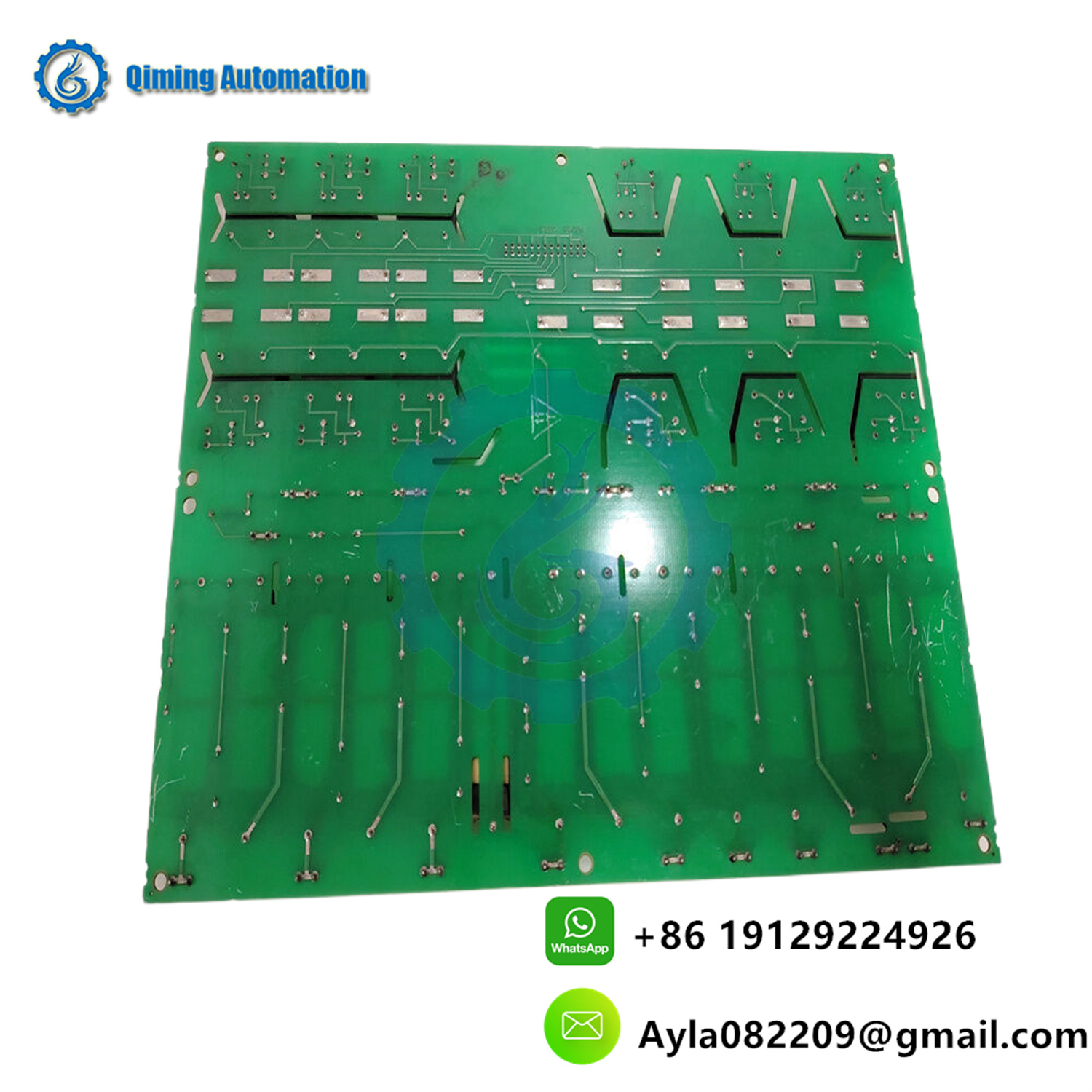

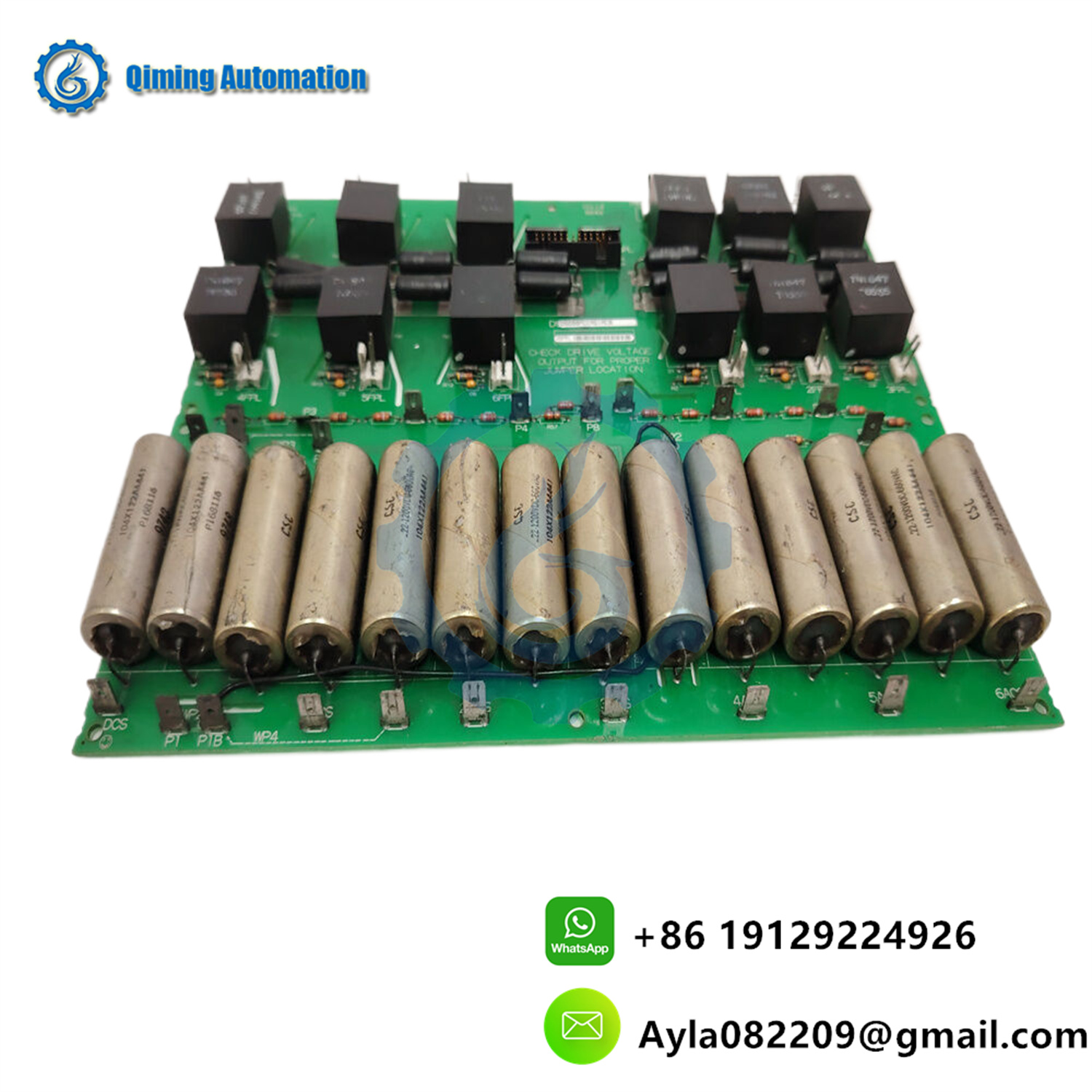

The GE DS200PCCAG1ACB is a power connection card developed by General Electric (GE) and is part of the EX2000 system. The following is a detailed introduction about GE DS200PCCAG1ACB:

1、 Main functions and features

Key component: DS200PCCAG1ACB plays a crucial role in the complex design of the drive system, serving as an intermediary between the drive control circuit and the SCR (silicon controlled rectifier) power bridge, ensuring seamless integration and efficient operation of the drive.

Gate Drive: This card utilizes a pulse transformer to provide necessary gate drive for the SCR power bridge, which helps regulate the triggering sequence and control of the SCR, thereby effectively managing the power flow in the system.

Buffer circuit: For low to medium power controllers, DS200PCCAG1ACB incorporates buffer circuits to manage and control voltage spikes at various critical points within the system, particularly on AC lines, DC buses, and gate drivers.

Configurable jumpers: Users can customize specific settings and connections through configurable jumpers according to the requirements of the drive system, to adapt to different system configurations and operational needs.

2、 Technical specifications

Power supply voltage: usually 220V, but other voltage ranges are also supported, depending on the application scenario.

Memory: Has a certain amount of system memory (although the specific capacity may vary depending on different batches or models).

Communication Interface: Supports standard communication interfaces such as RS232 for data exchange and communication with other systems.

Working environment temperature: Suitable for a working environment temperature range of -20 to 100 ℃.

3、 Application scenarios

Due to its high performance and reliability, GE DS200PCCAG1ACB is widely used in various industrial equipment and systems, especially in situations where precise control of power flow is required. It ensures the efficient operation of the drive and the stability of the system, and is an important component of industrial automation and control systems.
