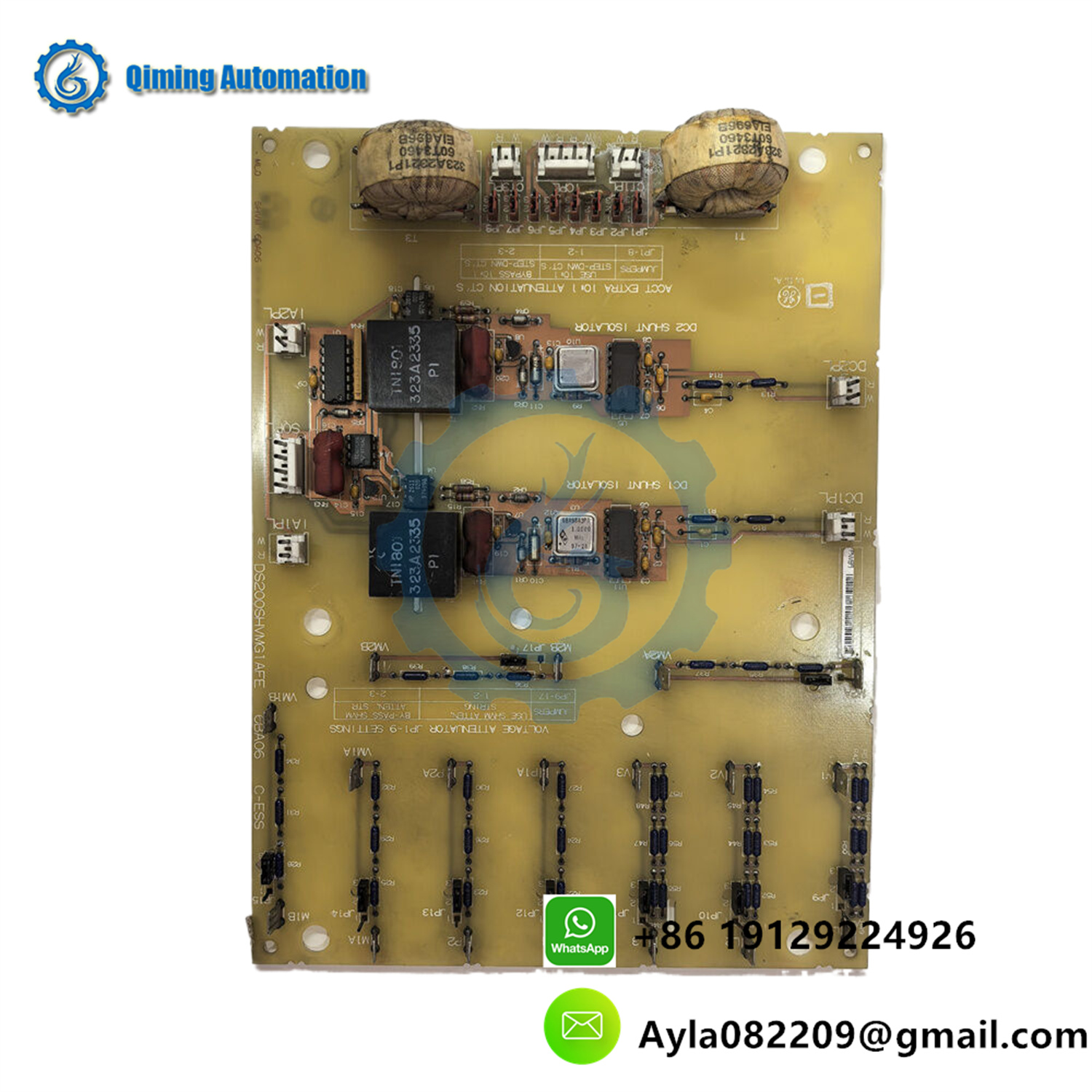

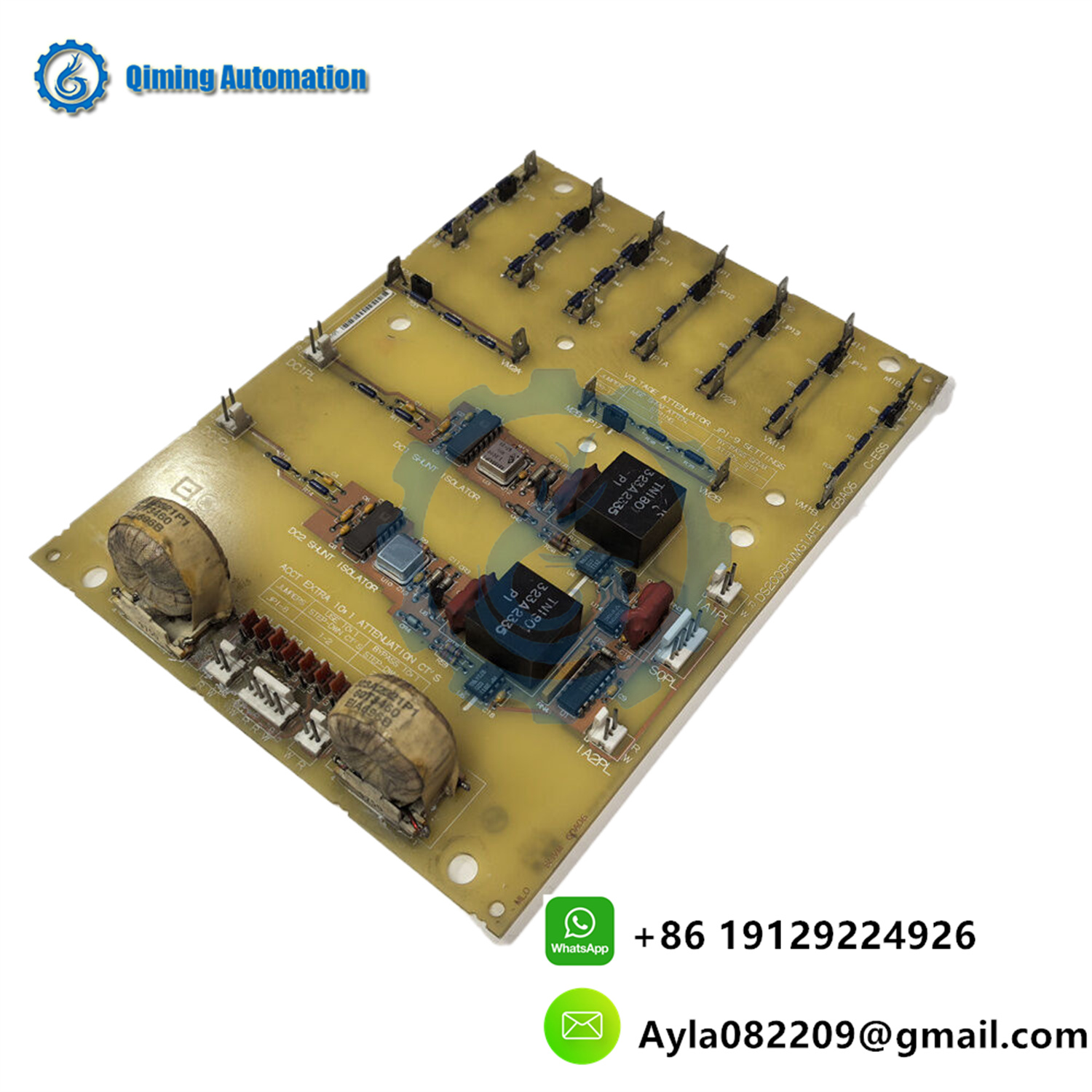

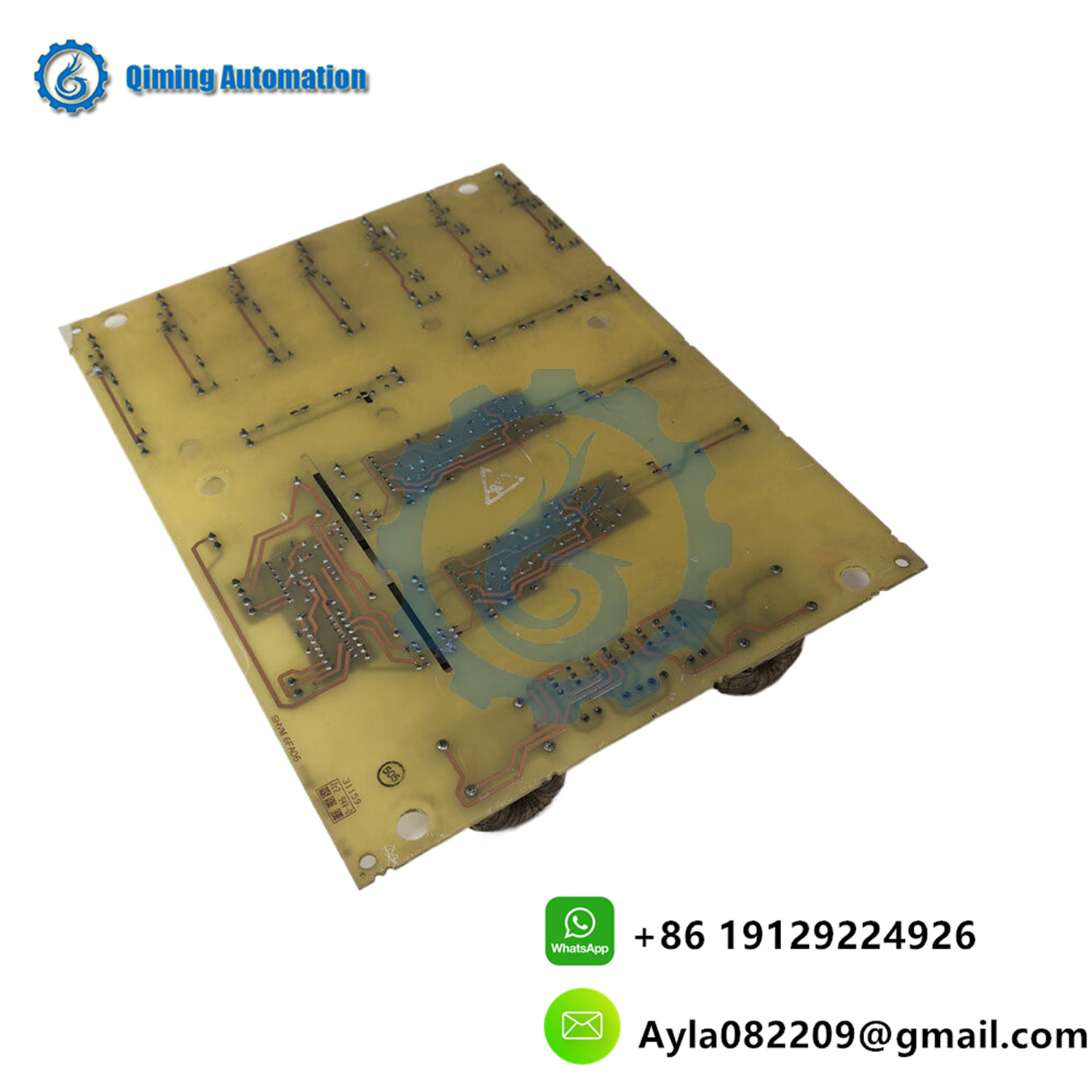

GE DS200SHVMG1AFE is an advanced control module launched by GE (General Electric). The following is a detailed introduction to it:

1、 Basic Information

Brand: GE/General Electric

model: DS200SHVMG1AFE

Function: Motor control

2、 Technical specifications

Input voltage: AC 115~230V

Input frequency: 47~63Hz

AC efficiency: ≥ 75%

DC input voltage: 12V/24V

DC efficiency: ≥ 70%

Voltage withstand strength input grounding: 1800Vac for 1 second

Input variation stability: ± 1% (typical value)

Output load stability: ± 5% (typical value)

Working/storage temperature: 0 ℃~50 ℃ (working)/-40 ℃~65 ℃ (storage)

Maintenance time: ≥ 18mS

P/G signal delay: Power on 100~500mS； off>1mS

MTBF: 100K Hrs (typical value, at 25 ℃)

Electromagnetic compatibility: EN55022 class A，EN55024

Safety regulations: EN60950； CE LVD

Dimensions: Width 150mm x Depth 140mm x Height 86mm

Cooling method: Use 80mm x 80mm fan for heat dissipation

3、 Main functions

Control mode: Provides two modes of speed control and torque control to adapt to different application scenarios.

Speed regulation range: With a speed regulation range of 1:1000, it meets the speed regulation requirements under various working conditions.

Control accuracy: Speed control accuracy ≤ 0.5%, torque control accuracy ≤ 3%, ensuring precise control effect.

Protection function: Built in multiple protection functions such as overcurrent, overvoltage, undervoltage, overheating, and short circuit to ensure the safe operation of the equipment.

Communication function: Supports RS485 communication interface and Modbus RTU protocol, facilitating data exchange and monitoring with the upper computer system.

4、 Application Fields

The GE DS200SHVMG1AFE module is widely used in the following fields:

Manufacturing industry: used in mechanical manufacturing, automated production lines, and other scenarios to precisely control the speed and torque of motors and improve production efficiency.

Power industry: In the field of motor control in the power system, it is used to ensure the stability and safety of motor operation.

Petrochemical industry: In the automation control of petrochemical equipment, reliable speed and torque control are provided to reduce energy consumption and maintenance costs.

Other fields: such as metallurgy, textiles, papermaking, and other industrial fields that require precise control of motor speed and torque.

5、 Product advantages

High precision: The speed control accuracy and torque control accuracy are high, meeting the application scenarios with strict requirements for control accuracy.

Good stability: It can operate stably in various industrial environments and has strong anti-interference ability.

Easy to integrate: Supports multiple communication protocols and interfaces, making it convenient to integrate with other devices and systems.

Complete protection function: Built in multiple protection functions to ensure the safe operation and extend the service life of the equipment.
