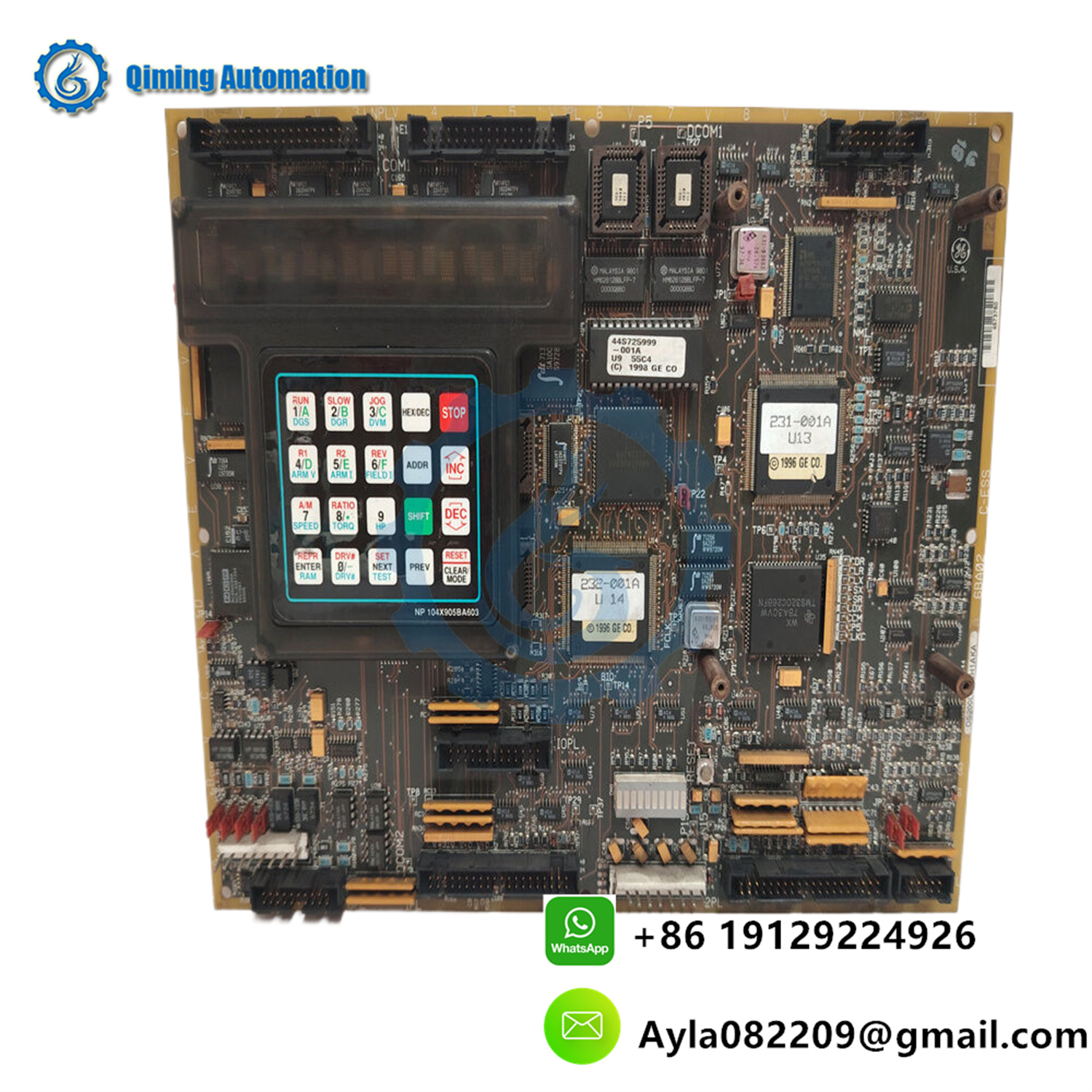

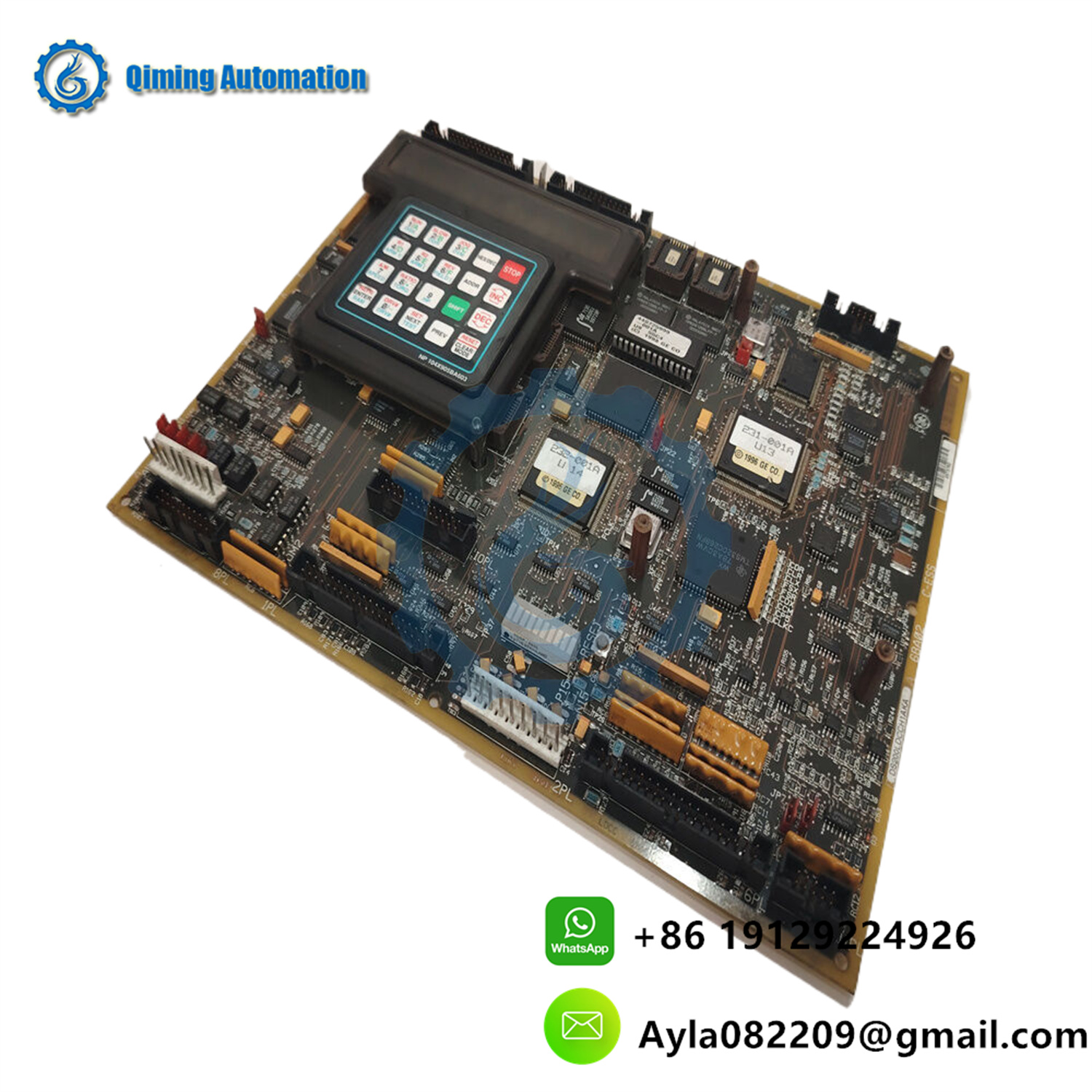

GE's DS200LDCCH1AKA is a digital expansion module. The following is a detailed introduction to the module:

1、 Basic Information

Brand: GE/General Electric

model: DS200LDCCH1AKA

Purpose: Digital expansion

Origin: United States (some merchants claim to provide the product and indicate that it is not imported)

Weight: 1.29kg

2、 Technical specifications

Operation control mode: Running through stored program cycles

I/O control method: Batch processing method (when executing END instruction), I/O instruction can refresh

Operation processing time:

Basic instruction: 0.55 to 0.7 microseconds (μ s)

Application instructions: 3.7 to several hundred microseconds (μ s)

Programming language: Logic ladder diagram and instruction list, using step ladder diagram can generate SFC type programs

Program capacity: Built in 2K step EEPROM storage box (optional FX1n-EEPROM 8L)

Number of instructions:

Basic sequence instructions: 27

Step ladder instructions: 2

Application instructions: 85 (up to 167 application instructions can be used, including all changes)

I/O configuration: The total I/O is set by the main processing unit

Auxiliary relay (M coil):

General: 384 points (M0 to M383)

Locked: 128 points (subsystems, M384 to M511)

Special: 256 points (M8000 to M8255)

Status relay (S coil):

General: 128 points (S0 to S127)

Initial: 10 o'clock (subsystem, S0 to S9)

Timer (T):

100 millisecond range: 0 to 3276.7 seconds, 63 points (T0 to T55)

10 millisecond range: 0 to 327.67 seconds, 31 points (T32 to T62, when special M coil is working)

1 millisecond range: 0.001 to 32.767 seconds, 1 point (T63)

Counter (C):

General range: 1 to 32767 numbers, 16 points (C0 to C15), type: 16 bit up counter

Lock range: 1 to 32767 numbers, 16 points (C16 to C31), type: 16 bit up counter

3、 Product Features

This module is designed to expand the digital input and output capabilities in industrial automation systems.

High performance, high reliability, suitable for various industrial environments.

Provide a rich instruction set and programming functionality to facilitate users in implementing complex control logic.

Easy to integrate into existing GE automation systems, reducing the difficulty and cost of system integration.

4、 Application Fields

The DS200LDCCH1AKA module is suitable for various industrial automation fields, such as power, petroleum, chemical, metallurgical, textile, etc., and can be used to control various mechanical equipment and production processes.
