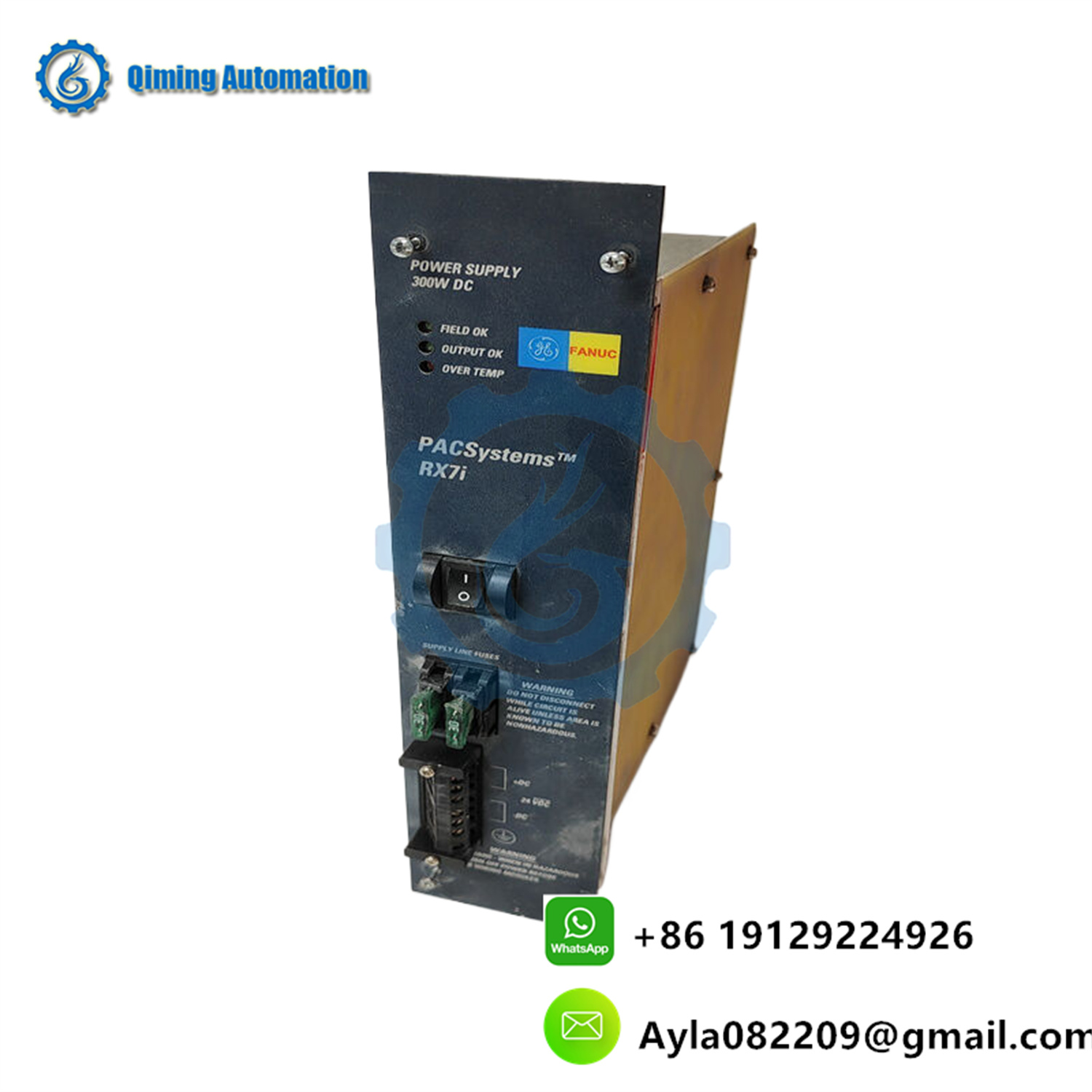

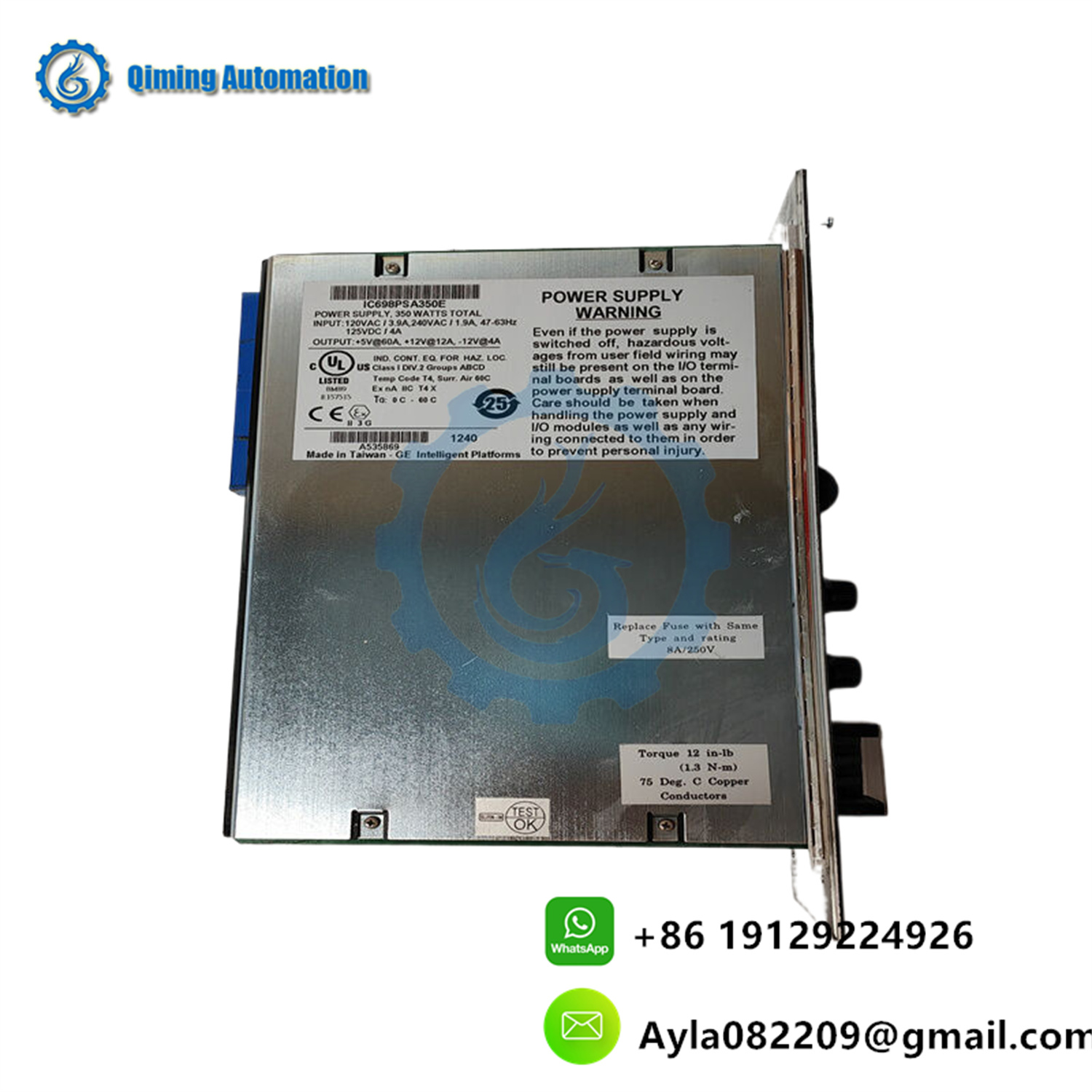

Within 3 days after paymentGE IC698PSA350 is a high-capacity power module belonging to the PACSystem RX7i platform. The following is a detailed introduction to the product:
1、 Product Overview
IC698PSA350 is a high-capacity power module for the PACSystem RX7i controller series, produced by GE Fanuc (now part of Emerson Automation). This power module is designed to provide backplane power and send logic level signals to the module through the backplane to ensure stable system operation.
2、 Technical specifications
Input voltage range:
AC: 85 to 264 volts (V), frequency 47 to 63 hertz (Hz)
Direct Current (DC): 100 to 150V
Input power:
Typical value: 440 watts (W)
Maximum value: 500W
Output voltage and current:
+5VDC: Maximum output current of 60 amperes (A)
+12VDC: Maximum output current is 12A
-12VDC: Maximum output current is 4A
Maximum output power: The maximum output power of all three outputs is 350W.
Rated voltage: 120/240 VAC and 125 VDC.
Operating frequency: 47 to 63 Hz.
Working temperature range: 0 to 60 degrees Celsius (° C).
3、 Function and Features
Built in protection circuit:
Overheating protection
Overvoltage protection
Overcurrent protection
Electronic short circuit protection
Airflow protection
LED status indicator light:
On site confirmation "LED indicator light
Output confirmation LED indicator light
Over temperature "LED indicator light
These indicator lights help identify the operating status of the module and provide warnings when problems occur.
Modular design:
Adopting modular design for easy installation and maintenance.
It can slide perfectly into the slot of the RX7i system mainframe, especially it can only be installed in slot 0 of the RX7i rack.
Power output stability:
When the input power loses one cycle of the AC input line, the output power can still be maintained.
Other features:
Equipped with AC operation power factor correction.
Without the need for forced air cooling, a total output power of 100W can be achieved in ambient temperatures ranging from 0 to 60 ° C.
4、 Application scenarios
The IC698PSA350 power module is suitable for various industrial automation applications on the PACSystem RX7i platform, providing stable and reliable power support for the system.
5、 Precautions
During installation, the IC698PSA350 power module should not have any live power connections and should be properly grounded.
For on-site wiring, the input terminal is located on the front of the module and can be connected to 120/240 VAC and 125 VDC input voltage sources. The terminal can be connected to solid wire or twisted wire.
The grounding terminal or GND should be connected to the GND terminal of the rack using a 12 AWG wire.
During normal operation, the ambient temperature in the installation area should not exceed 60 ° C.
In summary, GE IC698PSA350 is a powerful, stable, and reliable high-capacity power module suitable for industrial automation applications on the PACSystem RX7i platform.
