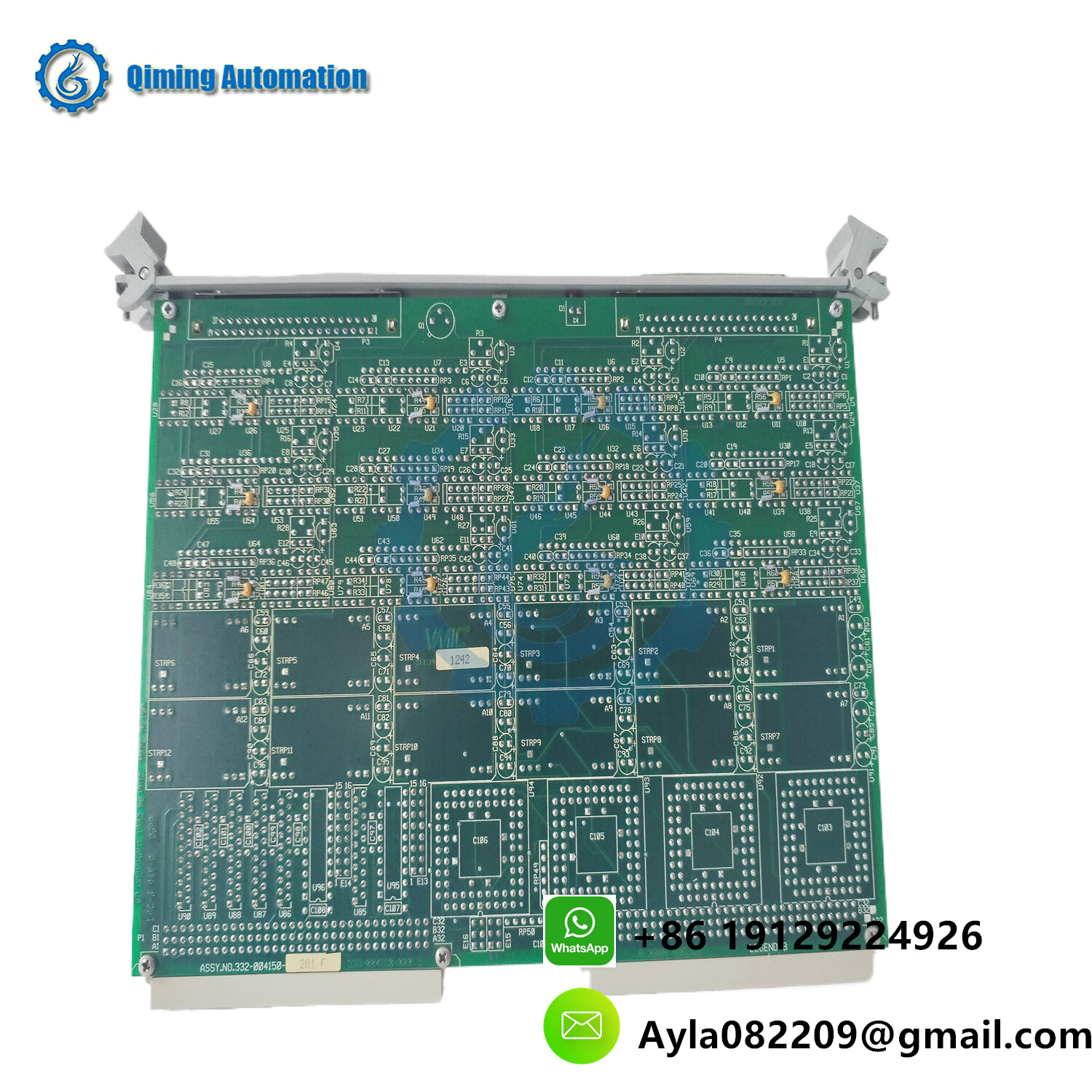

GE VMIVME-4150 is an analog output module manufactured by General Electric (GE) in the United States. The following is a detailed introduction to the product:

1、 Product Overview

The VMIVME-4150 module is designed for industrial automation, process control, automatic test equipment (ATE), monitoring systems, and high interference environments that require high-precision analog outputs. It offers multiple channel configurations (such as 4-channel, 8-channel, and 12 channel), with high isolation, high resolution, and multiple voltage and current output options.

2、 Main features

High precision output:

The voltage output accuracy is 0.05%, and the current circuit output accuracy is 0.08%.

High isolation:

Up to ± 1000V isolation ensures electrical isolation between channels and between channels and VMEbus.

Multiple output options:

The voltage output range can be selected as ± 2.5V, ± 5V, ± 10V; 0~+2.5V, 5V, 10V.

Can provide current loop outputs of 4 to 20mA, 0 to 20mA, or 5 to 25mA.

Powerful load capacity:

Within the range of ± 10V, it has a load capacity of 10mA.

The current circuit output has higher load capacity and is suitable for various load conditions.

Optical data coupling:

Provide complete galvanic isolation to ensure the stability and security of data transmission.

Easy to control:

Static read back data registers simplify program control and facilitate user monitoring and adjustment.

Flexible channel configuration:

Provide 4-channel, 8-channel, and 12 channel configurations to meet different application needs of users.

Front panel access:

The front panel design is convenient for users to manually operate and monitor.

Programmable connection/disconnection:

The voltage output operation is convenient and can be connected or disconnected through programming control.

3、 Application Fields

The VMIVME-4150 module is widely used in the following fields:

Industrial automation:

Used for analog signal output in various automation control systems.

Process control:

Used for precise control of process parameters in industries such as chemical, petrochemical, and power.

Automatic Test Equipment (ATE):

In the testing system, high-precision analog outputs are provided for testing and calibrating various devices.

monitoring system:

Used for analog signal acquisition and output in monitoring systems to ensure system stability and reliability.

High interference environment:

Provide stable analog output signals in high interference environments such as nuclear facilities and power stations.

4、 Summary

GE VMIVME-4150 is a high-performance, high-precision analog output module with multiple output options, high isolation, powerful load capacity, and flexible channel configuration. It is suitable for multiple fields and provides stable and reliable analog output solutions for various applications.
