GE VMIVME-1150 is a 64 bit optically coupled digital input board designed and optimized specifically for VME bus. The following is a detailed introduction to the product:

1、 Product Overview

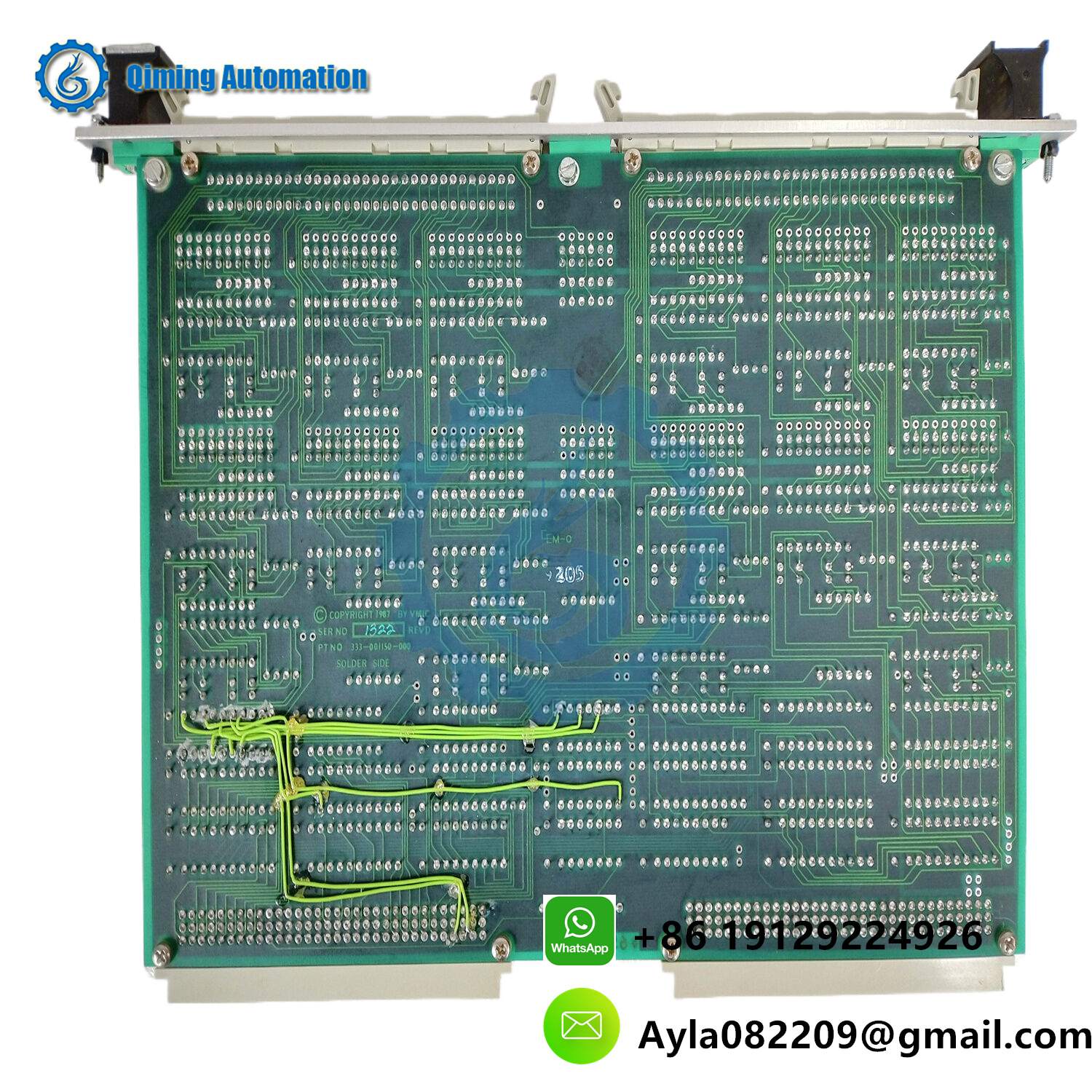

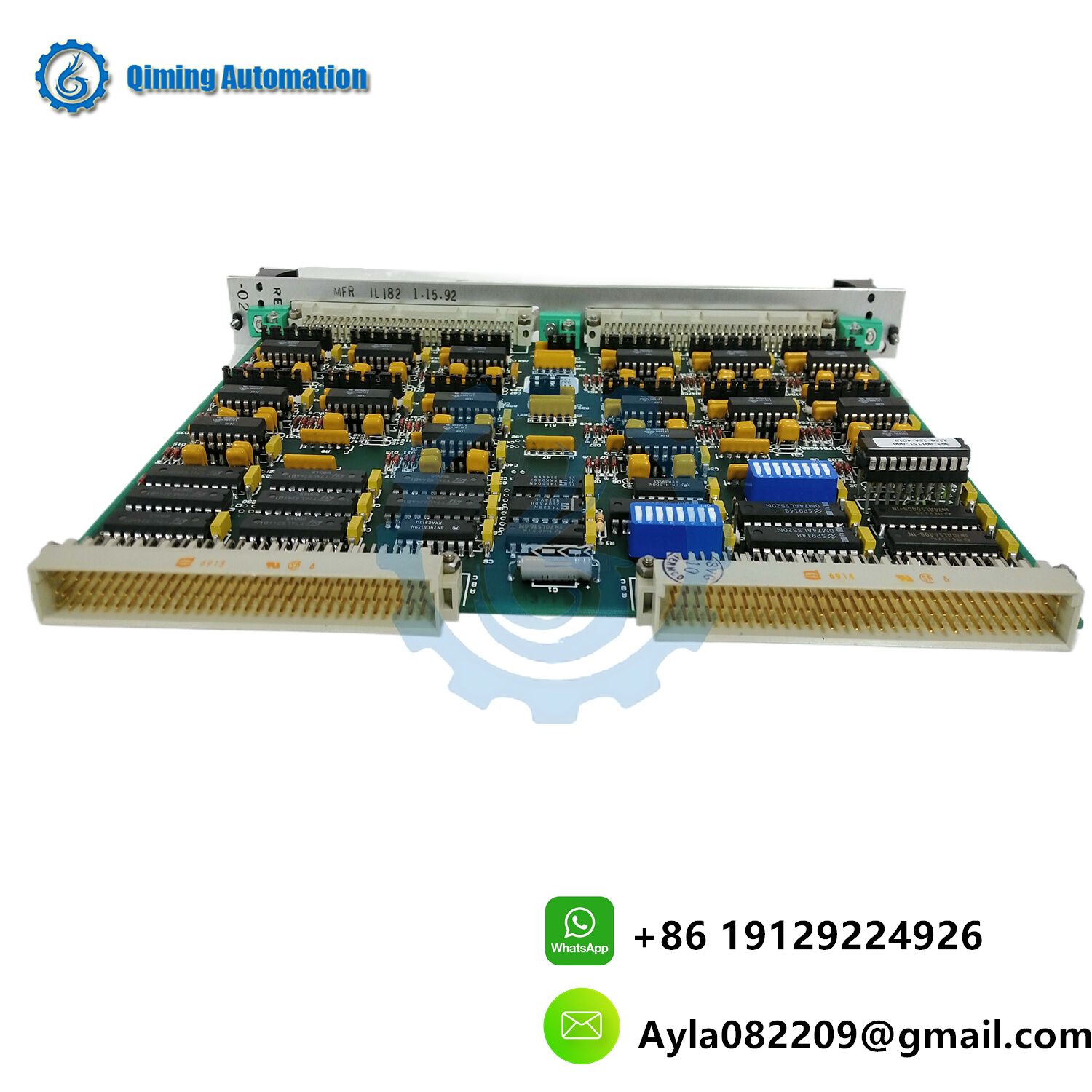

GE VMIVME-1150 is a standard dual height printed circuit board that features high isolation, flexibility, low cost, and high noise resistance. It provides 64 optically coupled digital input ports and supports 8-byte digital input ports, which can be arranged as eight consecutive 8-bit read-only registers for easy data reading and processing by users.

2、 Main features

High isolation:

VMIVME-1150 has a continuous voltage of 1000V and a pulse voltage isolation of 7500V, ensuring the stability and safety of the input signal.

Diversified input options:

Supports an input range of 5V to 48VDC, covering a wide range of industrial application requirements.

Providing voltage or current source input options, as well as positive or negative true input options, increases the flexibility of use.

Filter input options:

Equipped with filtering input function, it can effectively reduce the noise interference of input signals and improve the accuracy of data.

Dual I/O connectors:

Adopting a dual I/O connector design, it is convenient for users to connect and transfer data.

Contact closure sensing:

Support contact closure sensing function, which can detect the switch status of external devices.

High reliability:

Adopting industrial grade components and strict production processes to ensure stable operation even under high loads and harsh environments.

Providing high reliability DIN compatible input connectors increases the stability and safety of the connection.

Data transmission and access:

Supports 8-bit or 16 bit data transmission to meet different data transmission requirements.

Provide non privileged or regulated I/O access permissions to facilitate user access and control.

3、 Application Fields

GE VMIVME-1150 has broad application prospects in the field of industrial automation control due to its powerful data processing capabilities, diverse communication interfaces, and high reliability and stability. Specifically, it can be applied in the following fields:

manufacturing

As the core control unit in the production line control system, it realizes the automation control of the production process.

Energy sector:

Used for monitoring and managing power systems to improve energy efficiency and safety.

Transportation sector:

Used for signal control in rail transit to ensure the safety and smoothness of the transportation system.

Other fields:

It can also be applied in fields such as building automation, aerospace, and military equipment.

4、 Product specifications and parameters

Here are some of the main specifications and parameters of GE VMIVME-1150:

Number of input terminals: 64 optical coupled digital input terminals

Input range: 5V to 48VDC

Continuous voltage: 1000V

Pulse voltage: 7500V

Data transmission type: 8-bit or 16 bit

Access time: Maximum 250 nanoseconds

Circuit board size: standard double height printed circuit board size

Installation method: Supports DIN rail installation and panel installation (may vary depending on the specific model)

5、 Summary

GE VMIVME-1150 is a powerful and stable 64 bit optically coupled digital input board suitable for various industrial automation control fields. It has the characteristics of high isolation, diverse input options, filtering input function, and high reliability, which can meet the needs of users in different application scenarios. At the same time, it also supports multiple programming languages and development tools, making it convenient for users to customize programming and configuration.
