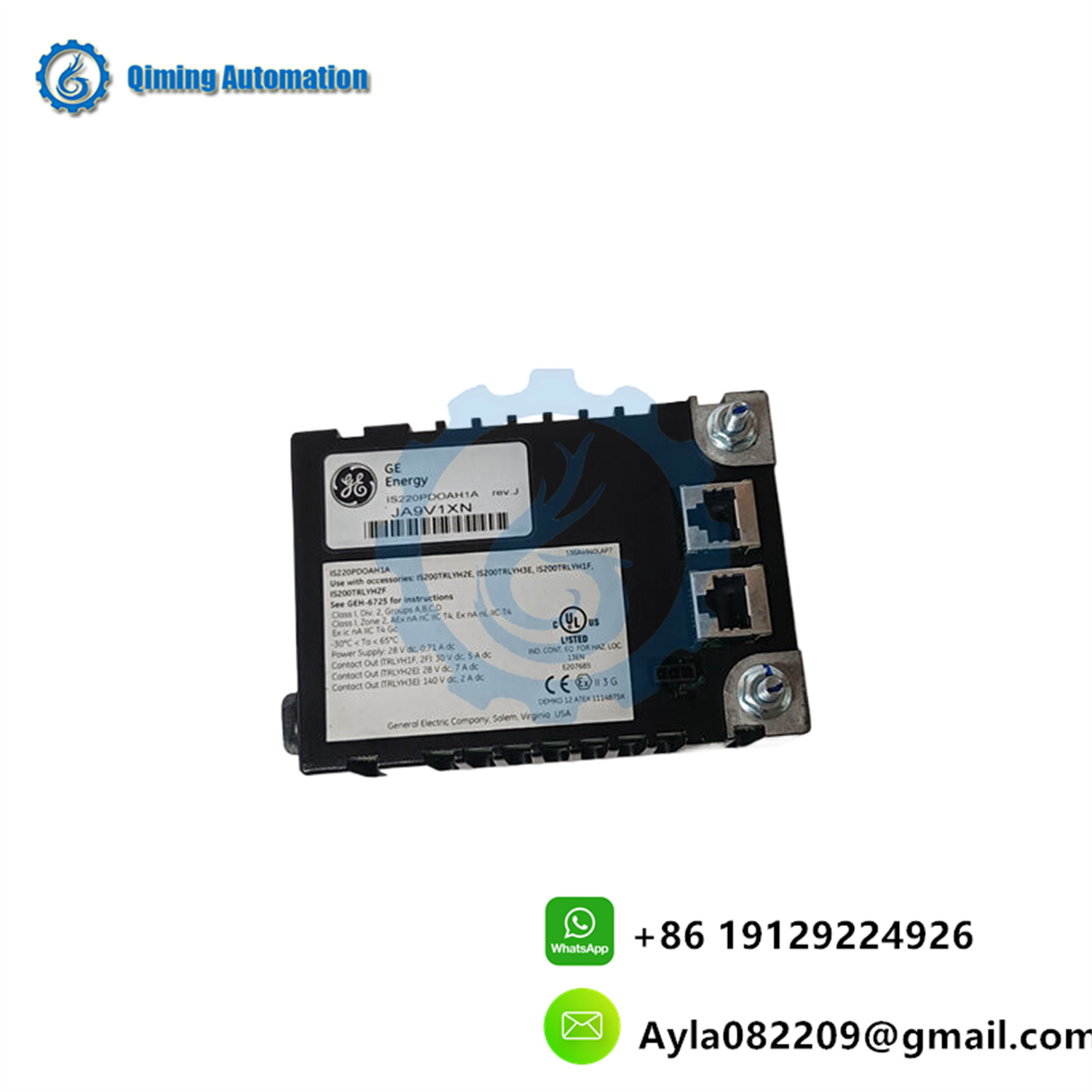

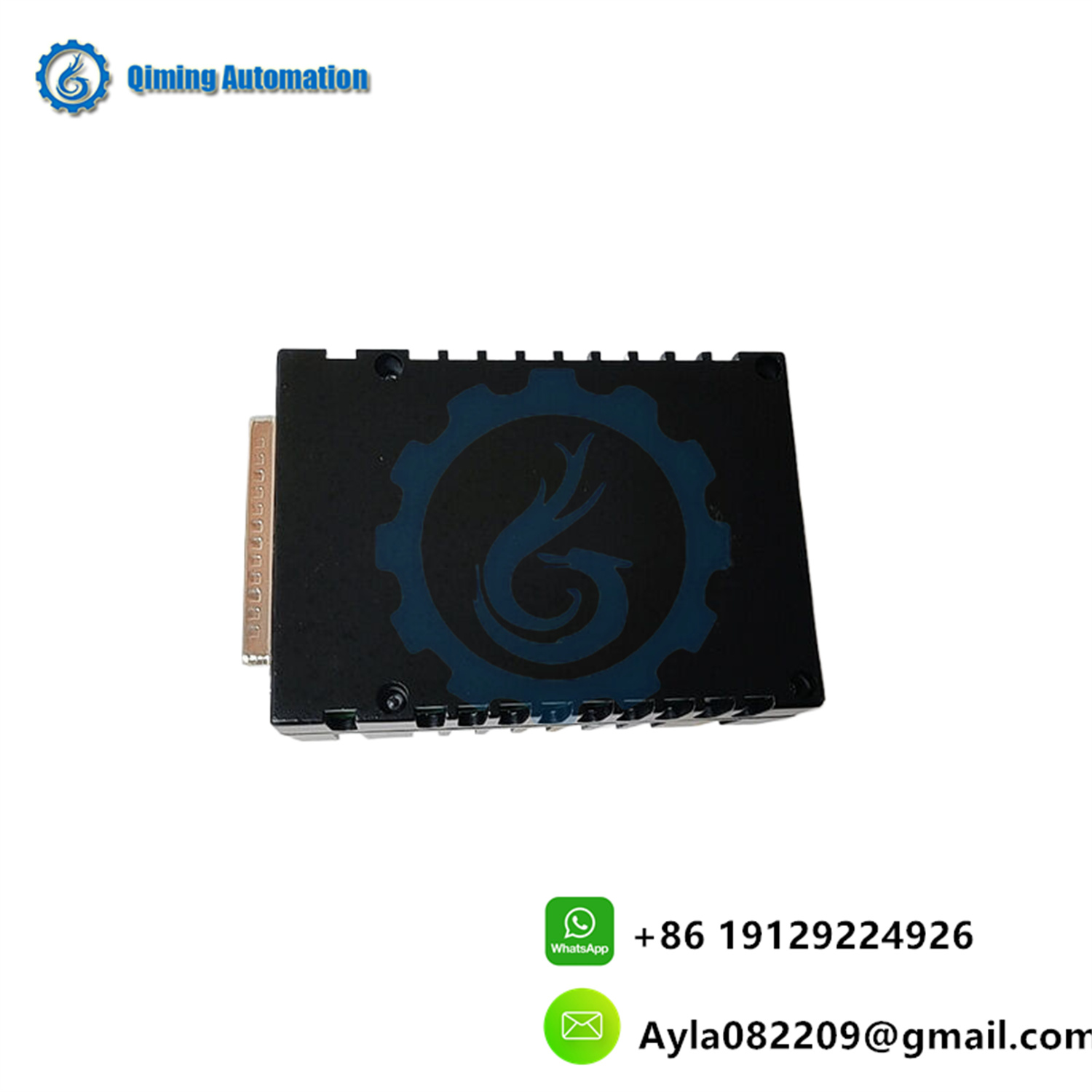

GE IS220PDOAH1A is a solid-state relay module provided by General Electric (GE). The following is a detailed introduction to the product:

1、 Product Overview

The GE IS220PDOAH1A solid-state relay module has four independent channels and can control four loads simultaneously. It is widely used in industrial automation and control systems, and can meet various control requirements, especially in situations where multiple loads or devices need to be managed simultaneously.

2、 Main features

Four channel design: This module has four independent channels, each of which can independently control a load, improving the flexibility and scalability of the system.

Multiple protection functions:

Overload protection: prevents equipment from being damaged due to overload.

Overcurrent protection: prevents damage to equipment caused by excessive current.

Over temperature protection: prevents equipment from being damaged due to excessive temperature.

Strong compatibility: IS220PDOAH1A is compatible with 6 discrete output terminal boards, including SRLY and TRLY, making it easy to integrate and connect with other devices.

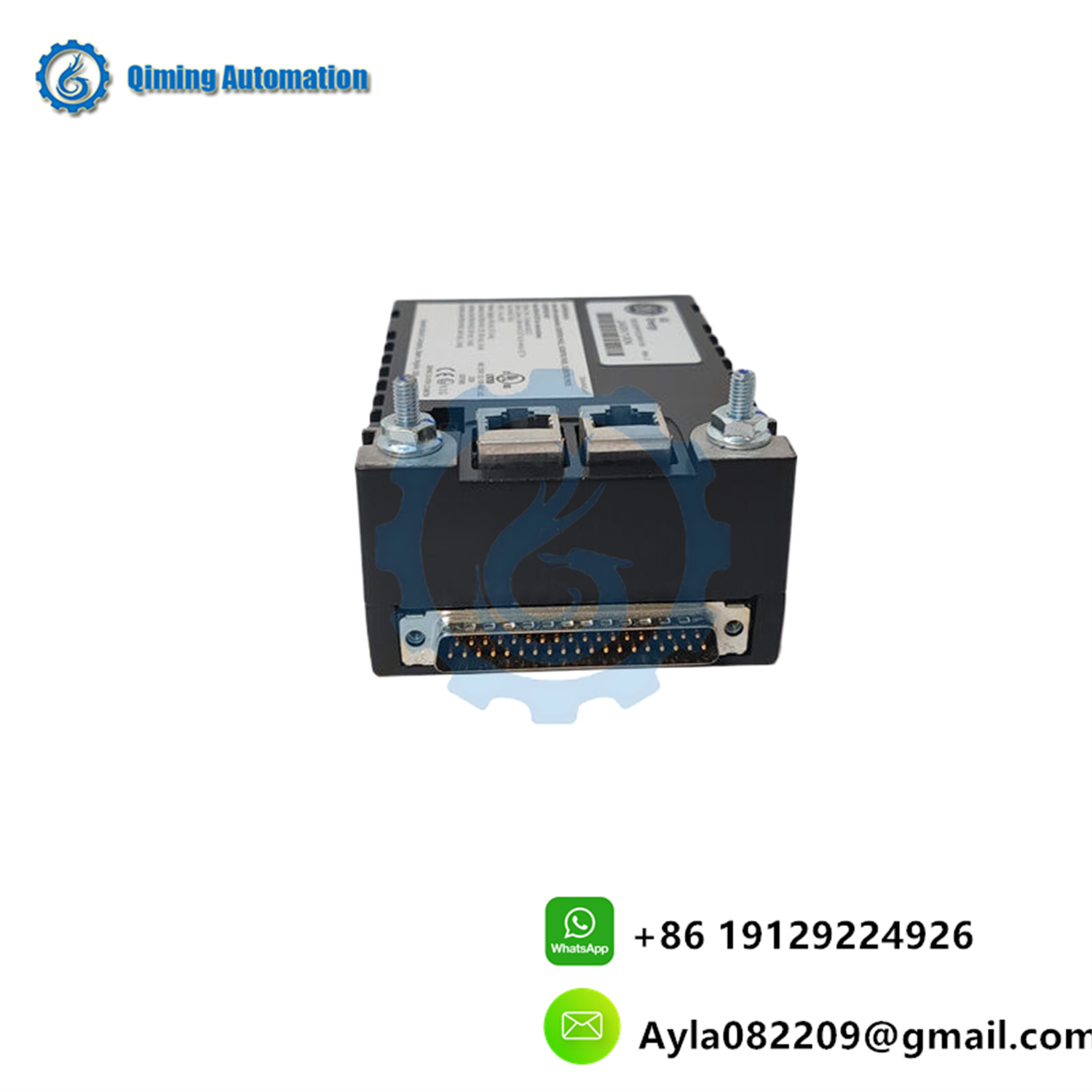

Rich interfaces: This module has 1 DC connector and 2 RJ45 connectors, which facilitate communication and data exchange with external devices.

Clear indication: It has four LED indicator lights, which respectively indicate power, attention, TxRx, and link status, making it convenient for users to monitor the status and diagnose faults.

3、 Technical parameters

Input voltage range: DC 12-48V

Output voltage range: 0-24V

Maximum output current per channel: 3A

Temperature range: -25 ℃ to+70 ℃

Response time: less than 1ms

Isolation voltage: greater than 500Vrms

Insulation resistance: greater than 100M Ω

4、 Application Fields

The GE IS220PDOAH1A solid-state relay module is suitable for automation and control applications in various industrial and commercial fields. For example:

Manufacturing industry: used for controlling motors, heaters, lighting equipment, etc.

Energy sector: used for control and protection of solar and wind energy systems.

Transportation field: used for railway signal systems, electric vehicle control, etc.

5、 Integration with other systems

The IS220PDOAH1A module can communicate and exchange data with other control systems or devices through appropriate interfaces and protocols. This enables it to collaborate with other automation components to form a complete automation solution.

6、 Summary

The GE IS220PDOAH1A solid-state relay module plays an important role in industrial automation and control systems due to its four channel design, multiple protection functions, strong compatibility, and rich interfaces. Whether in the manufacturing, energy, or transportation sectors, it can provide users with reliable and efficient solutions.
