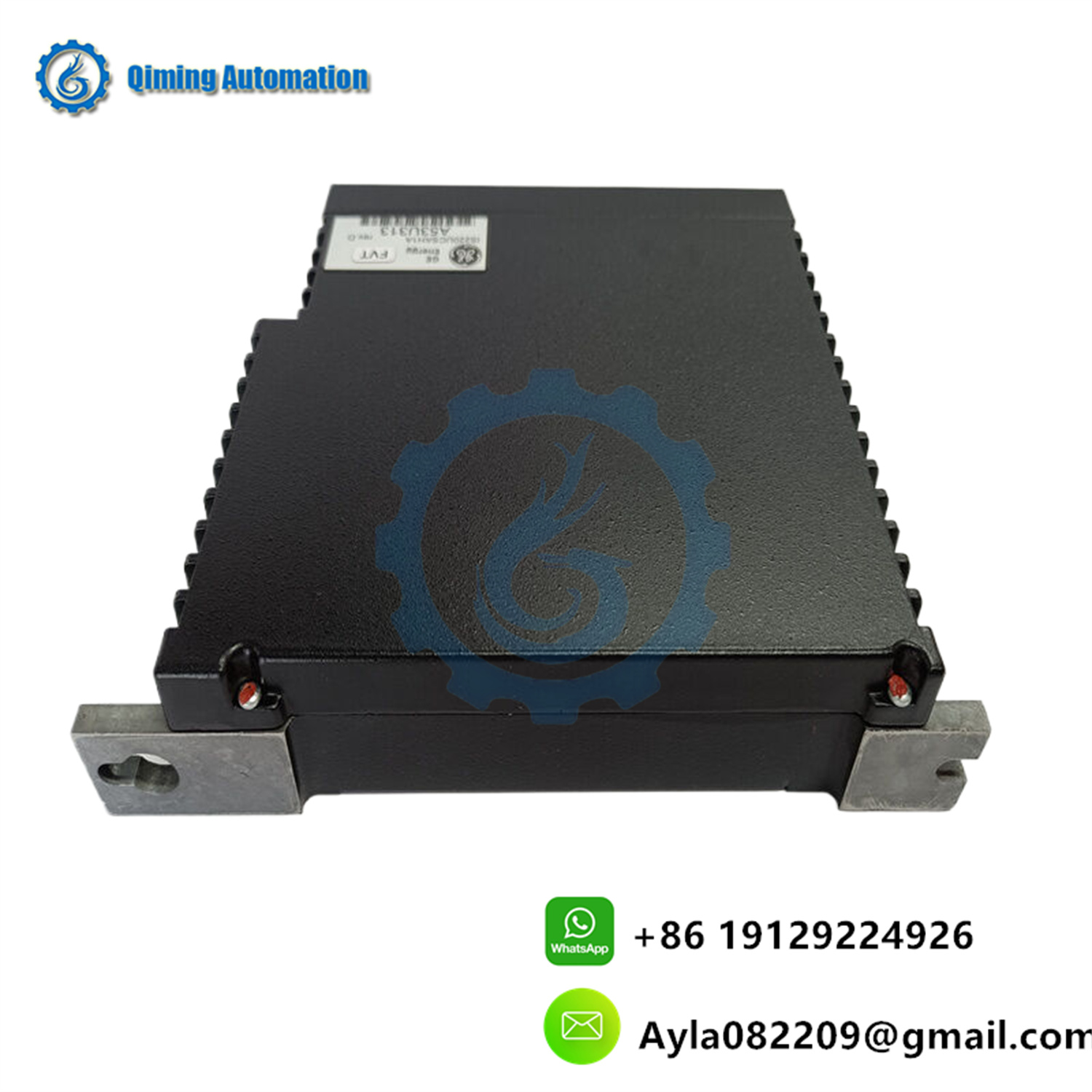

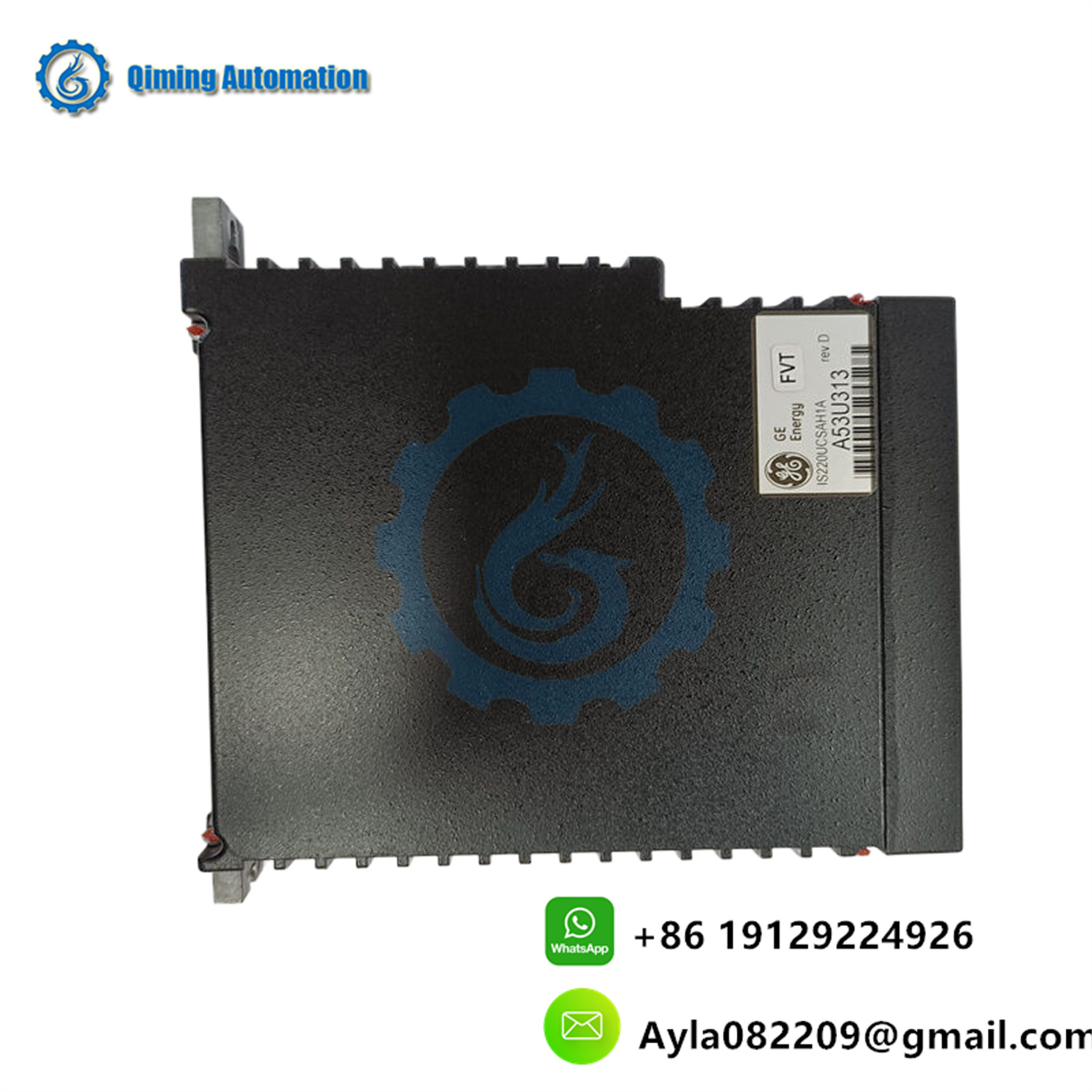

GE IS220UCSAH1A is an industrial controller/power board produced by General Electric (GE). The following is a detailed introduction to the product:

1、 Product Overview

GE IS220UCSAH1A is a processor/controller created by General Electric for Mark VI systems. It is also a rack mounted power board commonly used in industrial control systems to provide the necessary power to ensure the normal operation of the system. In addition, it can also serve as a regulator module for voltage regulation and stabilization applications in industrial control systems.

2、 Technical specifications

Processor: Freescale 8349667 MHz.

Operating System: Suitable for QNX operating system.

Power supply: Rated voltage is 18-36V DC, 12 watts. No need for a fan for cooling.

Installation: Designed for base installation inside a cabinet, up to three components can be installed adjacent to each other to achieve a compact layout and easily serve triple redundant systems.

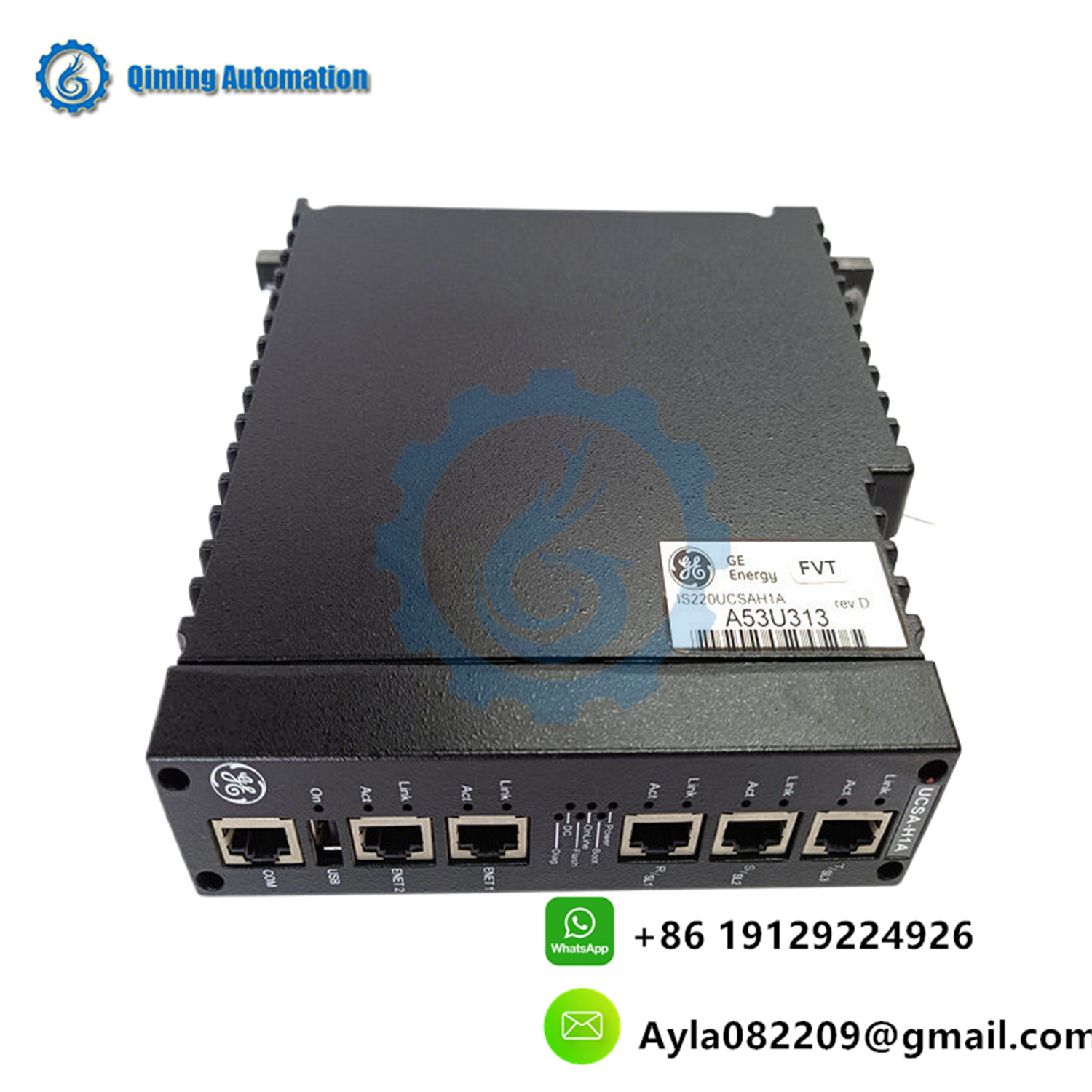

Front panel: equipped with six female socket connectors (for Ethernet connection), one USB port, and multiple LED indicator lights (including "Link/Operation", "Power", "Startup", "Online", "Flash", "DC", "Diagnostic", etc.).

3、 Functions and Applications

Power system: used for voltage regulation and stabilization, ensuring the stable operation and voltage quality of the power system.

Power plant: Adjust the output voltage of the generator to meet the load demand of the power grid.

Industrial automation: Ensure stable power supply and guarantee the normal operation of industrial equipment and production processes.

Energy sector: voltage regulation in solar power generation systems and wind power generation systems.

Transportation: Applied to electric vehicles and railway systems to ensure the stability and safety of power sources.

Telecommunications equipment: Used for stabilizing the power supply of telecommunications equipment to ensure the normal operation of communication equipment.

4、 Product Features

Modular design: Rack mounted power boards typically adopt a modular design, allowing for the addition or replacement of power modules as needed to meet different power requirements and capacities.

Hot swappable support: Some rack mounted power boards support hot swappable functionality, allowing for the replacement of power modules while the system is running without shutting down the entire system.

Power management: including overcurrent protection, overvoltage protection, short circuit protection, etc., to ensure power stability and equipment safety.

Communication interface: allows monitoring of power status and performance through a network or remote management system.

Redundant power supply: For critical systems, rack mounted power boards may support redundant power configurations to ensure reliable system operation in the event of a power module failure.

5、 Precautions

Environmental requirements: It should be operated in a room temperature, dry, and non corrosive gas environment.

Maintenance: Regularly conduct functional testing and maintenance to verify the effectiveness of protective features and update firmware in a timely manner.

Operation and Training: Operation and maintenance personnel should receive appropriate training to fully understand the functions and operating procedures of IS220UCSAH1A.
