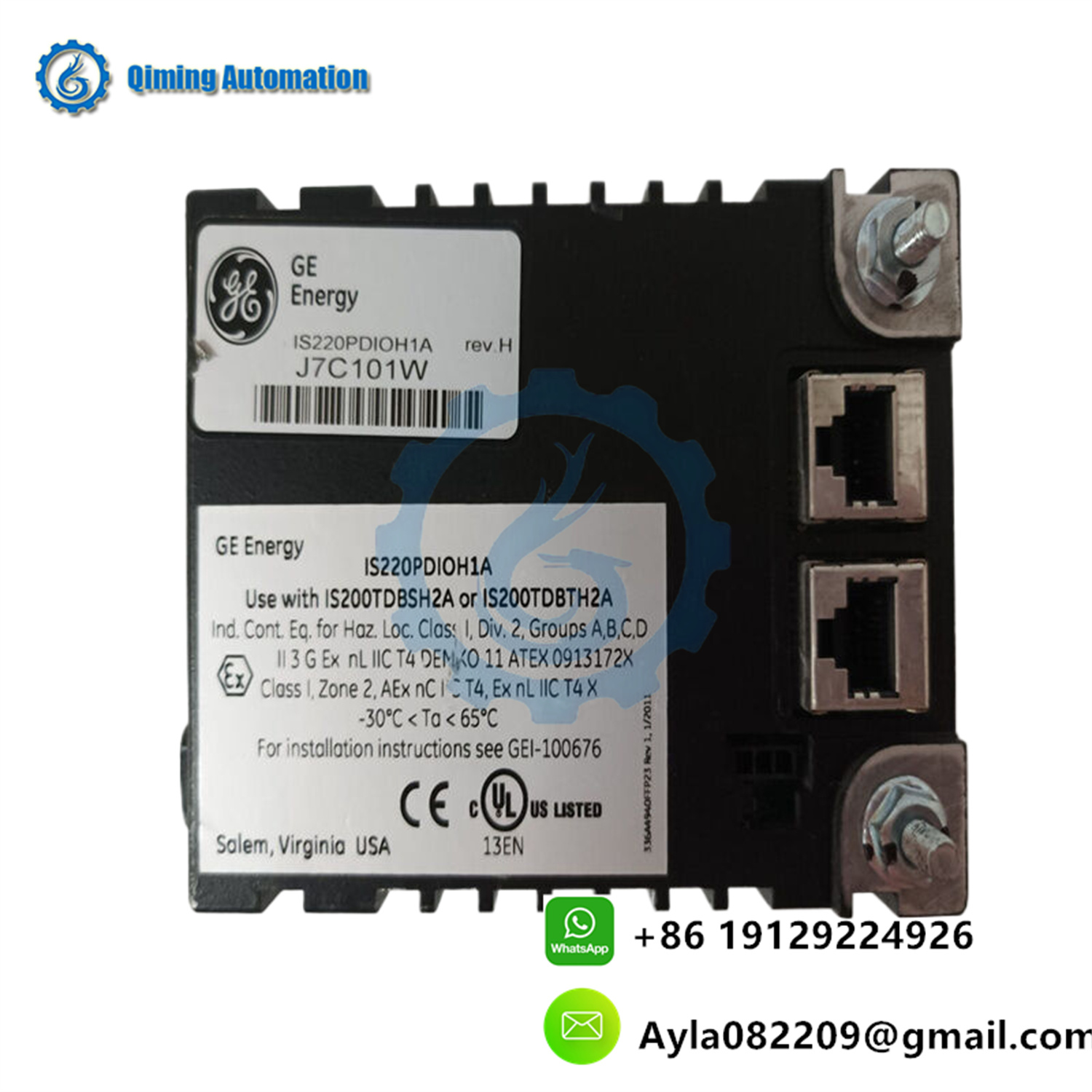

IS220PDIOH1A is a discrete input/output module manufactured and designed by General Electric (GE). The following is a detailed introduction to the module:

1、 Basic Information

model: IS220PDIOH1A

Manufacturer: General Electric (GE)

Series: Mark VIe Series

Main function: Used as a discrete input/output module in distributed control systems

2、 Technical specifications

Input/output capability:

Can accept up to 24 contact inputs

Can manage up to 12 relay outputs

Analog inputs: 8 (4-20mA or 0-10V)

Analog output: 8 (4-20mA or 0-10V)

Accuracy: 0.1%

Resolution: 16 bits

Electrical interface:

The electrical link between one or two I/O Ethernet networks and discrete input/output terminal boards is provided by discrete input/output (PDIO) packets

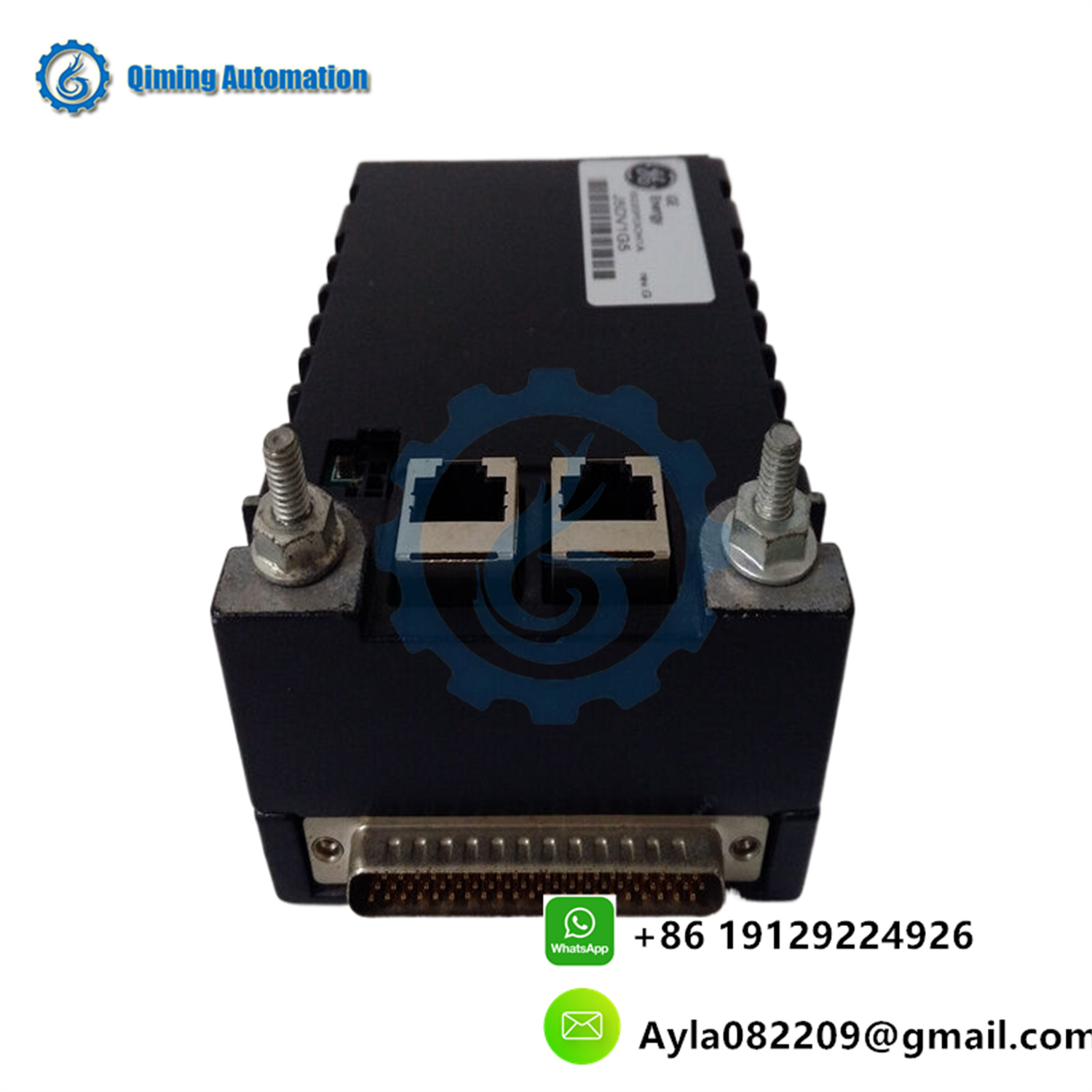

Three pin power input and two RJ45 Ethernet connectors are used as system inputs for the battery pack

The DC-62 connector is directly connected to the corresponding terminal board connector for the input and output of discrete signals

Environmental conditions:

Working temperature range: 0 to 60 ° C (some information indicates that the ambient temperature range can reach -30 to 65 ° C, but official data for specific application scenarios should prevail)

Suitable for various harsh working environments, with high stability

3、 Functional Features

Programmability and scalability: IS220PDIOH1A has programmability and scalability, and can be integrated with other industrial automation and control systems to achieve more advanced functions and applications.

Data accuracy: The analog input and output of this module have high precision and resolution, ensuring accurate data collection and transmission.

Optical isolation and hardware filter: The input part adopts optical isolation technology, with an isolation capability of up to 1500V; Meanwhile, the hardware filter (4ms) can suppress AC voltage interference (60V rms).

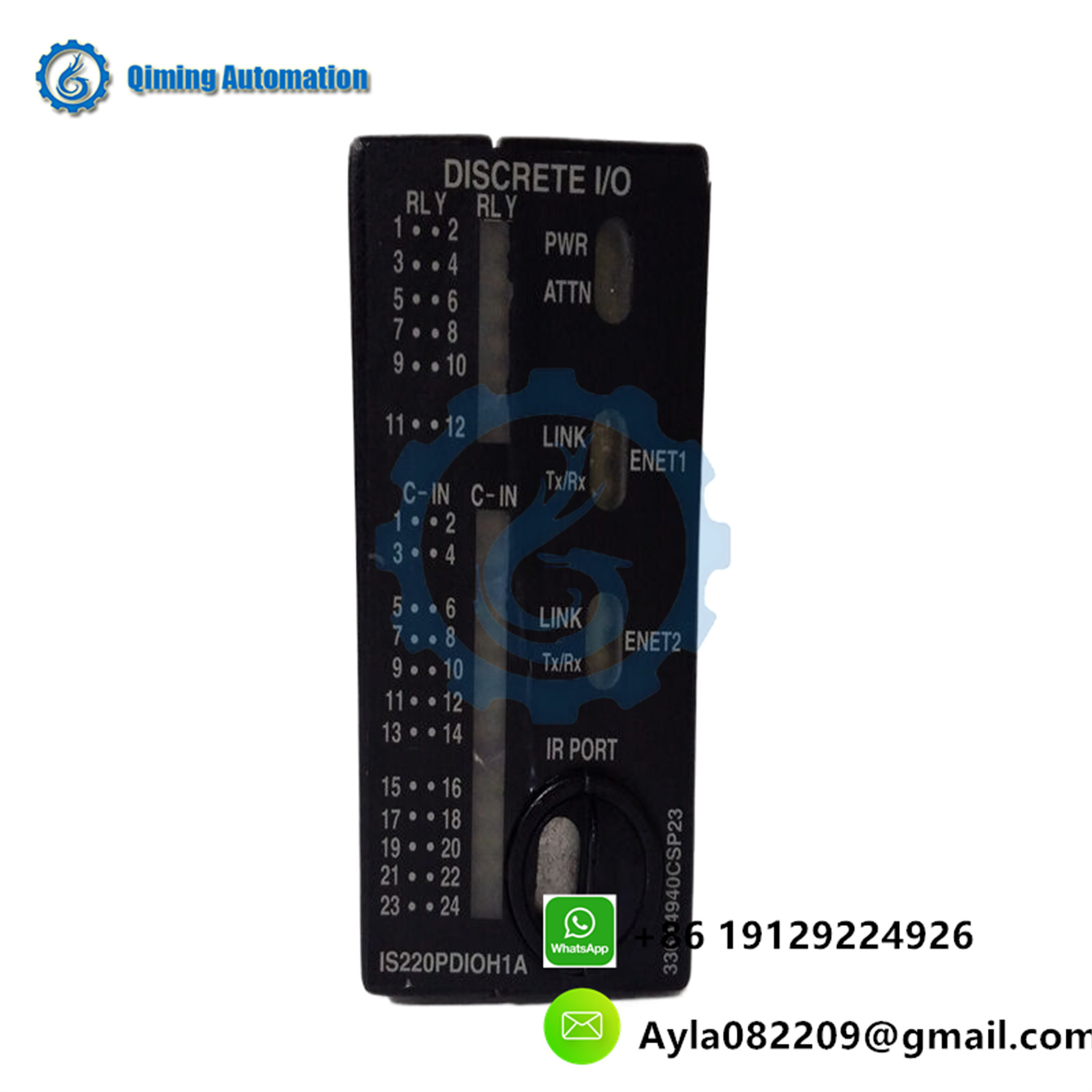

Visual diagnosis: LED indicator lights are used to display visual diagnostic information, facilitating users to quickly locate and solve potential problems.

4、 Application scenarios

Industrial Automation: IS220PDIOH1A is widely used in the field of industrial automation, such as motor control, valve regulation, heater control, etc.

Turbine Control System: As part of the Mark VI series turbine control system, IS220PDIOH1A can be used for control systems in gas and steam turbine power plants.

Other control systems: This module can also communicate and exchange data with other control systems or devices to form a complete automation solution.

5、 Installation and maintenance

Installation: IS220PDIOH1A should be securely installed on the selected terminal board and the terminal board connector should be directly connected to the PDIO I/O pack. Use the threaded bolt next to the Ethernet port to mechanically secure the battery pack.

Maintenance: During use, the status of the LED indicator lights should be regularly checked to confirm the operation of the module. If necessary, please use the ToolboxST * program to set up and debug I/O packages.

In summary, IS220PDIOH1A is a powerful and stable discrete input/output module suitable for various application scenarios such as industrial automation and turbine control systems. Its high precision, high resolution, programmability, and scalability make it one of the preferred products in the field of industrial automation.
