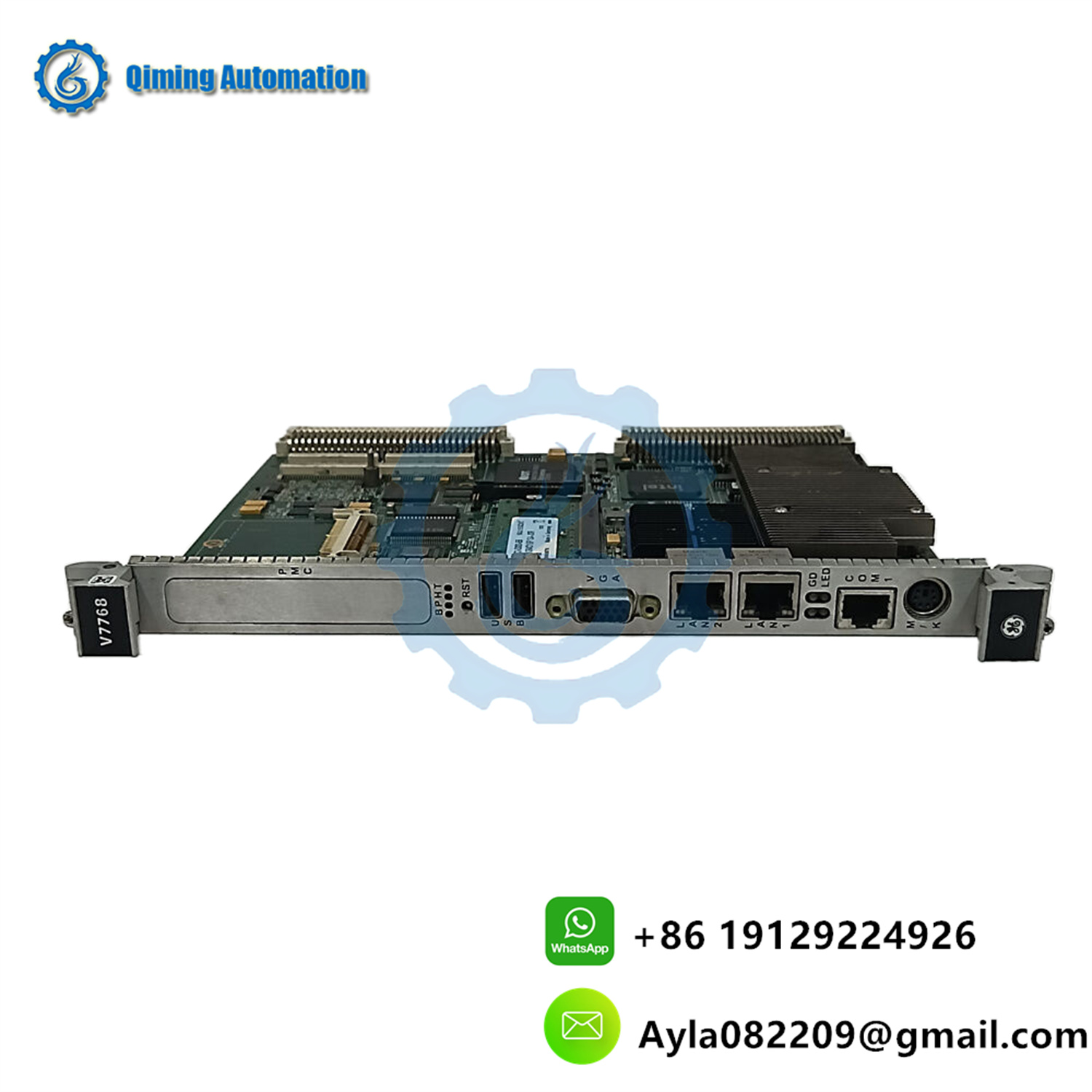

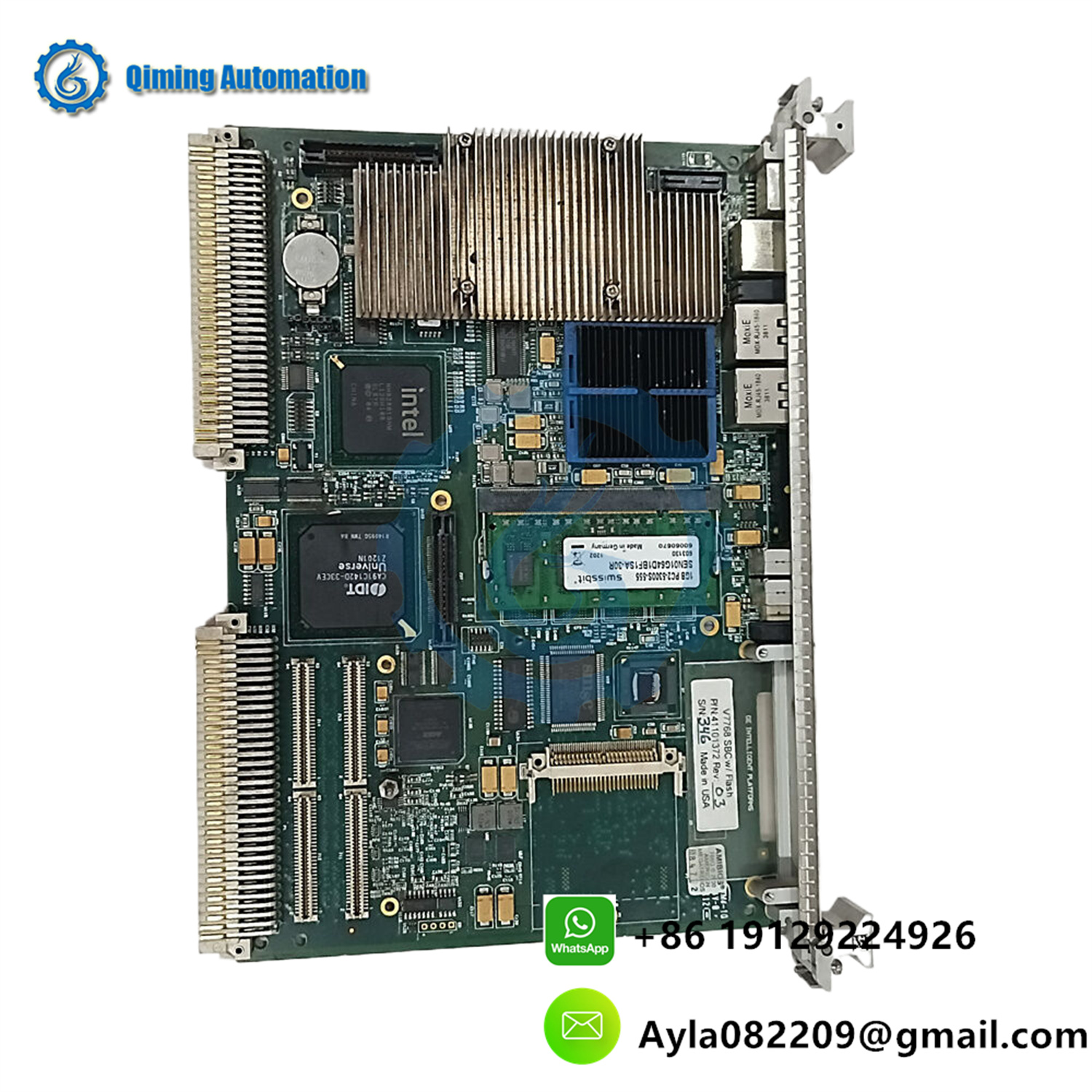

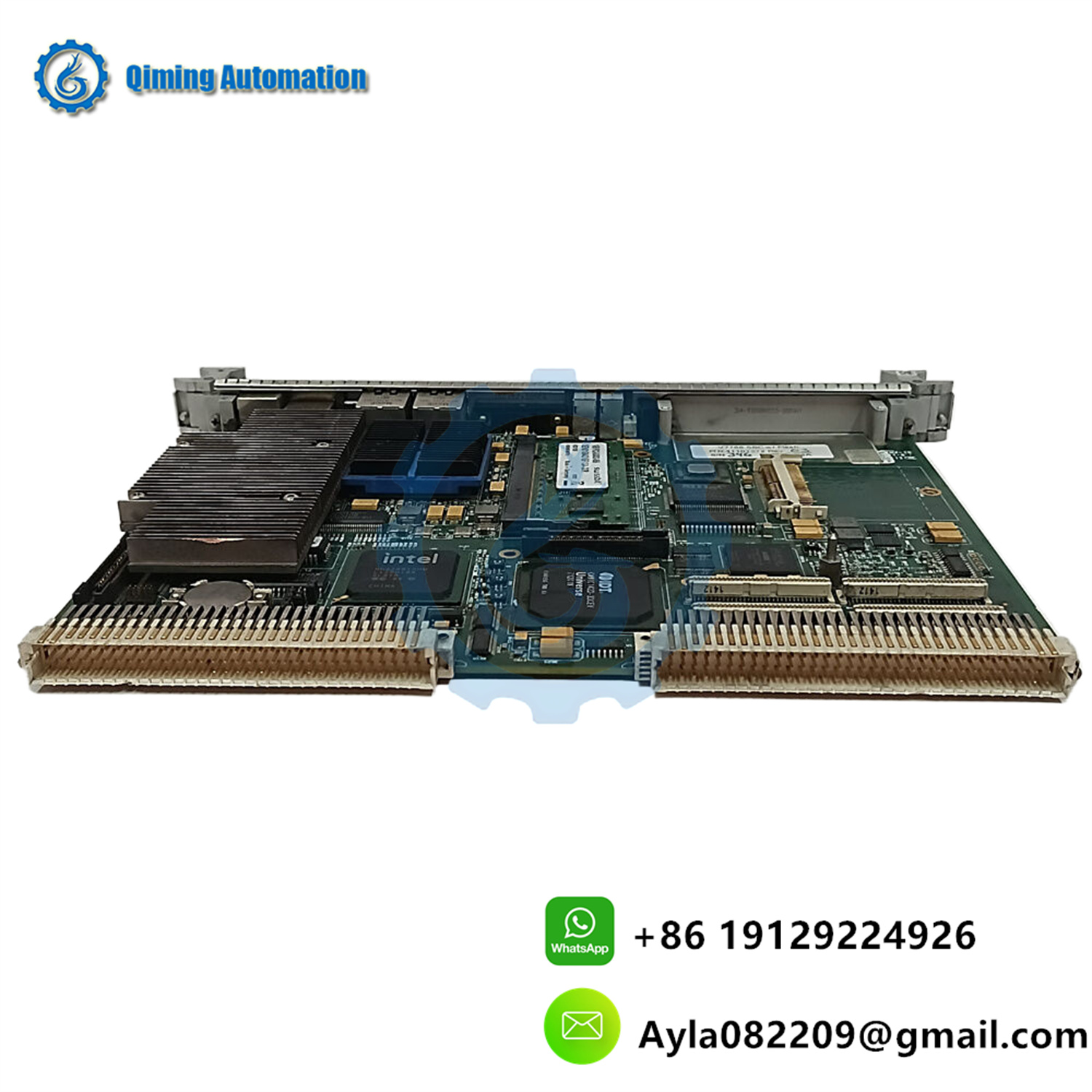

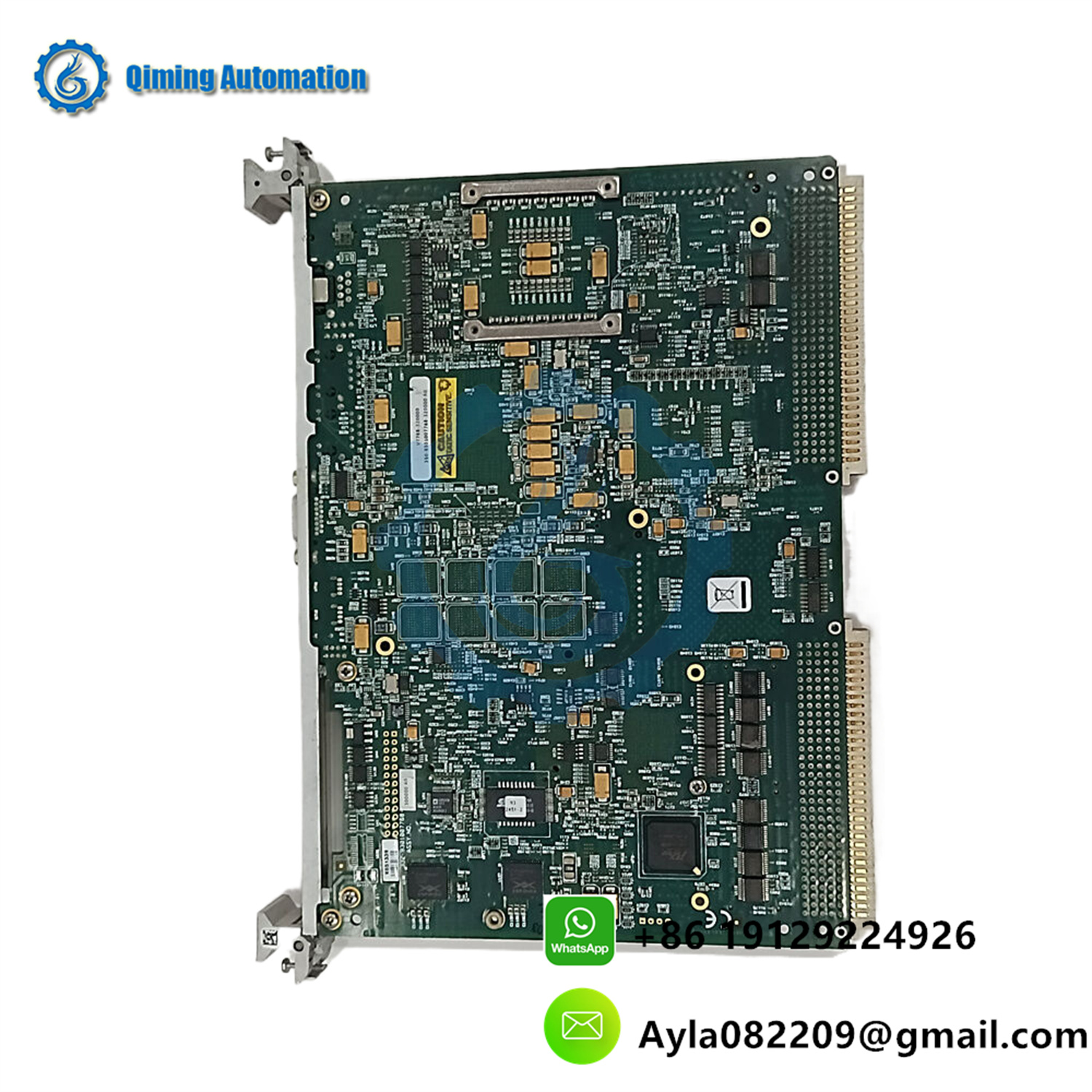

The GE V7768-320000 is a high-performance VMEbus Single Board Computer (SBC) produced by GE Fanuc Intelligent Platforms (now Abaco Systems). It is widely used in industrial automation, data acquisition, image processing, and other fields due to its powerful computing capabilities and rich I/O settings.

Key Features

1. High-Performance Processor:

   • The V7768-320000 is equipped with an Intel Core 2 Duo processor, providing a processing speed of up to 2.16 GHz. This makes it suitable for complex control tasks and ensures high performance in various applications.

2. Rich I/O Interfaces:

   • The board integrates a variety of I/O interfaces, including Ethernet, serial ports, PCI, etc., facilitating the connection of various peripherals. This enhances the flexibility and connectivity of the system.

3. High Reliability and Stability:

   • Adopting an industrial-grade design, the V7768-320000 offers high reliability and stability, ensuring continuous and reliable operation in harsh industrial environments.

4. Modular Design:

   • Compliant with VME standards, the board is easy to expand and maintain. This allows users to add additional modules or cards as needed to meet specific application requirements.

5. Support for Real-Time Operating Systems:

   • The V7768-320000 supports multiple real-time operating systems, such as Windows XP, VxWorks, and Linux. This enables it to meet the real-time control needs of various industrial applications.

Technical Specifications

1. Processor:

   • Intel Core 2 Duo processor with a clock speed of 2.16 GHz.

2. Memory:

   • Up to 2 Gbyte of DDR2 SDRAM via a single SODIMM.

3. I/O Options:

   • Dual Gigabit Ethernet ports, two SATA interfaces, four USB 2.0 ports, a PS/2 keyboard/mouse port, and a PCI-X PMC expansion site.

4. Operating Temperature:

   • The operating temperature range is from -20°C to +70°C, making it suitable for a wide range of industrial environments.

Applications

The GE V7768-320000 is widely used in various industrial fields, including:

1. Industrial Automation:

   • For process control, motion control, and data acquisition tasks in manufacturing plants and factories.

2. Defense Industry:

   • For control and data processing in military equipment and systems.

3. Aerospace:

   • For flight control and data acquisition in aircraft and spacecraft.

4. Test and Measurement:

   • For data acquisition and analysis in various testing and measurement applications.

In summary, the GE V7768-320000 is a high-performance VMEbus Single Board Computer that offers powerful computing capabilities, rich I/O settings, high reliability and stability, modular design, and support for real-time operating systems. It is widely used in various industrial fields and meets the needs of complex industrial applications.
