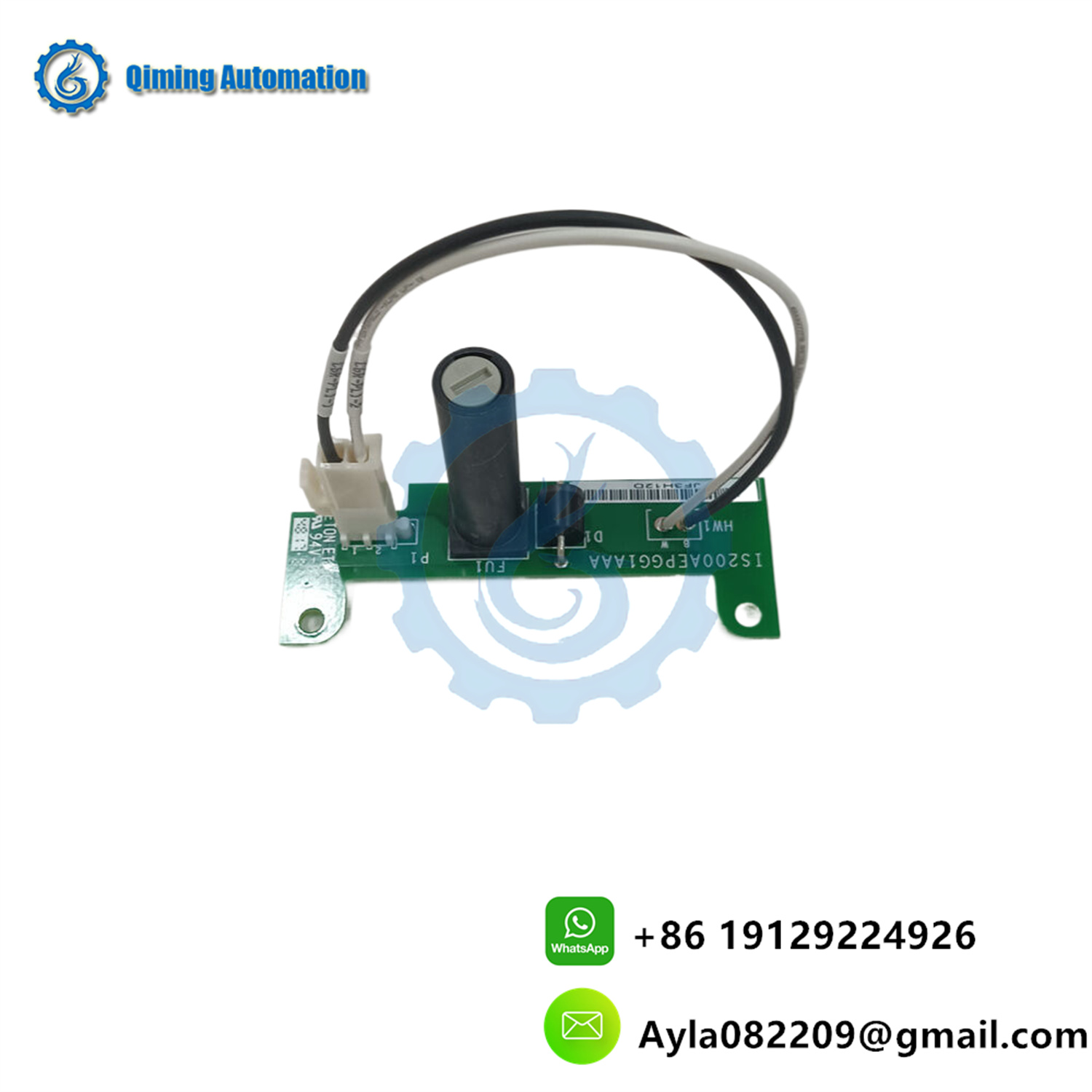

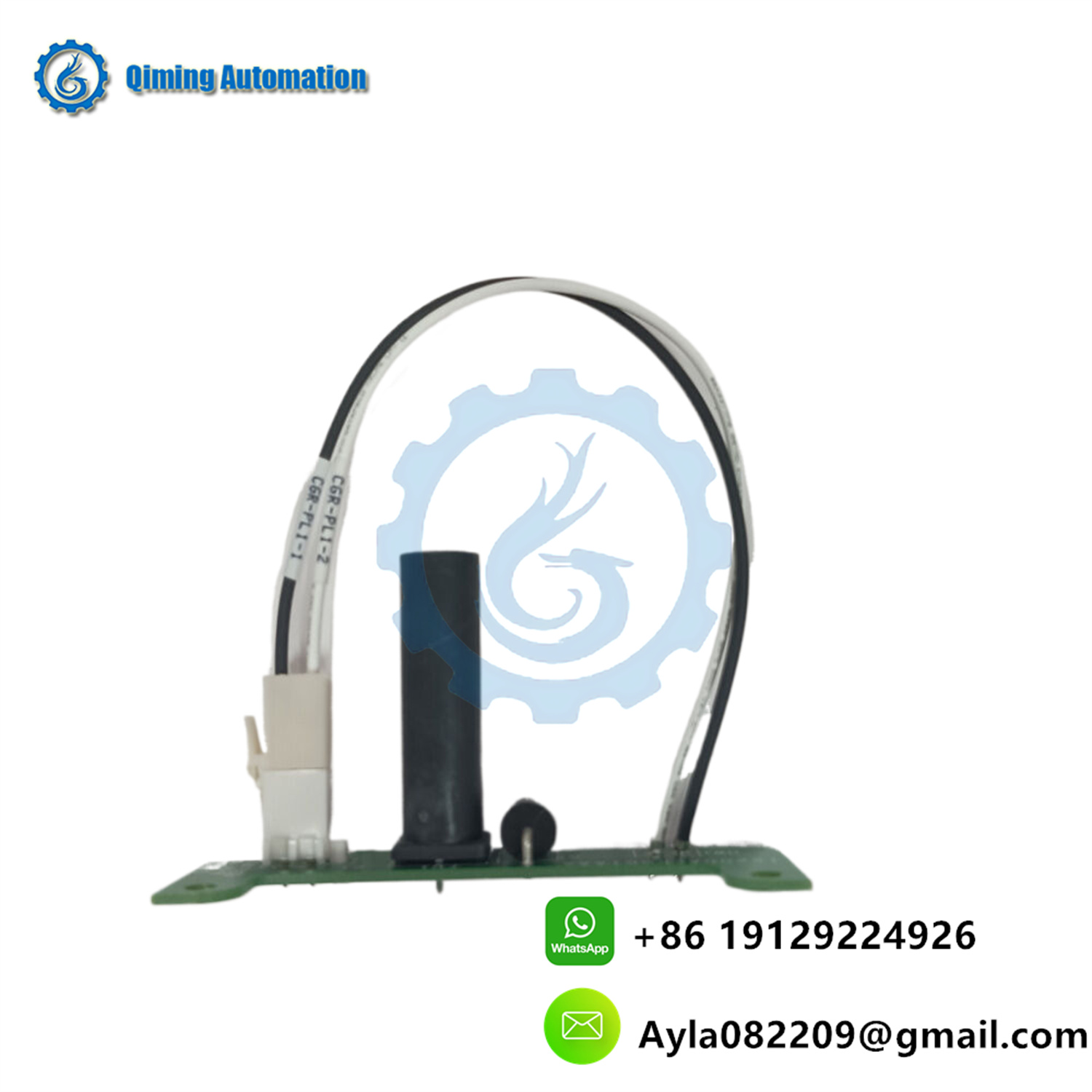

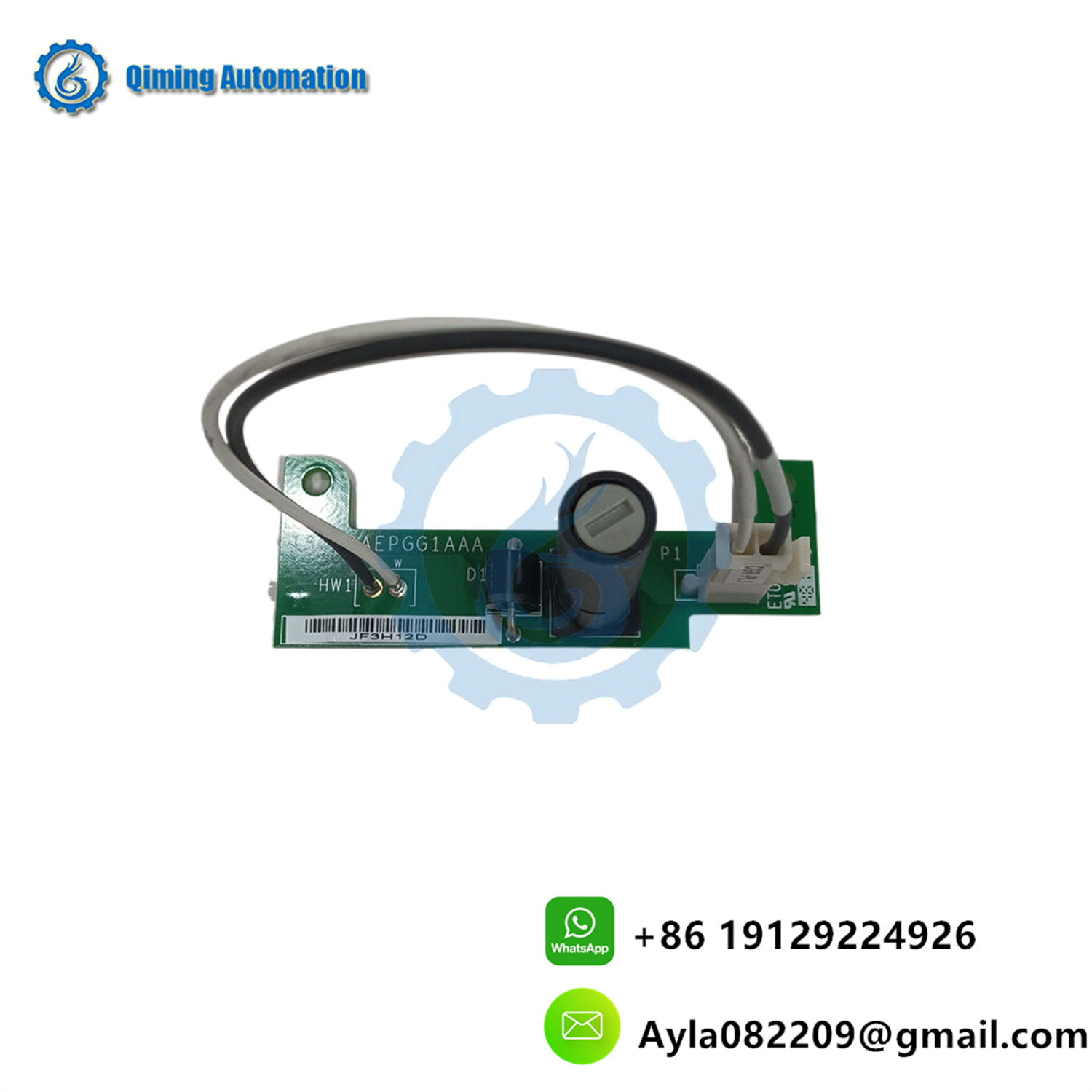

GE IS200AEPGG1AAA is an advanced industrial control component produced by General Electric (GE). The following is a detailed introduction to the product:

1、 Product Overview

GE IS200AEPGG1AAA is widely used in the field of industrial automation and control systems, especially playing an important role in industries such as chemical, petroleum, electronics, aerospace, and electrical. It plays a key role in DCS (Distributed Control System) with its excellent performance and reliability, achieving efficient control, monitoring, and signal processing functions, helping enterprises improve production efficiency and safety.

2、 Main features

Memory configuration:

Includes user memory supported by a 10MB battery and 10MB non-volatile flash memory for users.

Provide access to high-capacity memory by referencing table% W.

Configurable data and program storage.

Programming function:

Support ladder diagrams C、 Structured text and functional block diagram programming.

Supports up to 512 program blocks, with a maximum block size of 128KB.

Symbolic variables:

Symbolic variables that support automatic positioning can use any amount of user memory.

I/O module support:

Supports 90-70 series discrete and analog I/O, communication, and other modules.

Supports all VME modules supported by the 90-70 series.

Network Communications:

Support RX7i data monitoring and FTP connection through the network.

The embedded Ethernet interface provides data exchange using Ethernet Global Data (EGD), TCP/IP communication services using SRTP, support for SRTP channels, Modbus/TCP servers, and Modbus/TPC clients.

Provide complete programming and configuration services, comprehensive station management, and diagnostic tools.

A switch with two full duplex 10BaseT/100BaseT/TX (RJ-45 connectors) ports with internal network, supporting automatic negotiation of network speed, duplex mode, and cross detection.

Users can configure redundant IP addresses and support time synchronization with SNTP time servers over Ethernet (with CPU modules of version 5.00 or higher).

Other functions:

The test editing mode allows for easy testing of modifications to running programs.

Calendar clock with battery support.

Upgradeable firmware within the system.

Three isolated serial ports: one RS-485 serial port, one RS-232 serial port, and one RS-232 Ethernet site manager serial port.

3、 Application and compatibility

The GE IS200AEPGG1AAA module can be configured to provide key signals to the 3500 rack backplane for use by other monitors, so there is no need to install separate key phase modules in the rack. In addition, it can be easily integrated into existing industrial control systems without the need for large-scale equipment upgrades.

4、 Summary

GE IS200AEPGG1AAA is a powerful and stable industrial control component suitable for various complex industrial automation and control systems. Its rich interface options, high-performance processor, and large capacity memory enable it to quickly process large amounts of data and meet high demand automation tasks. At the same time, the module also provides flexible configuration and programming capabilities, making it convenient for users to customize and expand according to their actual needs.
