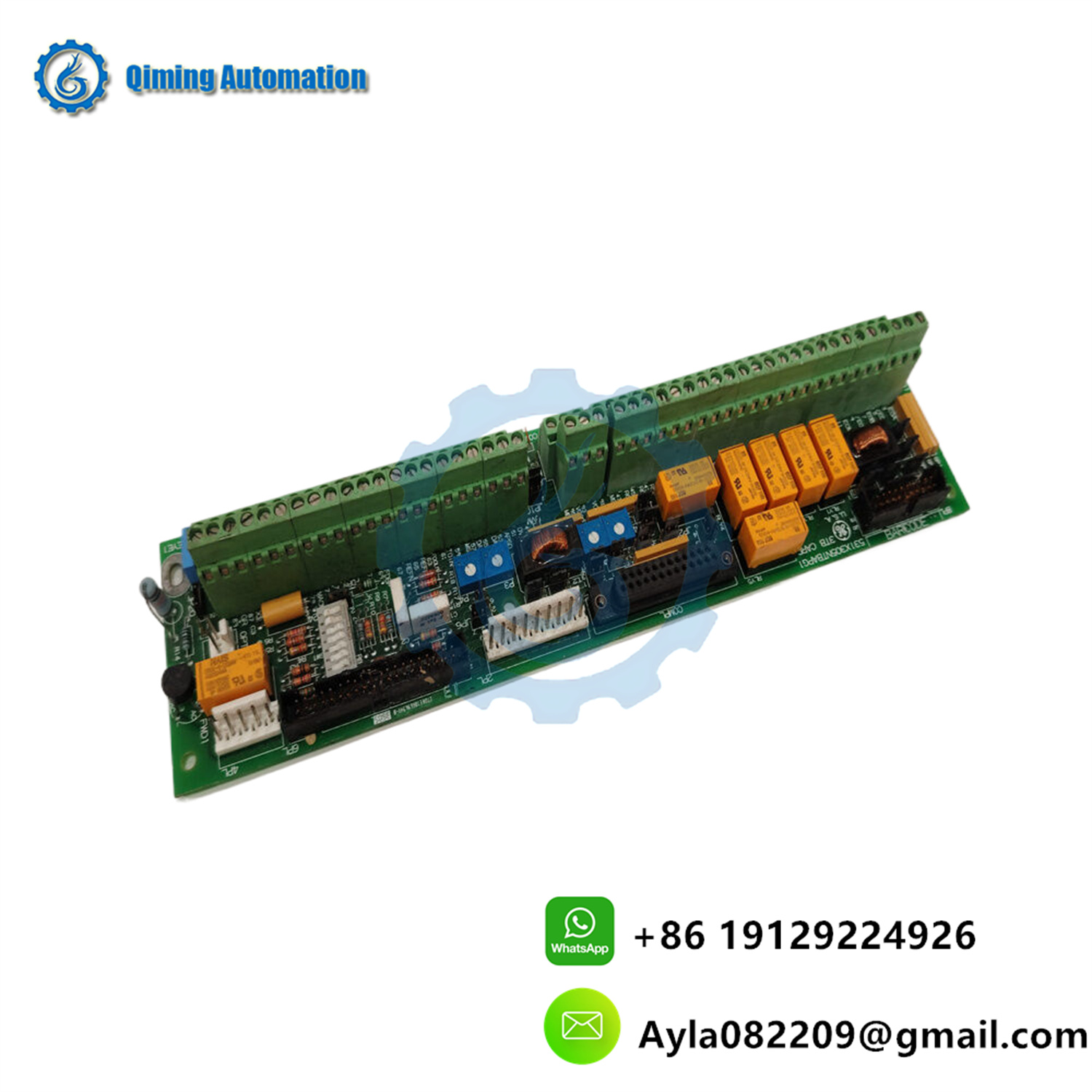

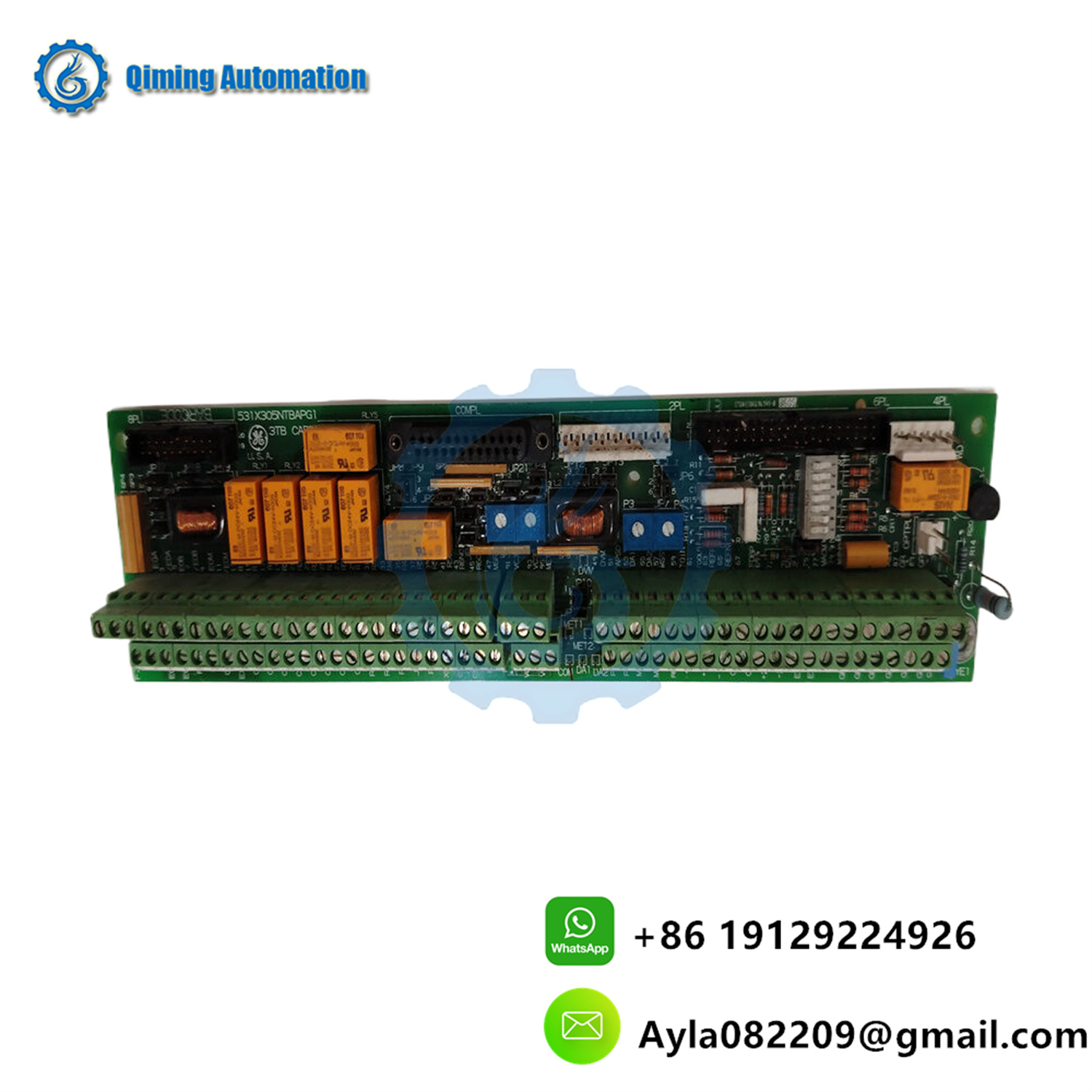

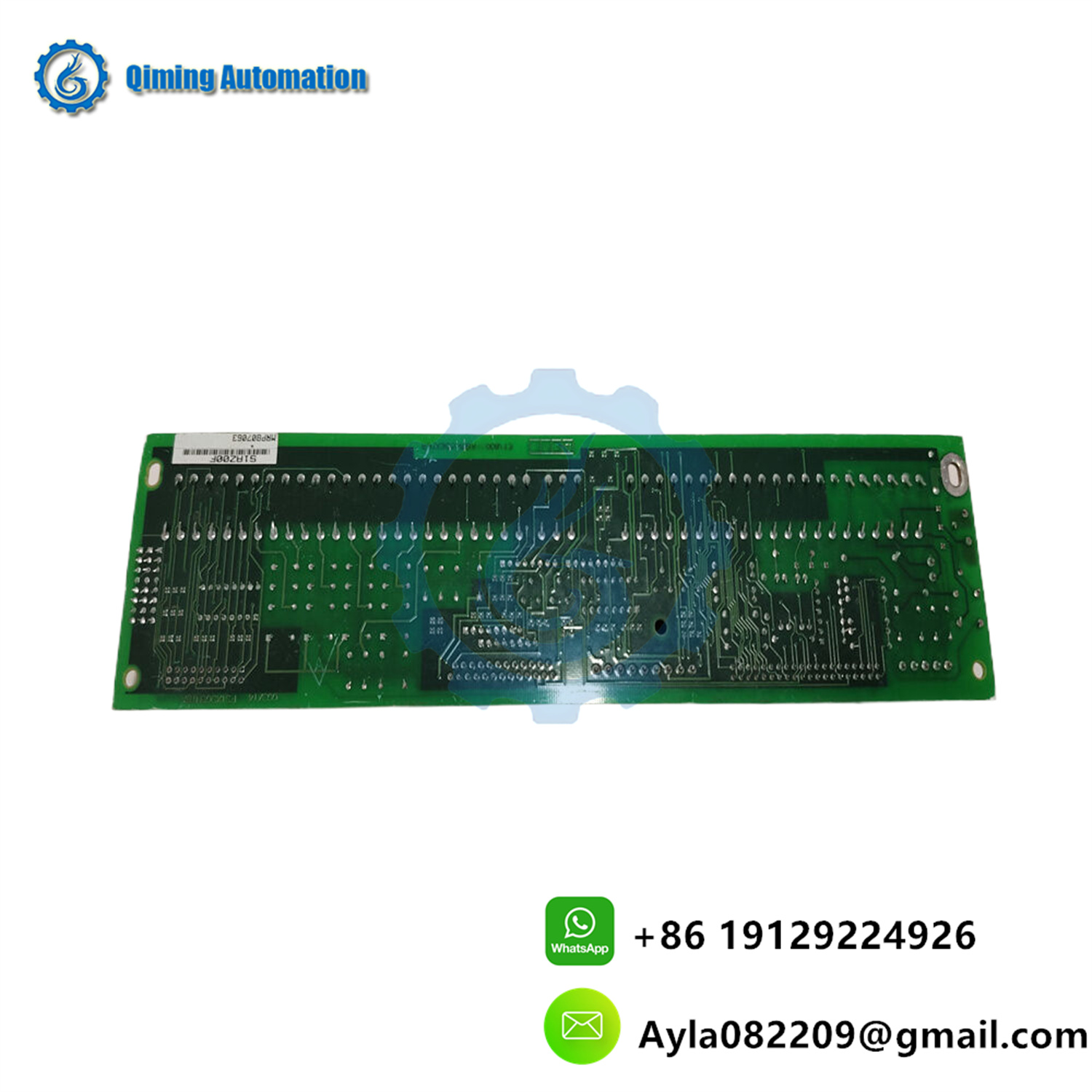

GE 531X305NTBAPG1 is a Drive Control Terminal Board produced by General Electric (GE). The following is a detailed introduction to it:

1、 Basic Information

Brand: GE (General Electric)

Model: 531X305NTBAPG1

Purpose: As a key component in the drive control system, it is used to manage and transmit signals, control power supply, and provide connection points for different devices in the system.

2、 Main functions

Signal connection and transmission:

Design multiple wiring terminals for connecting external devices such as sensors, actuators, and other peripheral devices to achieve data and power transmission.

It can process different types of input signals and transmit them to the controller of the drive system for precise control of motors or other actuators.

Power management:

Provide regulated voltages of+5V DC and 15V DC, each with a current capacity of 300mA.

Provide non regulated DC 24V, 500mA current capacity, as well as 120V AC, 0.5A current capacity.

Control input and output:

There are 12 universal control inputs (up to 24V DC) and dedicated digital inputs (such as RESET and CON ON).

Contains seven A-type and C-type relay outputs, all integrated relays include contacts with a rated voltage of 120VAC.

Encoder interface:

Contains differential A-quad-B encoder interfaces with labeled channels, which can be used to connect to drivers.

Contains jumper wires, allowing interface settings for+5V or 15V encoders.

3、 Application scenarios

Industrial automation: Used in industrial automation systems to control and monitor various motors, actuators, and other drive devices, helping to improve the efficiency and flexibility of production lines.

Power system: used to control and monitor equipment such as generators and motors in power plants to ensure the stable operation of the power system.

Process control: In industries such as chemical, petroleum, and pharmaceutical, it is used to monitor and adjust key parameters in the production process in real-time, ensuring that they operate under predetermined parameters and standards.

Data collection and processing: Connected to a data collection system for collecting, processing, and transmitting data generated by sensors and instruments.

Building automation: Used in building automation systems to control and monitor subsystems such as lighting, air conditioning, and security.

4、 Technical features

Modular design: making it easy to integrate into existing systems, supporting modular upgrades and maintenance, and reducing system downtime.

High reliability: Designed to be sturdy and durable, suitable for harsh industrial environments, with the ability to resist interference and vibration.

Flexible expansion: It can expand functions according to different application needs and adapt to various drive control systems.

Accurate signal transmission: Provides high-precision signal transmission to ensure precise control and stable operation of the drive system.
