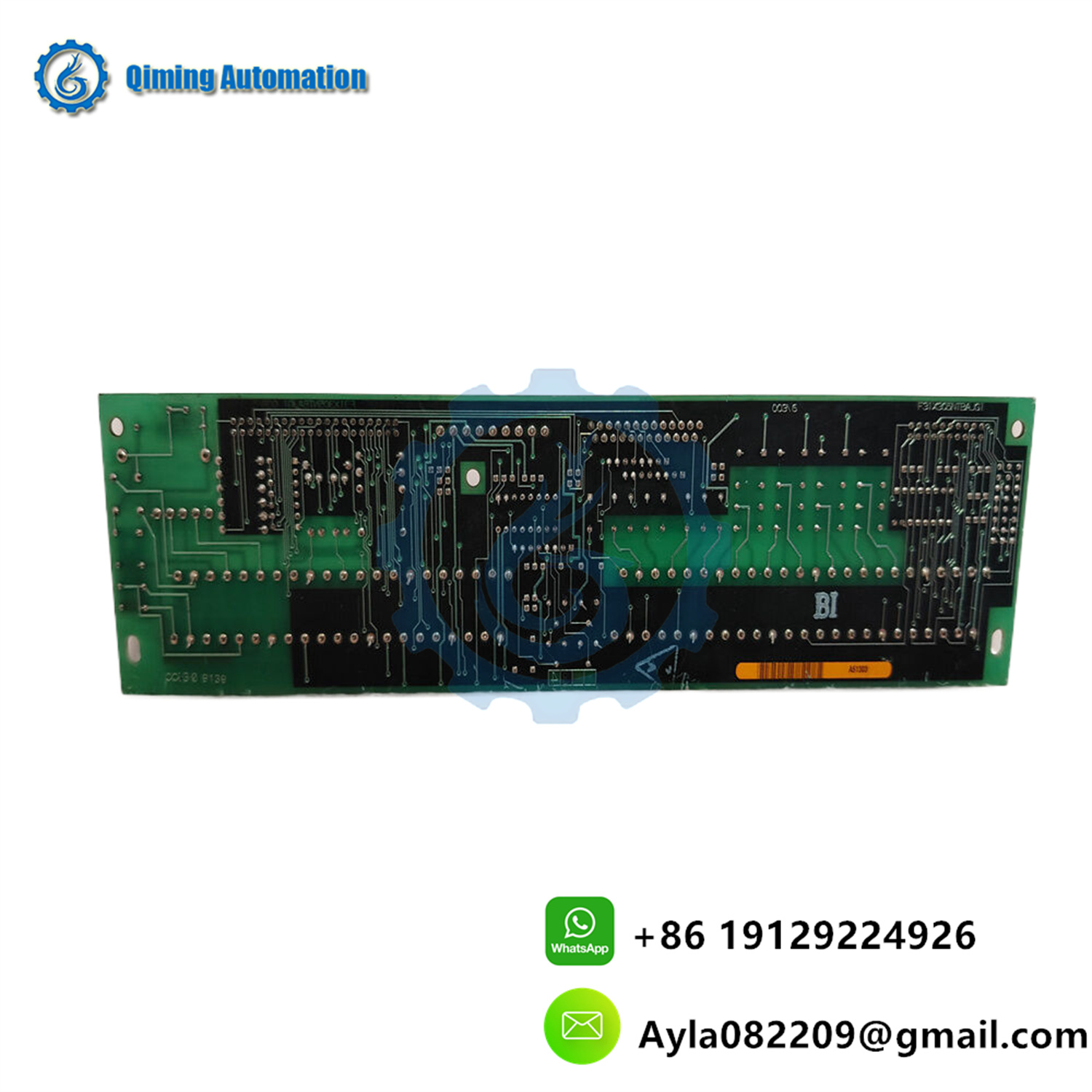

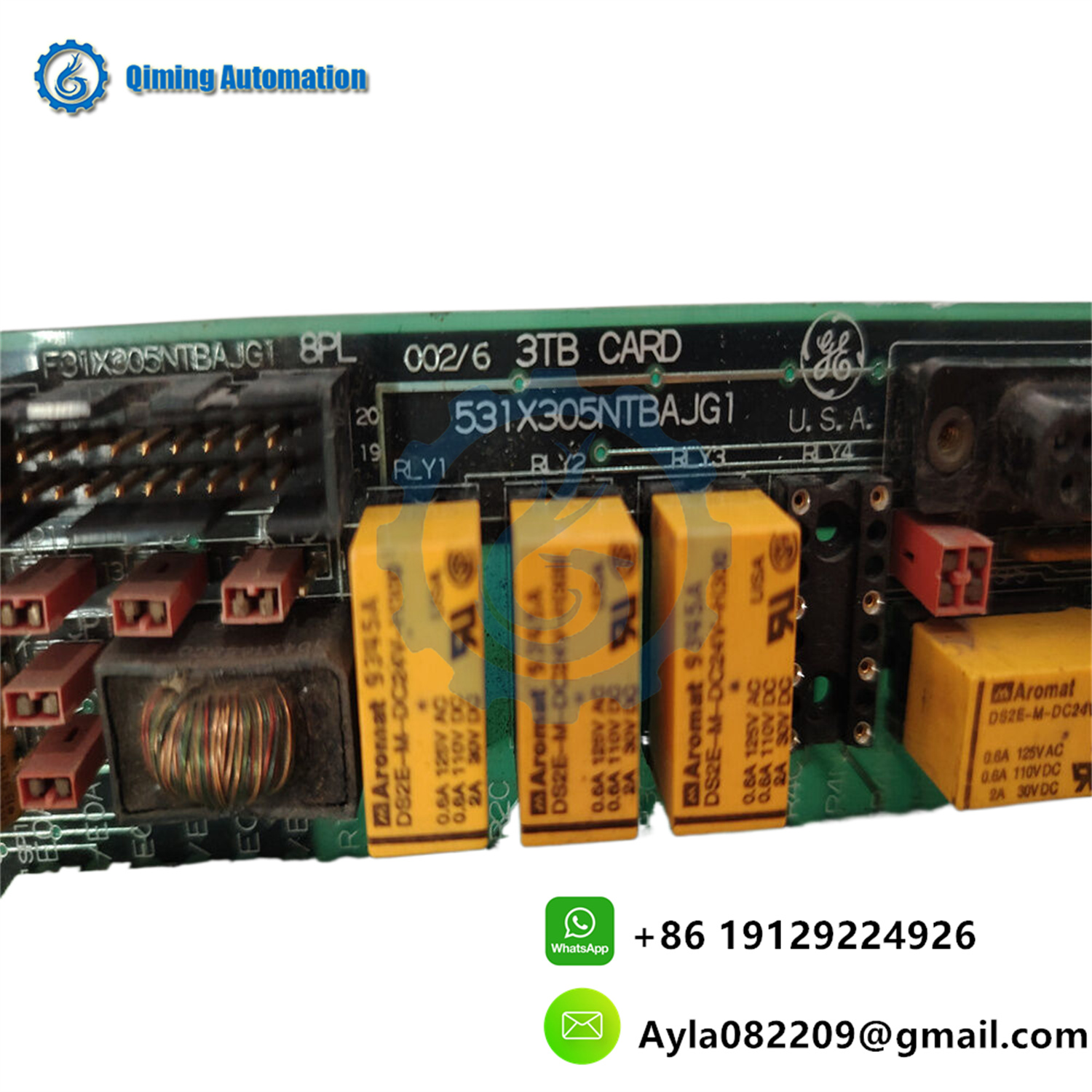

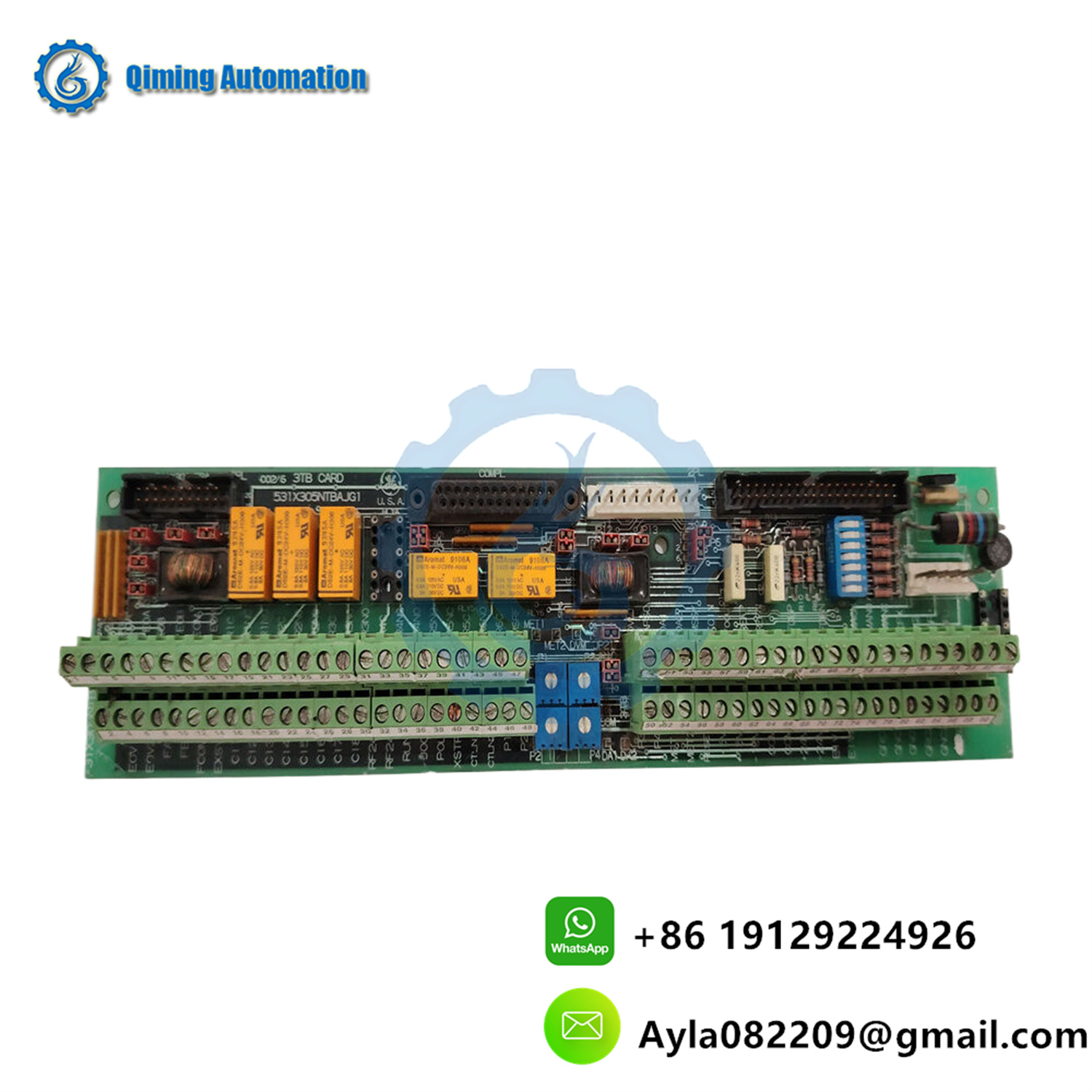

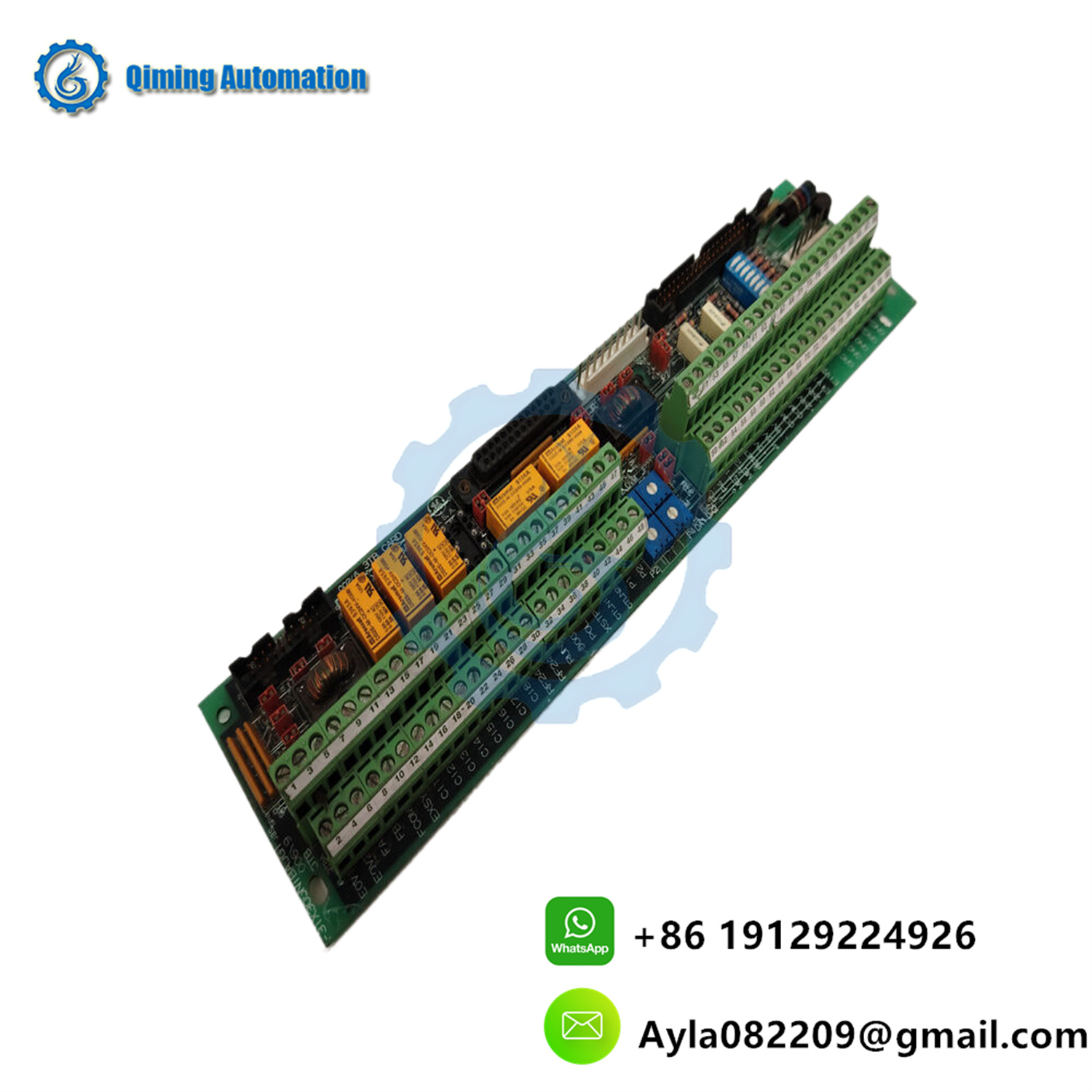

GE 531X305NTBAJG1 is a Drive Control Terminal Board produced by General Electric (GE). The following is a detailed introduction to it:

1、 Basic Information

Brand: GE (General Electric)

Model: 531X305NTBAJG1

Purpose: Used to drive control systems, provide interfaces and connection functions, and transmit signals to different parts of the system

2、 Main features

Multi channel control: The 531X305NTBAJG1 typically has multiple control channels, which can be used to simultaneously monitor and control multiple industrial process variables.

Industrial grade design: specifically designed for industrial environments, with high anti-interference and electromagnetic interference resistance, ensuring the reliability of signal transmission.

Modular structure: Designed as a modular structure, it is easy to integrate into existing systems and supports quick installation and replacement.

High performance: Equipped with high-performance processors and sufficient storage capacity, it is used to execute complex control algorithms and logic, and store application programs, configuration data, historical data records, and alarm information.

Programmable: It has programmable functions that allow users to configure control logic and parameters according to specific application requirements.

Multiple electrical interfaces: Provides multiple wiring terminals for easy connection of external sensors, control devices, input/output signals, etc.

3、 Technical specifications

Power supply voltage: may include+5V DC, 15V DC regulated voltage, as well as non regulated DC 24V, AC 120V, etc.

Current capacity: Depending on different voltage levels, the current capacity may vary, such as 300mA, 500mA, 0.5A, etc.

Communication interface: Supports multiple communication protocols and interfaces, such as Ethernet, serial ports (RS-232, RS-485), Profibus, Modbus, etc., facilitating data exchange and communication with other devices and systems.

4、 Application Fields

Industrial automation: In industrial automation systems, it is used to control and monitor various motors, actuators, and other drive devices to improve the efficiency and flexibility of production lines.

Power system: In the power industry, it is used to control and monitor equipment such as generators and motors in power plants to ensure the stable operation of the power system.

Process control: used in industries such as chemical, petroleum, and pharmaceutical to monitor and adjust key parameters in the production process in real-time.

Data collection and processing: Connect to a data collection system to collect, process, and transmit data generated by sensors and instruments.

Drive system: Suitable for various drive systems, including motor drive, hydraulic drive, pneumatic drive, etc.

5、 Usage and maintenance

Installation: Follow the installation instructions in the product manual to ensure correct installation and connection.

Maintenance: Regularly clean and inspect the equipment to ensure it is in good working condition.

Troubleshooting: In case of equipment malfunction or abnormal situation during use, immediately stop using and contact professional personnel for inspection and maintenance.

In summary, GE 531X305NTBAJG1 is a feature rich and stable performance drive control terminal board widely used in industrial automation, power systems, process control and other fields.
