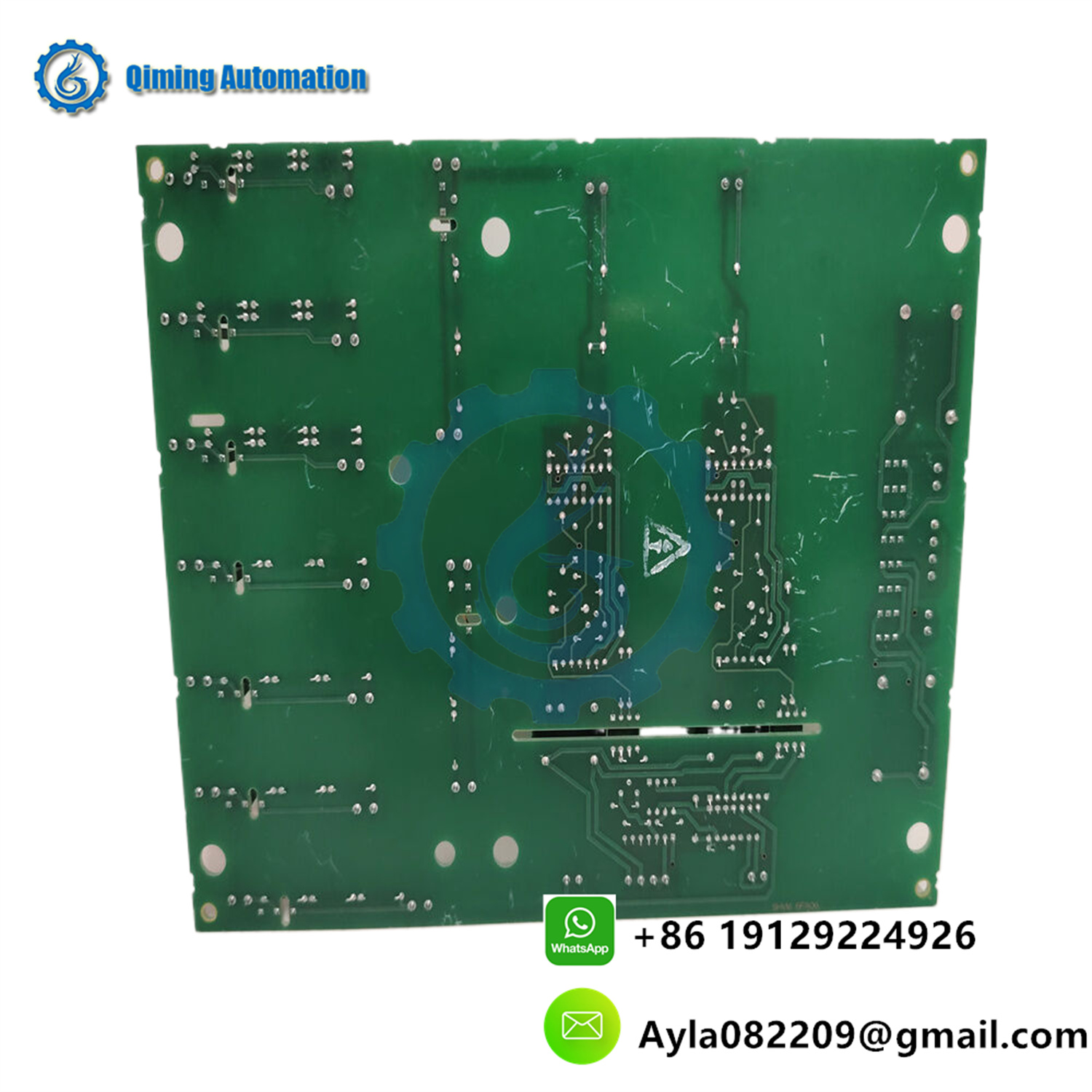

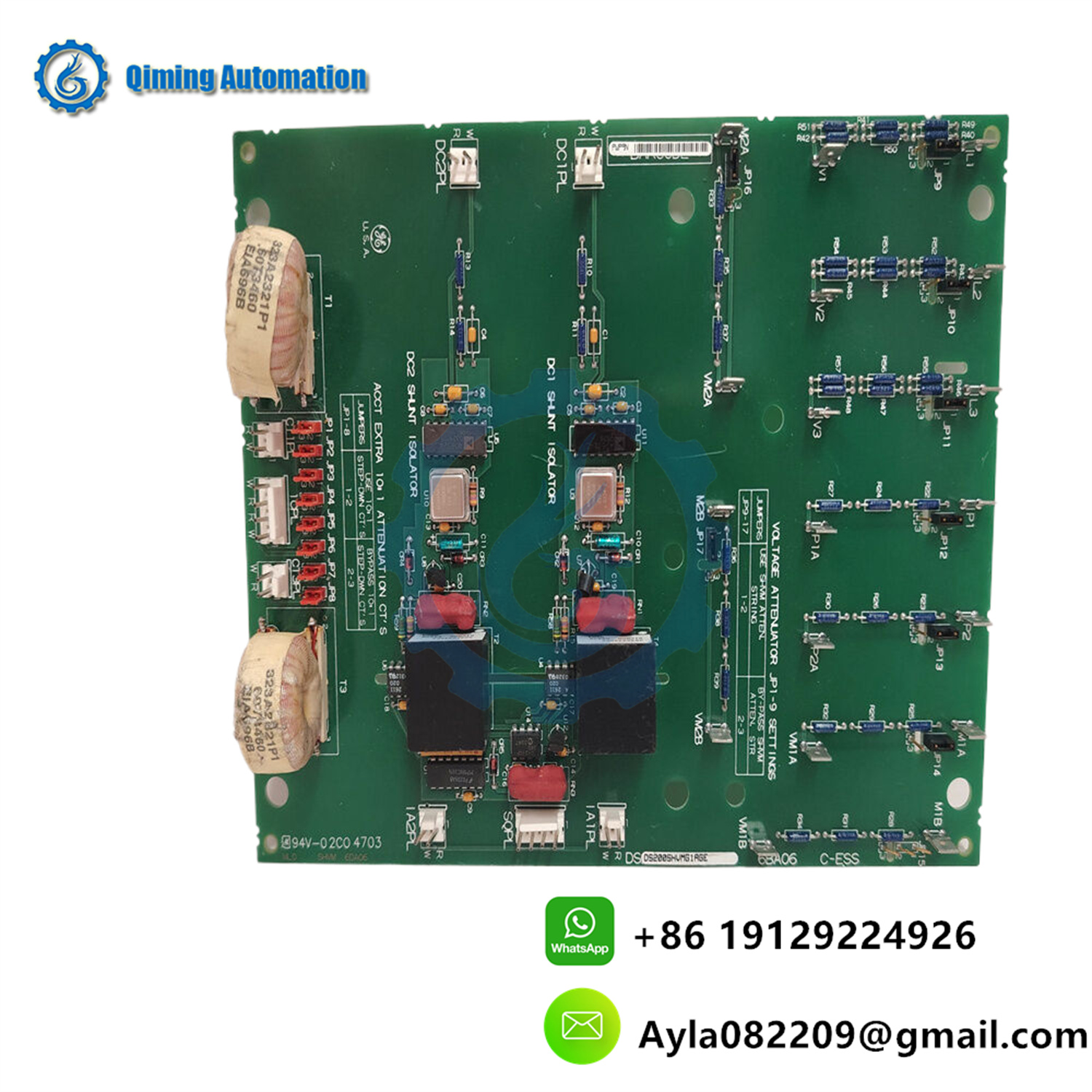

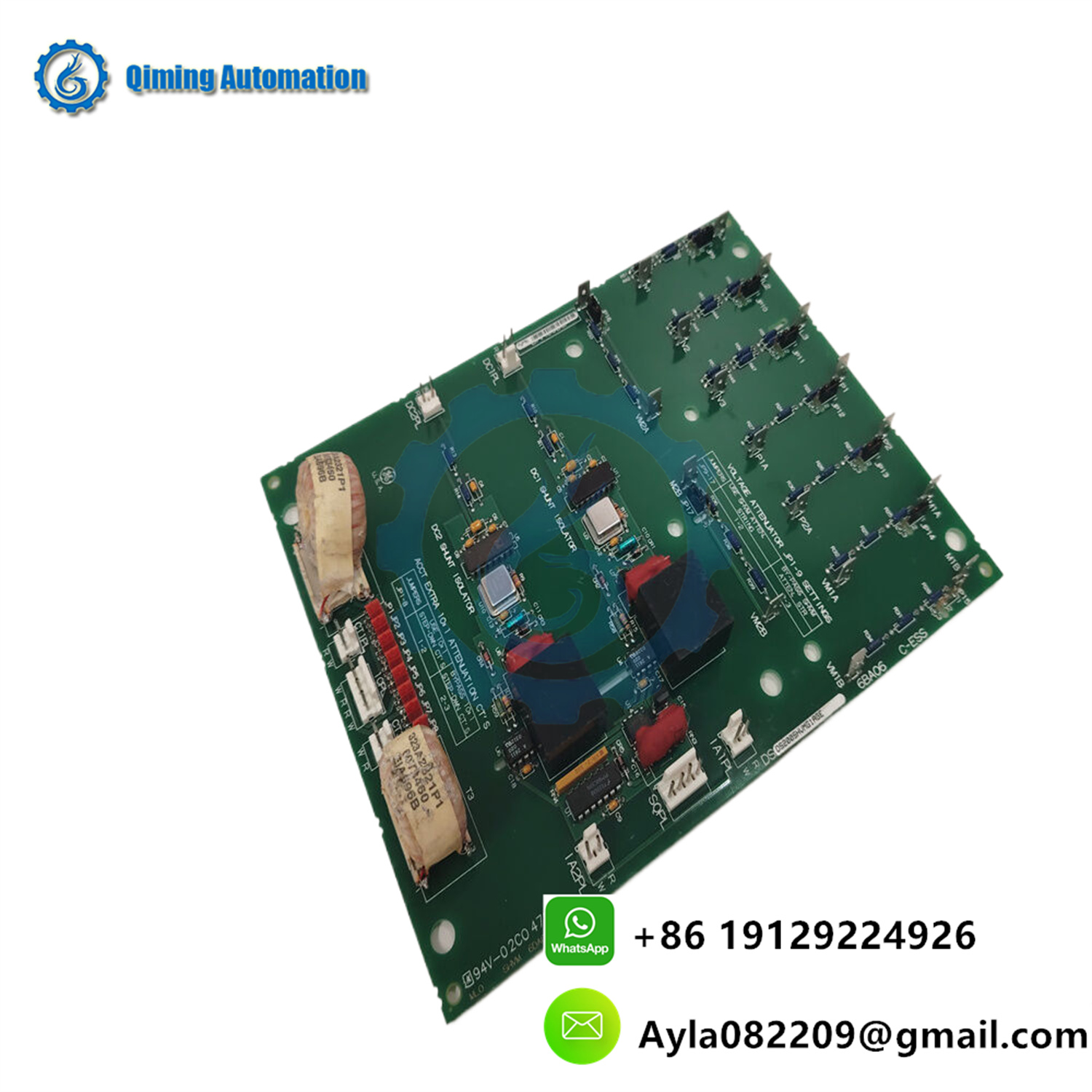

GE DS200SHVMG1AGE is a tension controller produced by General Electric (GE). The following is a detailed introduction to it:

1、 Product Overview

The GE DS200SHVMG1AGE tension controller is part of GE's industrial automation product line, designed specifically for various industrial application scenarios. This controller has high precision, high performance, and stability, which can meet the strict requirements of industrial production lines for tension control.

2、 Main features

Electrical specifications:

AC input voltage range: 115~230V.

AC input frequency range: 47~63Hz.

PFC (Power Factor Correction) complies with EN61000-3-2 D standard.

AC efficiency ≥ 75%; The DC input voltage can be selected as 12V or 24V, and the DC efficiency is ≥ 70%.

Protection function:

Has low ripple and low noise characteristics.

Provide short-circuit protection, overload protection, and overvoltage protection functions.

Voltage withstand strength input grounding: 1800Vac for 1 second.

Stability:

Input variation stability: ± 1% (typical value).

Output load stability: ± 5% (typical value).

Working conditions:

Working/storage temperature range: 0 ℃~50 ℃ (working)/-40 ℃~65 ℃ (storage).

Maintaining time ≥ 18mS.

P/G signal delay: Power on 100~500mS； off>1mS。

Electromagnetic compatibility and safety:

Electromagnetic compatibility complies with EN55022 class A and EN55024 standards.

Safety regulations comply with EN60950; CE LVD standard.

Physical specifications:

Dimensions: Width 150mm x Depth 140mm x Height 86mm.

Cooling method: Use 80mm x 80mm fans for heat dissipation.

3、 Application scenarios

The GE DS200SHVMG1AGE tension controller is suitable for various industrial production lines that require precise tension control, such as packaging, printing, textile, papermaking, and other industries. It can be used in conjunction with other industrial automation equipment to achieve functions such as automation control, monitoring, and data acquisition.
