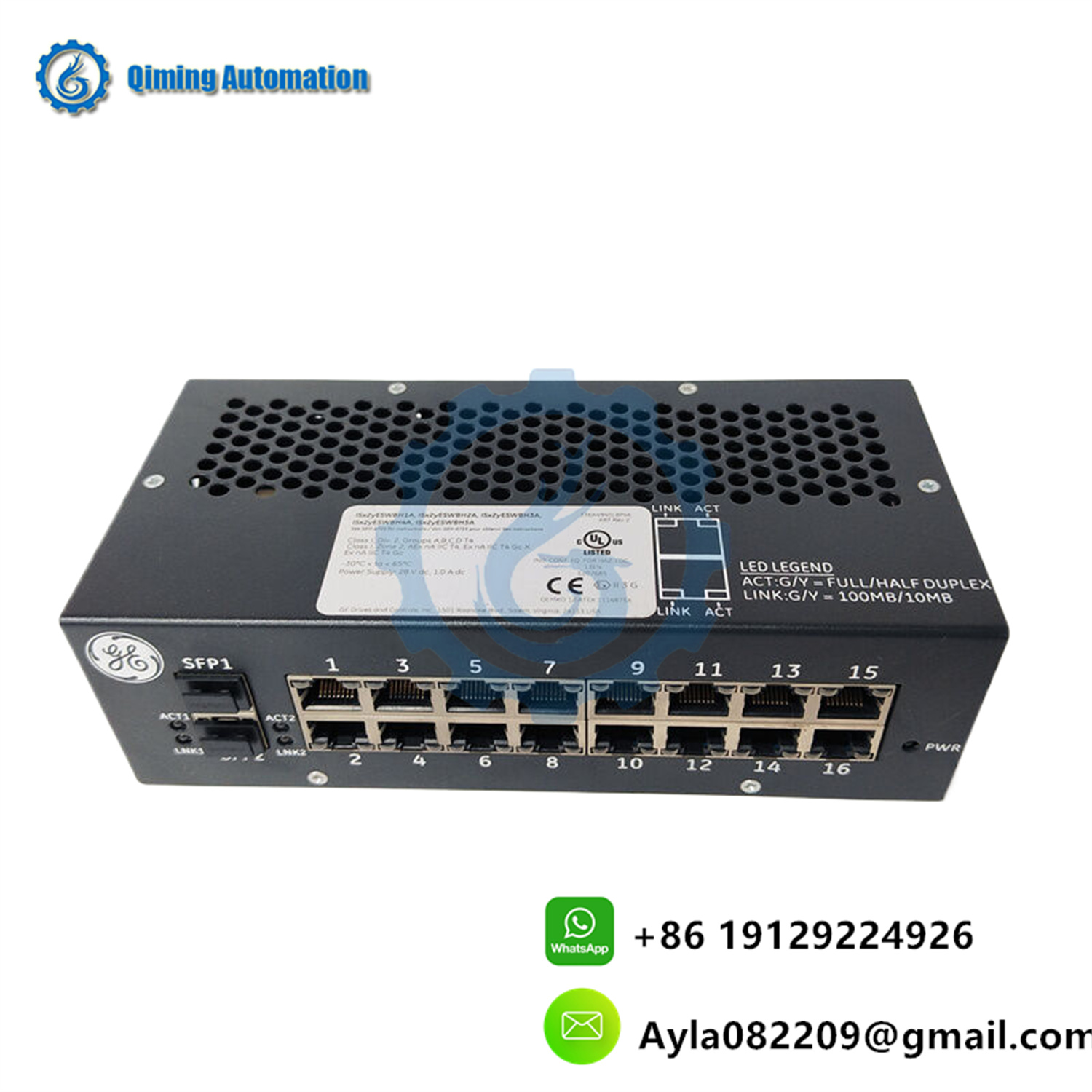

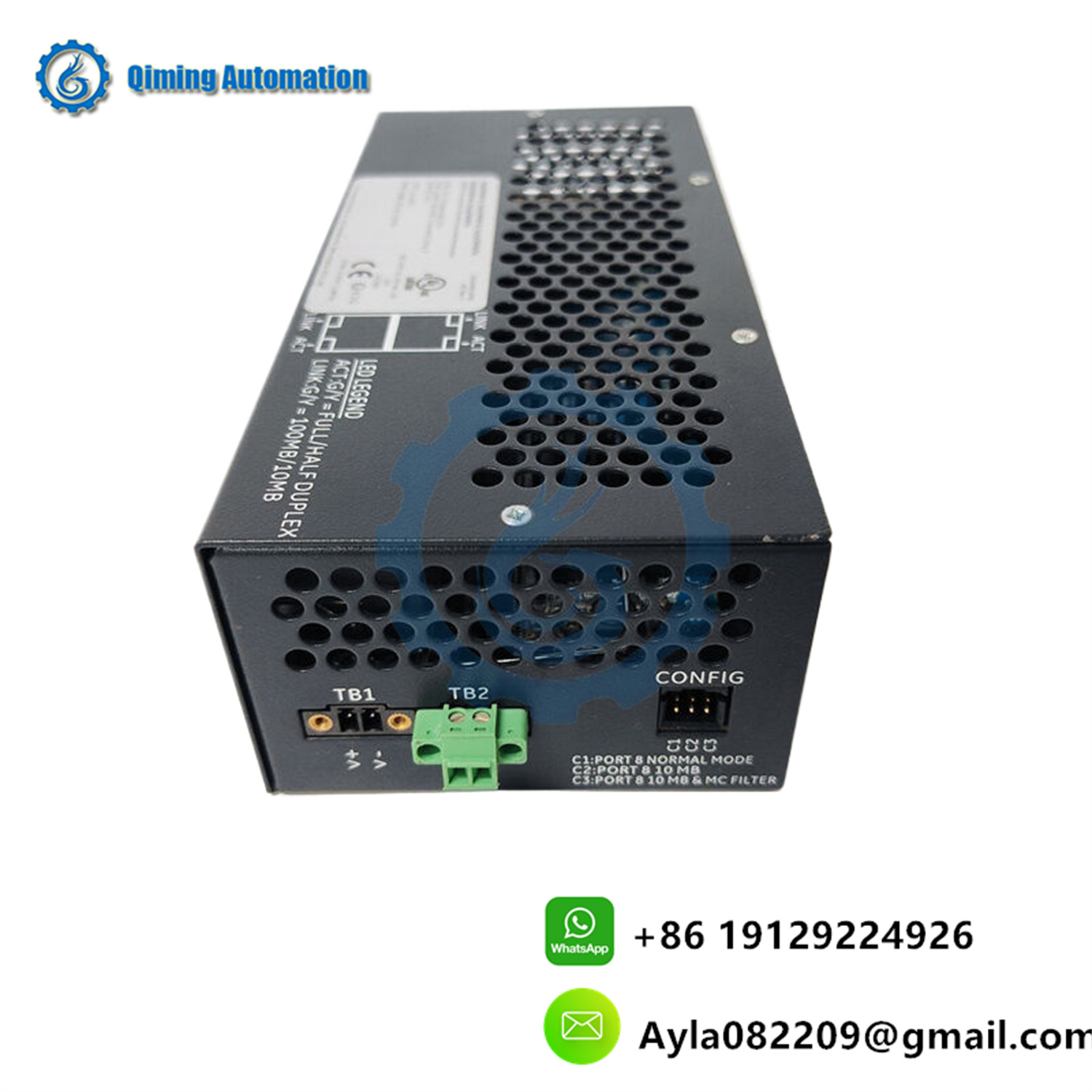

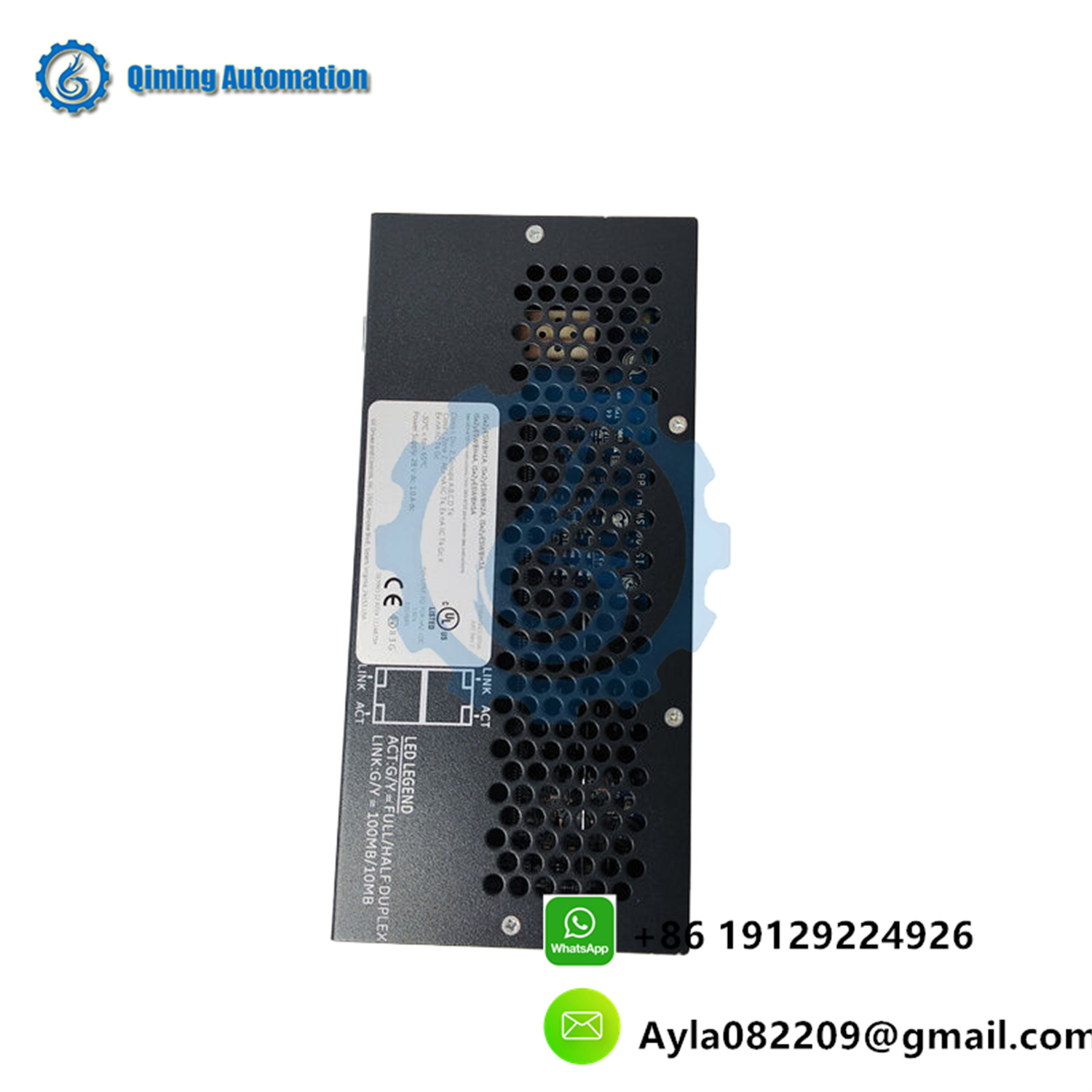

GE IS420ESWBH3A is an Ethernet IONet switch produced by General Electric (GE), which is an important component of the GE Speedtronic Mark VIe gas turbine control system. The following is a detailed introduction to GE IS420ESWBH3A:

1、 Product Overview

The GE IS420ESWBH3A switch is designed to meet the needs of real-time industrial control solutions, featuring high performance, high reliability, and easy maintenance. It adopts DIN rail mounting modules and is suitable for various industrial automation environments.

2、 Product Features

Port configuration:

The GE IS420ESWBH3A switch has 8 10/100BASE-TX copper ports, which support automatic negotiation function and can automatically adjust transmission speed and duplex mode according to the configuration of the connected devices.

compatibility:

This switch supports Ethernet standards such as 802.3, 802.3U, and 802. x, ensuring compatibility with various Ethernet devices.

Uplink:

Provide a 100 MBPS FX uplink port that supports HP-MDIX automatic sensing for easy connection with other network devices.

LED indicator light:

Each port is equipped with LED indicator lights to indicate the presence, activity status, duplex mode, and speed of the link, making it convenient for users to troubleshoot and monitor the status.

buffer:

The switch has a minimum buffer of 256kb and can store multiple data packets, ensuring smooth data transmission even in network congestion.

Media Access Control:

Supports 4k Media Access Control (MAC) addresses to ensure that devices in the network can communicate data correctly.

3、 Installation and maintenance

Installation method:

The GE IS420ESWBH3A switch can be installed in two ways: DIN rail installation or panel installation (installed on the back wall of the panel through a bracket), making it convenient for users to choose according to their actual application scenarios.

Power connection:

This switch needs to be connected to a 24/28V DC power supply of the distribution board to ensure stable operation of the equipment.

Cable connection:

According to the redundancy and requirements of the system, copper and/or fiber optic cables can be connected. However, it should be noted that the GE IS420ESWBH3A switch itself does not support fiber ports, only copper ports.

Connector:

The RJ-45 connector supports multiple insertions and removals, with an expected lifespan of 200 insertion/removal cycles. This provides users with a convenient cable connection method and ensures the reliability of the connection.

4、 Application Fields

The GE IS420ESWBH3A switch is widely used in industrial automation, energy, transportation, manufacturing, and other fields. It can meet the reliable, efficient, and secure network communication needs of these industries, providing stable data transmission and real-time control functions.
