GE IS200TRLYH1BHH is a high-performance and highly reliable industrial control module produced by General Electric (GE). The following is a detailed introduction to the product:

1、 Product Overview

The GE IS200TRLYH1BHH module is designed for turbine system controllers, with excellent stability and transmission speed, capable of performing well in various complex environments. As an important component of GE's industrial automation product line, this module provides advanced solutions for various industrial application scenarios.

2、 Main functions and features

Ethernet interface:

Provide Ethernet interfaces to enable network communication and data exchange between devices.

Support high-speed data transmission to ensure real-time control commands and monitoring data.

Multiple communication protocols supported:

Supports multiple communication protocols, such as IEC 61850, DNP 3.0, Modbus, etc.

Easy to seamlessly connect and integrate with other devices and systems.

Advanced features:

Support advanced features such as voting coil driven feedback and socket sealed mechanical relay MOV suppression.

Improve the reliability and security of the system to meet the needs of complex industrial applications.

High reliability and stability:

Using highly reliable components and designs to ensure long-term stable operation in harsh industrial environments.

Provide multiple protection mechanisms, such as overload and overheating protection, to enhance the security of the system.

3、 Physical characteristics and structure

Physical description:

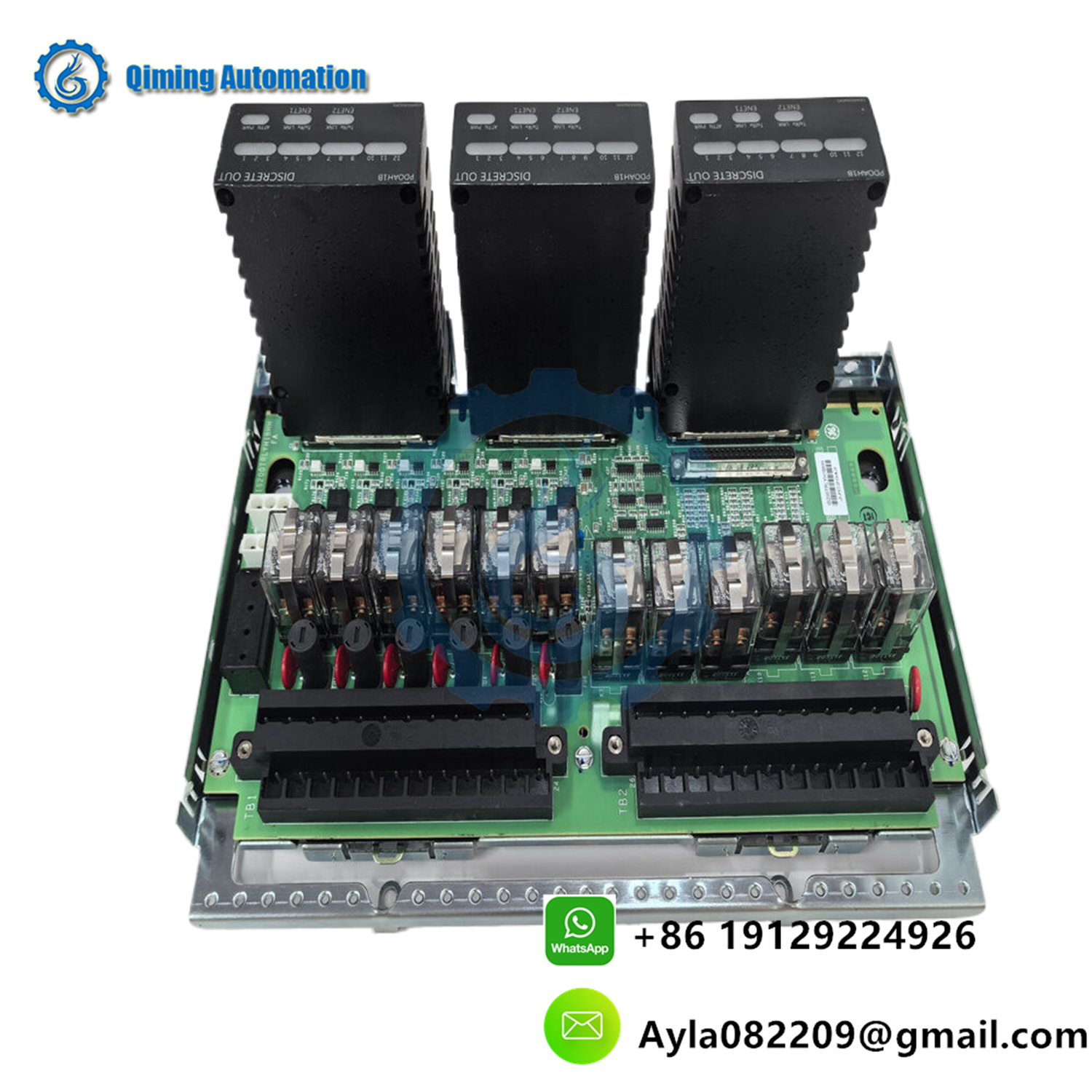

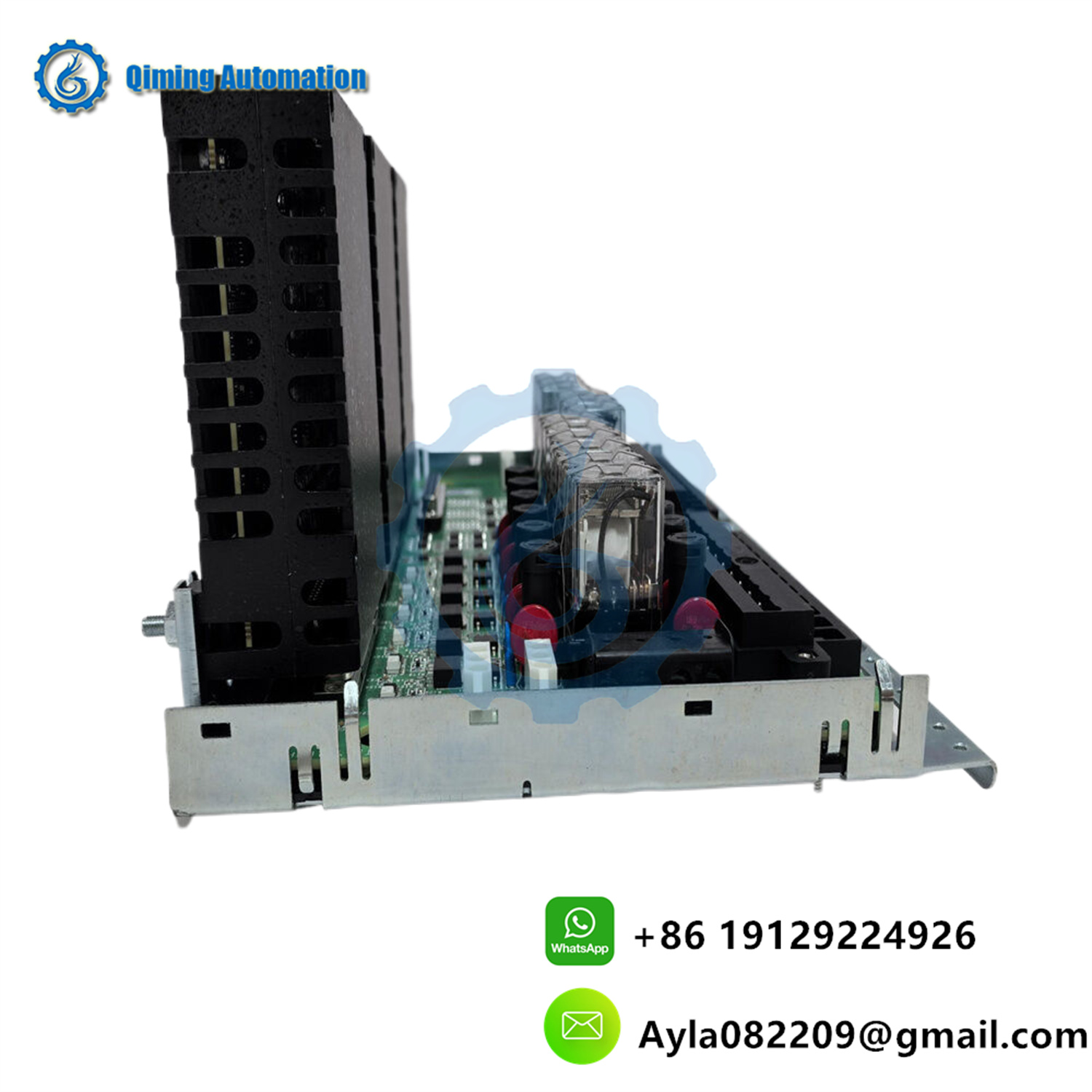

The IS200TRLYH1BHH module contains two large black terminal blocks on its left edge, each with 24 silver metal terminals, for a total of 48 terminals.

Four connector ports are located at the right boundary of the module, with three connector ports aligned vertically at the edge and the last one parallel to the bottom connector port.

Internal components:

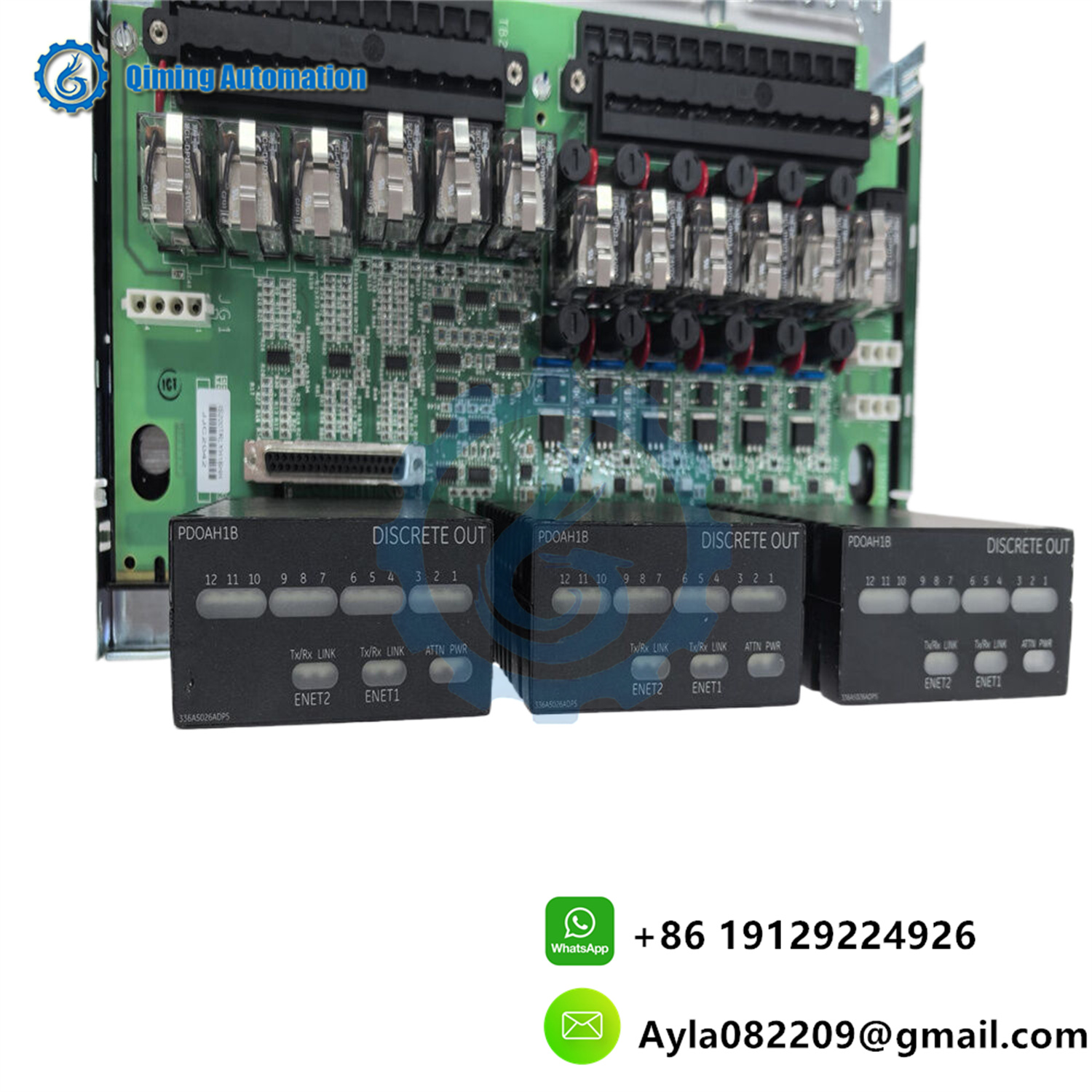

There is a long string of relays near the center of IS200TRLYH1BHH, which are white and black with transparent covers shaped like cubes.

These components are connected to the PCB with black wires, and each relay has a black circular transistor on both sides.

4、 Application Fields

The GE IS200TRLYH1BHH module is mainly used in the field of industrial automation, especially playing an important role in turbine system controllers. Through Ethernet interface and multiple communication protocols, this module can easily communicate and exchange data with other devices, achieving precise control and monitoring of the turbine system. In addition, its high reliability and stability make it an ideal choice for various complex industrial applications.
