GE IS200AEPCH1BAA is a circuit board component manufactured by General Electric (GE), primarily used in industrial automation and control systems. The following is a detailed introduction about the product:

1、 Product Overview

The GE IS200AEPCH1BAA, as a replacement component for the GE Speedtronic Mark VI system, is a powerful and reliable circuit board assembly. It is designed to meet the control requirements of steam, hydraulic, and gas industrial steam turbines, ensuring their reliable and safe operation.

2、 Main functions and features

Analog input/output function:

IS200AEPCH1BAA provides high-resolution analog input and output channels, allowing for precise measurement and control of voltage and current signals.

The input voltage range includes 0-10V- 10-10V and 4-20mA, the output voltage range also includes these options.

The resolution is up to 16 bits, ensuring precise capture and processing of signals.

Communication protocol:

Supports Profibus DP communication protocol, facilitating data exchange and communication with other devices in industrial automation systems.

Work environment:

It has a wide operating temperature range (-40 ° C to+70 ° C) and is suitable for various harsh industrial environments.

Physical characteristics:

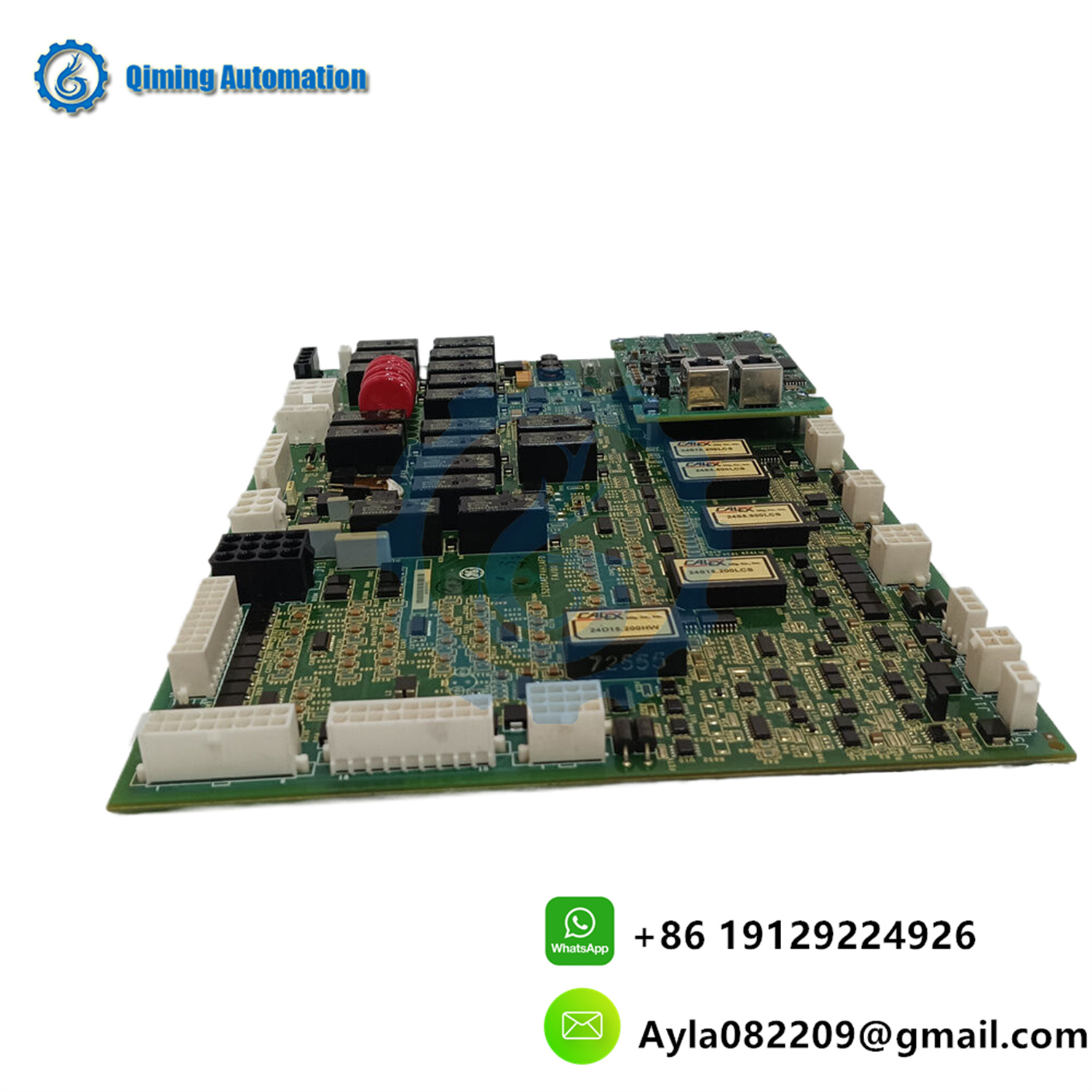

This component adopts a rectangular card design without additional panels, and each corner is designed with factory made drill holes for easy installation.

Usually, an auxiliary board or sub board is installed on the surface near the center of the motherboard, and is mounted together with brackets and screws.

Component composition:

The auxiliary board consists of FPGAs and other integrated circuits, female connectors, transistors, diodes, resistors, and capacitors.

The board also includes components such as terminal boards, socket connectors, integrated circuits, and three fuses.

3、 Application Fields

The IS200AEPCH1BAA circuit board component is widely used in the following fields due to its high performance and reliability:

Process control system:

Used to monitor and control key parameters in various industrial processes, ensuring the stability and safety of the production process.

Industrial automation:

In automated production lines, providing precise input and output signals supports precise control and coordinated operation of equipment.

Data collection system:

Used to collect data from industrial equipment for real-time analysis and processing, providing support for decision-making.

4、 Summary

GE IS200AEPCH1BAA is a high-performance and reliable circuit board component suitable for various applications in industrial automation and control systems. Its high-resolution analog input/output channels, wide operating temperature range, and support for Profibus DP communication protocol make it an ideal choice in the industrial field. Meanwhile, its rectangular card design and easy to install features also facilitate user use and maintenance.
