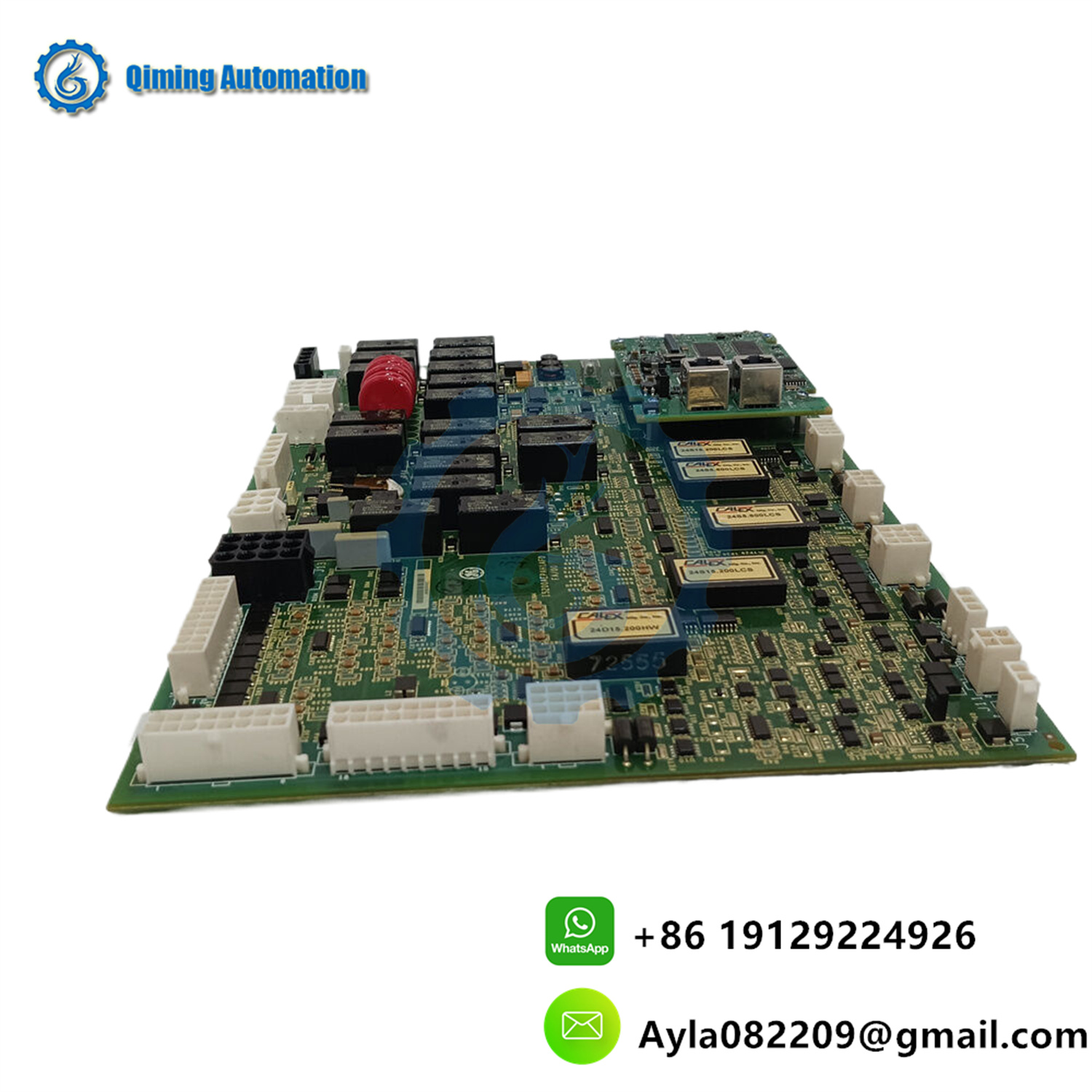

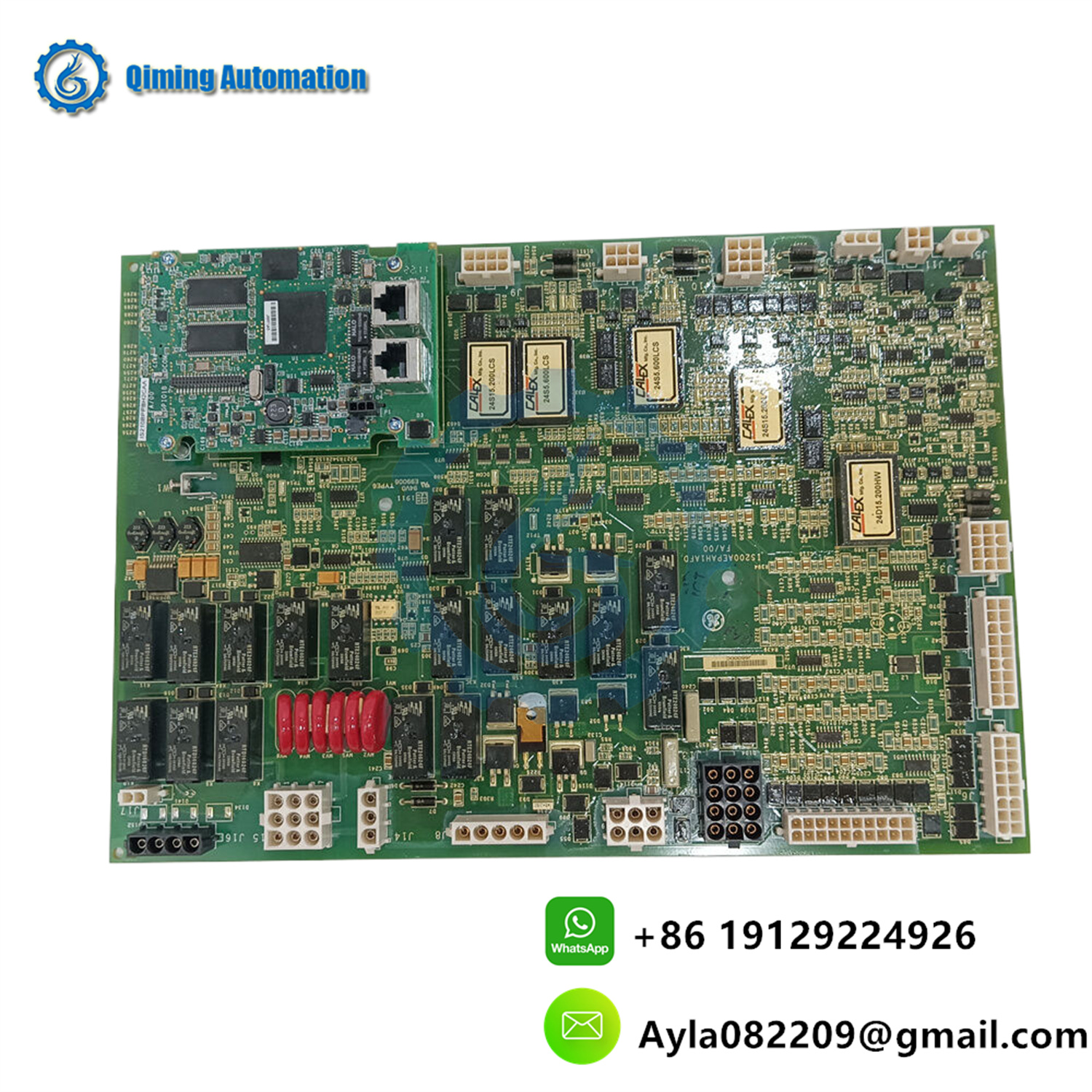

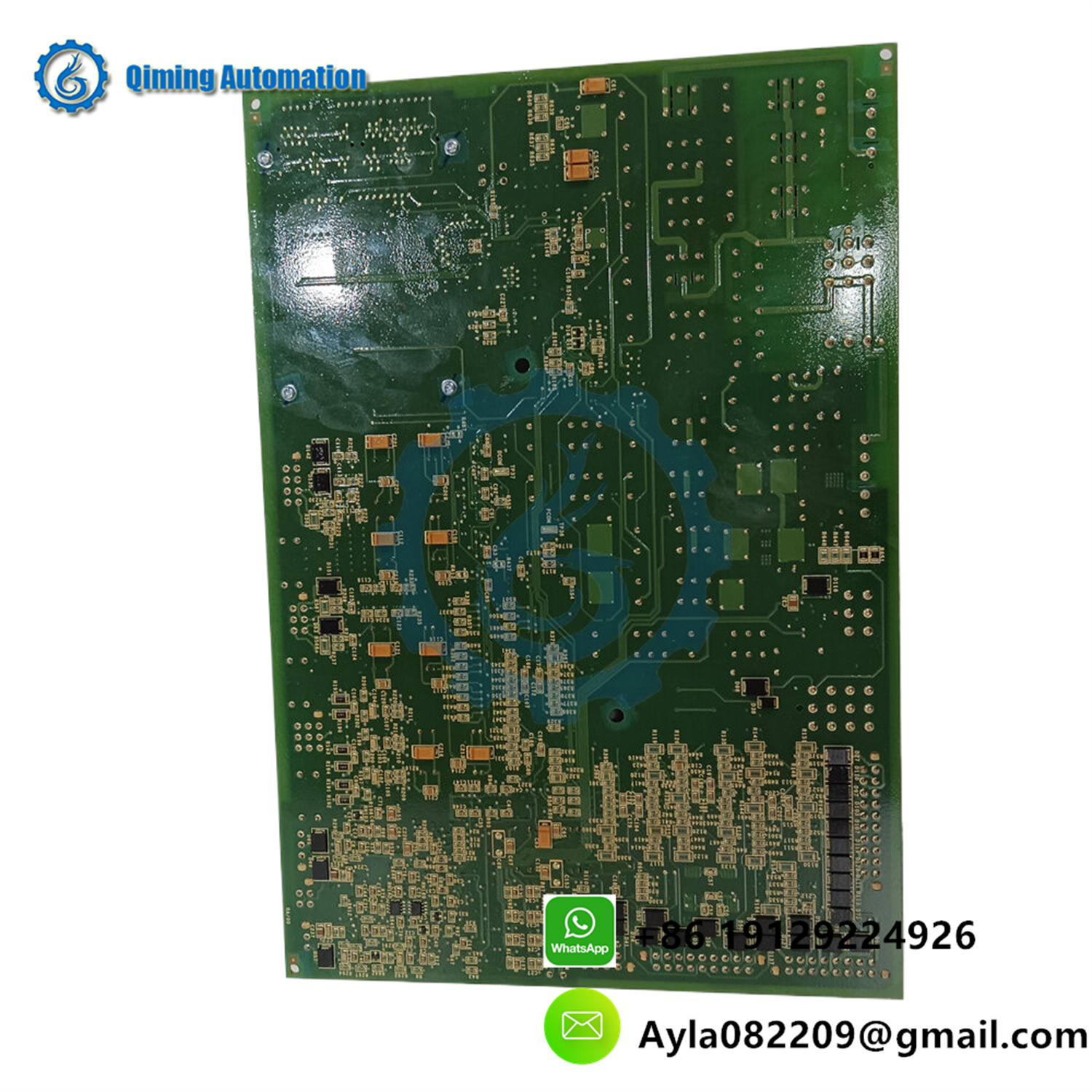

GE IS200AEPAH1AFD is a control display panel produced by General Electric (GE), commonly used in the fields of industrial automation and control systems. The following is a detailed introduction to the product:

1、 Product Overview

As a control display panel under the GE brand, GE IS200AEPAH1AFD integrates advanced display and control technology, aiming to provide users with intuitive and accurate equipment operation status information and achieve precise control of the equipment. This panel is suitable for industrial automation systems of various scales and can meet the needs of different application scenarios.

2、 Product Features

Display function:

Provides a clear display screen for displaying the operating status, parameter settings, and other information of the device.

Supports multiple display modes, making it convenient for users to choose according to their actual needs.

Control function:

Integrated with multiple control buttons and adjusters, allowing users to perform device parameter settings, start/stop control, and other operations.

Supporting both remote and local control methods improves the flexibility and convenience of control.

Parameter setting and adjustment:

Users must first check and adjust the device, wiring, and initial startup, including checking the motor, power supply, and initial settings, actively adjusting the current circuit, checking the motor direction, correcting the speed response, setting weak magnetic fields, adjusting the speed circuit, and recording parameters.

High precision:

The product has high precision, which can ensure the stability and accuracy of equipment operation.

Strong compatibility:

Seamless integration with other control systems and equipment from GE provides powerful control functions.

Modular design:

Adopting modular design, it is convenient for users to install, disassemble, and maintain.

Environmental adaptability:

It can operate stably in harsh environments such as high temperature, vibration, and electromagnetic interference, ensuring the reliability and stability of the equipment.

3、 Technical parameters

Input voltage: 110~380V

Output voltage: 90~320V

Rated power: 9KW

Input speed: 0~100% (rpm)

Output speed range: 0~100%

Armature current: 4~32A

Single phase power supply: 110/220V/380V

Armature voltage: 90/180/320V

Magnetic field voltage: 100/210/360V

Magnetic field current: 3A

4、 Application Fields

The GE IS200AEPAH1AFD control display panel is widely used in the following fields:

Industrial automation:

In industrial automation systems, as a key component, precise control and optimized operation of equipment are achieved to improve production efficiency and quality.

Energy Management:

In the energy management system, responsible for the automation control of equipment, improving energy utilization efficiency, and reducing energy consumption.

Power system:

Used to control the operation status of power equipment such as gas turbine generators, ensuring the stable operation of the power system.

Chemical system:

In the chemical production process, it is used to control the operation status of various pumps, valves and other equipment to ensure the smooth progress of the production process.

5、 Summary

GE IS200AEPAH1AFD is a high-performance and highly reliable control display panel that integrates advanced display and control technologies. It provides intuitive equipment operation status information and precise control functions, suitable for industrial automation systems of various scales. Meanwhile, its modular design, high precision, and strong compatibility make this product have broad application prospects in the fields of industrial automation and energy management.
