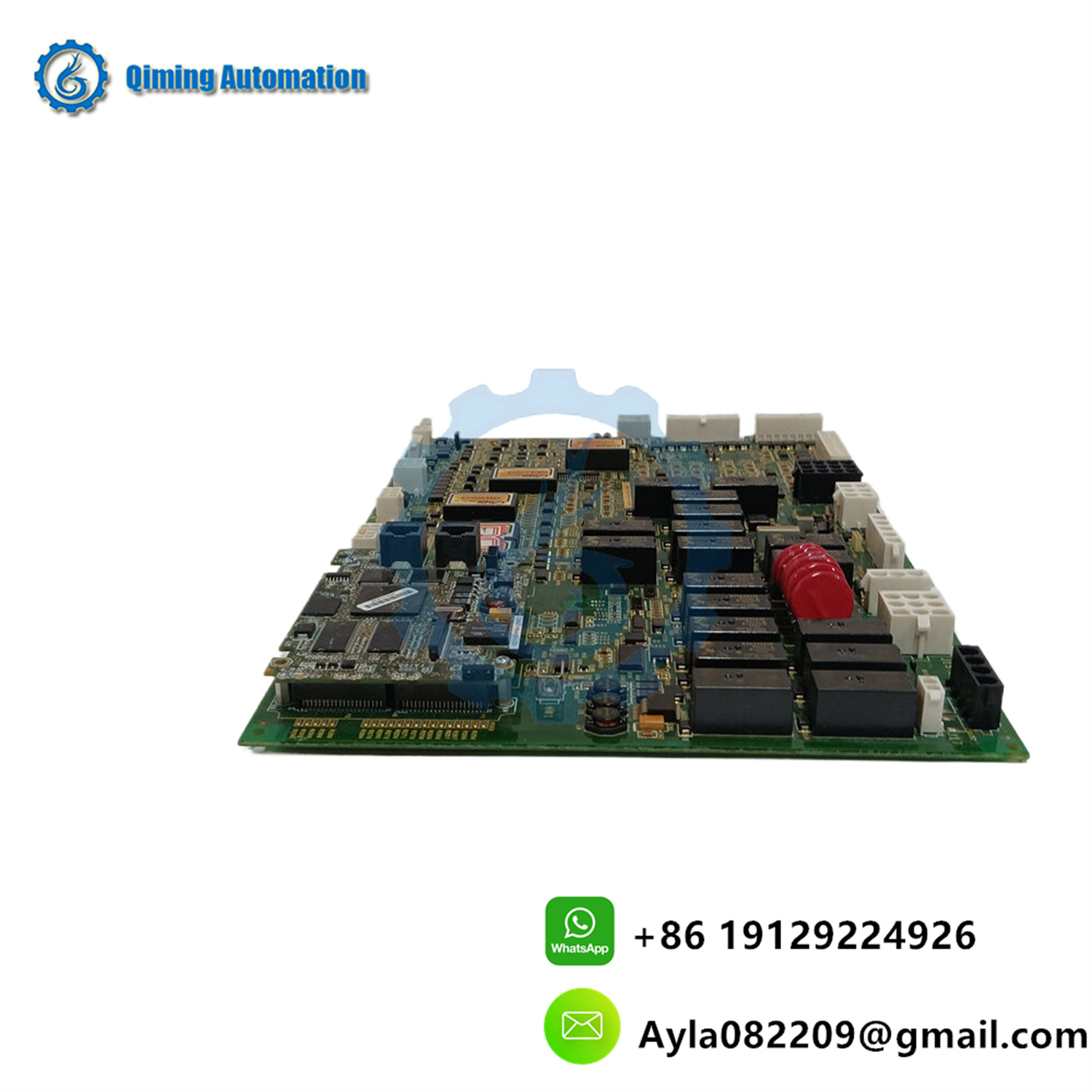

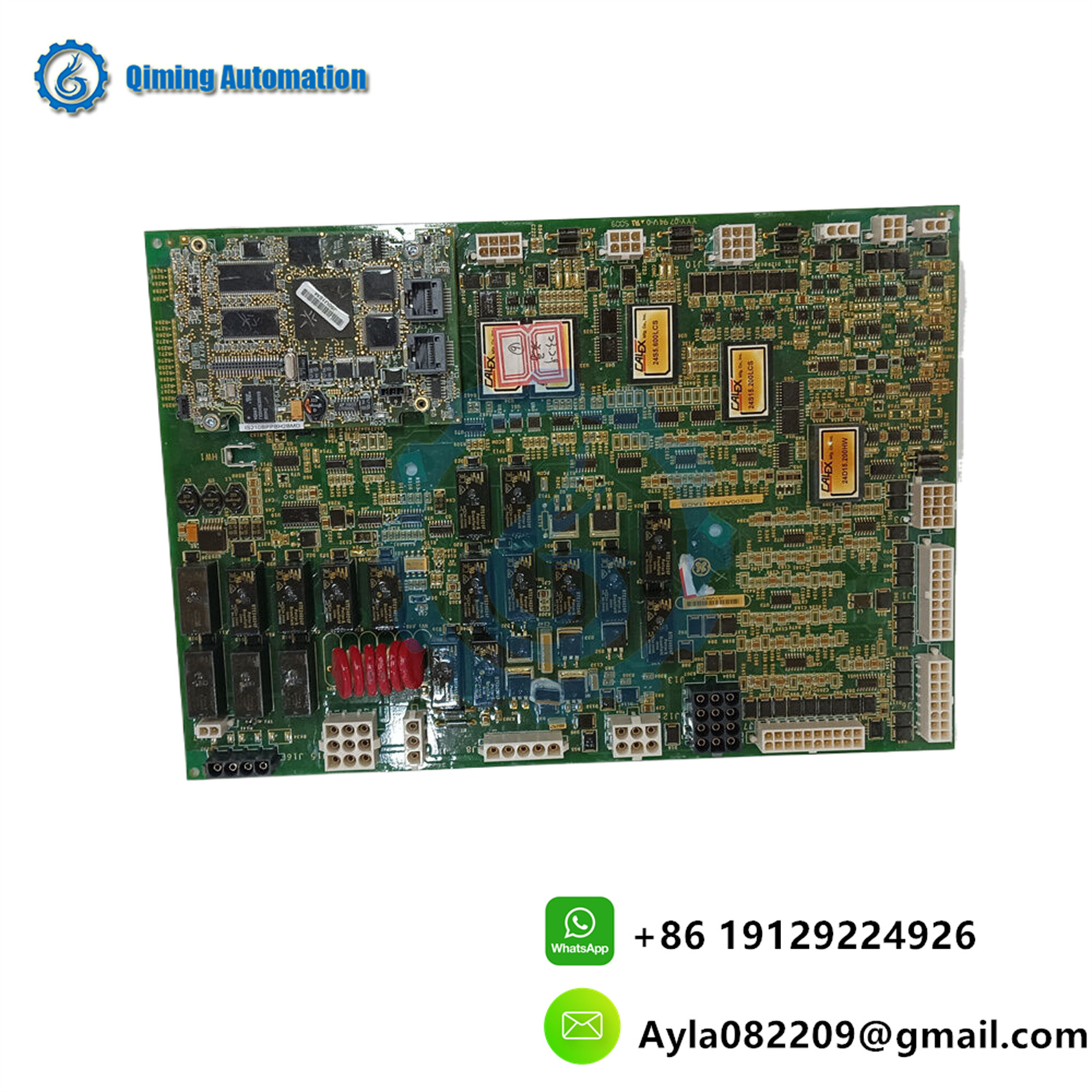

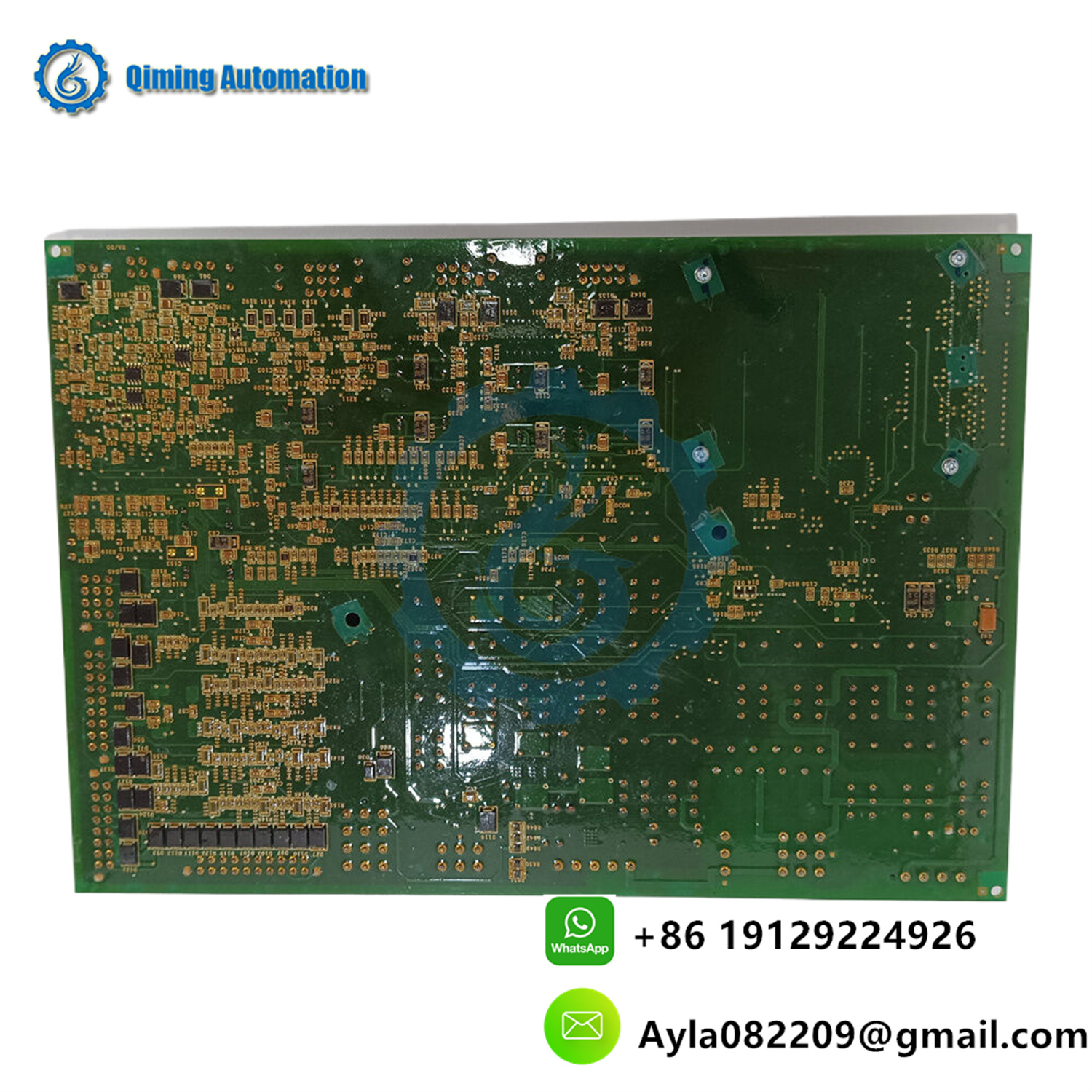

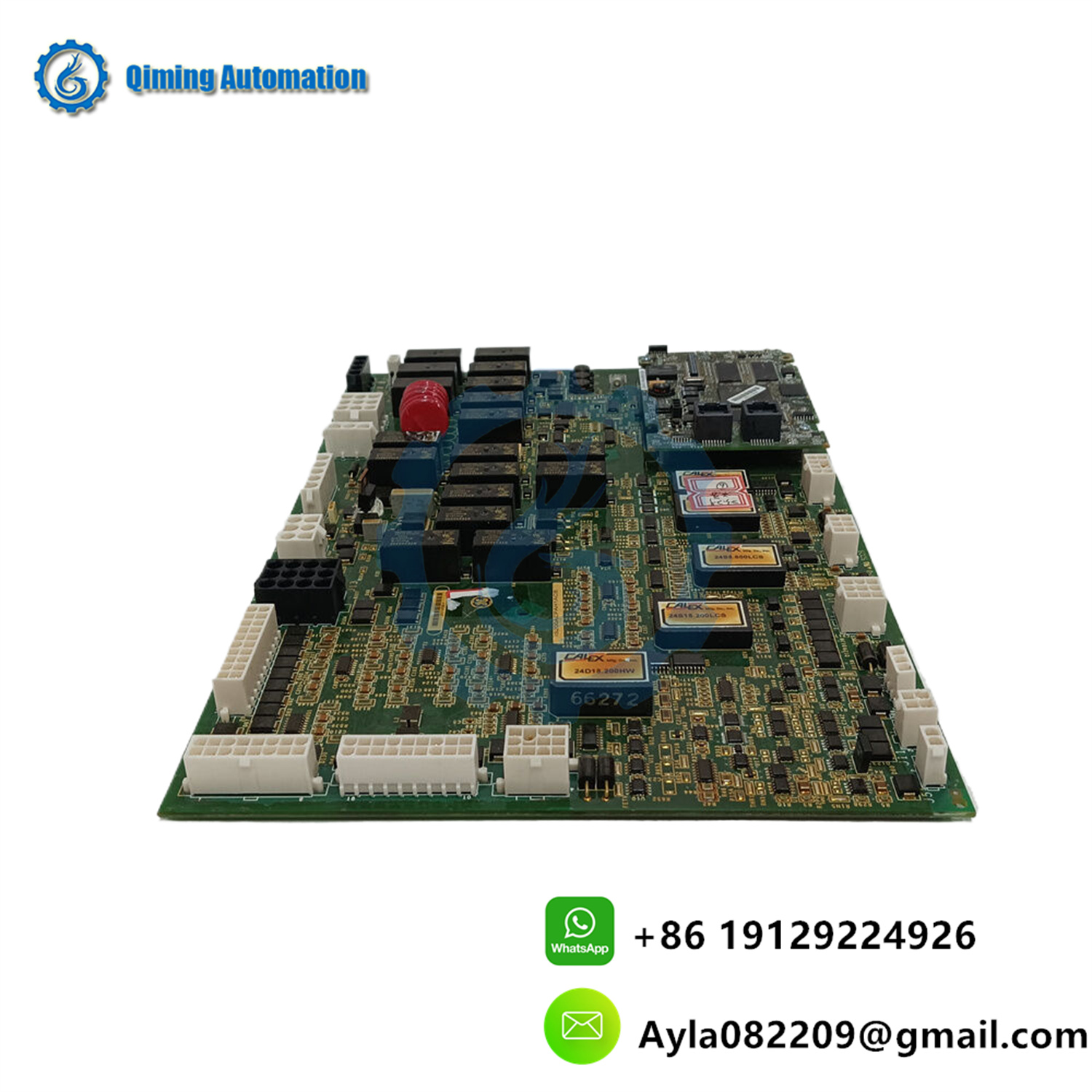

GE IS210BPPBH2BMD is a Mark VI board component manufactured by General Electric (GE), specifically designed for steam or gas turbine management. The following is a detailed introduction about the product:

1、 Basic Information

Brand: GE General Electric

model: IS210BPPBH2BMD

Type: Mark VI board component (small auxiliary board/processor card)

Application scenario: Steam or gas turbine management

2、 Product Features

Connectivity: IS210BPPBH2BMD can be connected to a larger WETA board by threading screws through four drilled holes to its main board, located near each corner of the board.

Construction: The board has small cutouts on three edges, filled with two female plugs, one of which is a three position (or two position, depending on the description) plug, and the other plug is long and narrow, with two female socket connectors.

Components: This board consists of a transformer, transistor, inductor coil, and two crystals/oscillators. It also includes two LED components placed side by side along one side of the circuit board.

Identification and Code: The board is marked with the GE logo and includes codes such as Type 6, FA/00, and E99006.

3、 Functions and Applications

Function: As part of the Mark VI system, IS210BPPBH2BMD plays an important role in steam or gas turbine management, which may involve monitoring, control, and data processing functions.

Application: Suitable for fields that require high-precision and high reliability power conversion or servo control, such as aviation, petroleum, automotive, and mining.

4、 Maintenance and Precautions

Power outage handling: When the control station is completely powered off, there may be situations such as two system alarm red lights on the monitoring screen, communication interruption, and data not refreshing. At this time, emergency handling or parking should be carried out immediately, and on-site operations should be carried out.

Safety advice: For more information on circuit board components, installation procedures, and safety advice, please refer to the manufacturer's publications.
