SPECIFICATIONS

Part No.: IS215UCVGM06A
Manufacturer: General Electric
Product Type: Application Control Layer Module
Series: EX2100
Country of Manufacture: United States(USA)

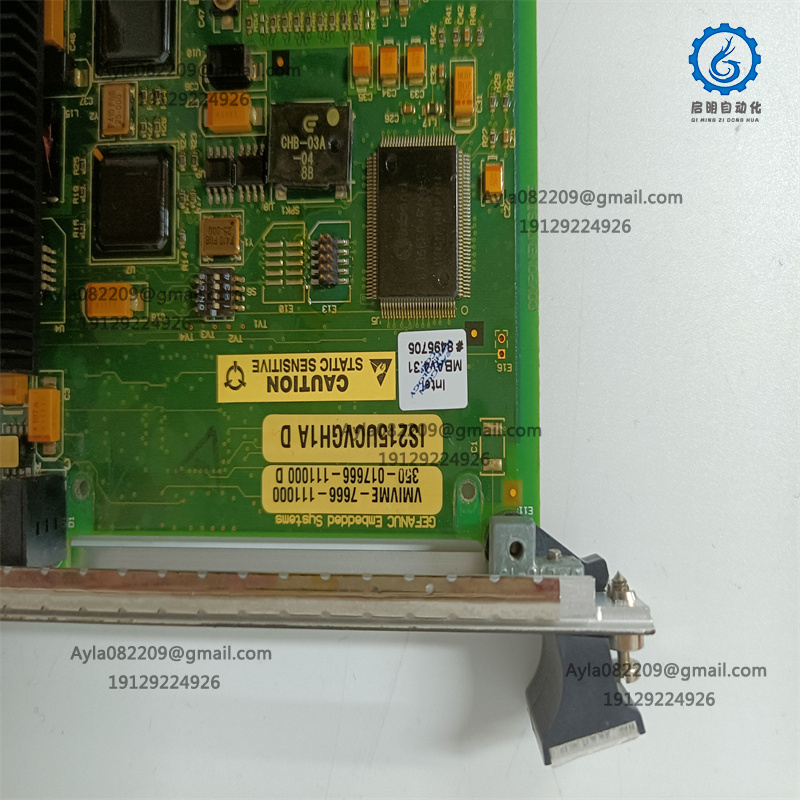

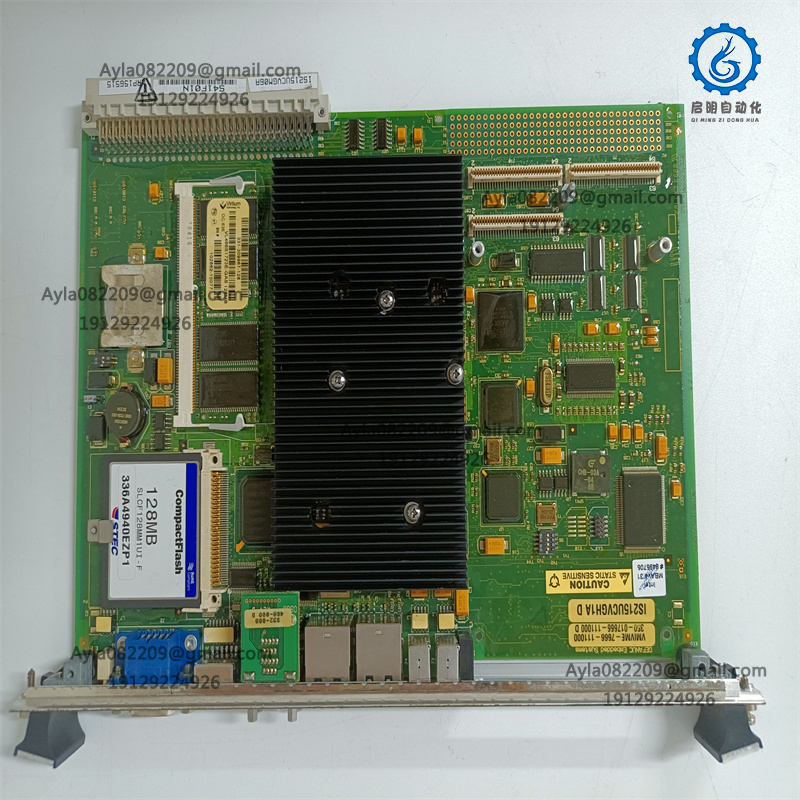

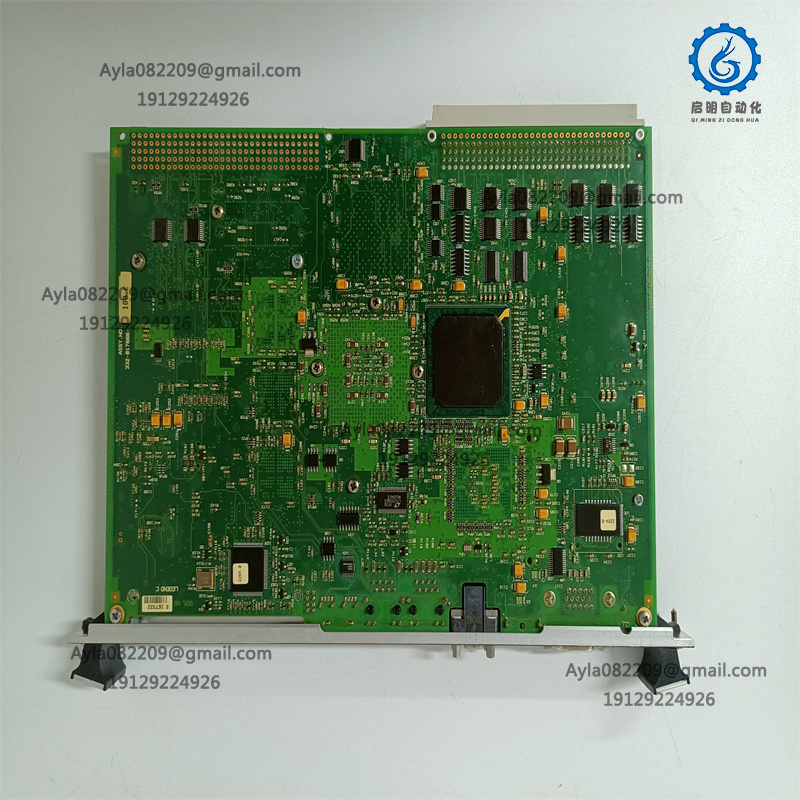

IS215 series is a Application Control Layer Module developed by GE. A microprocessor-based master controller known as an Application Control Layer Module (ACL) is used to perform multiple functions over communication networks such as EthernetTM and ISBus. The ACL fits into two half-slots in a standard Innovation Seriesô drive or EX2100 exciter board rack. The control cabinet houses the ACL and the board rack.

Features

• The ACL's P1 connector (4-row 128-pin) plugs into the Control Assembly Backplane Board in drive applications (CABP). The ACL in the EX2100 exciter is mounted in the Exciter Backplane (EBKP). A microprocessor-based master controller known as an Application Control Layer Module (ACL) is used to perform multiple functions over communication networks such as EthernetTM and ISBus.
• The ACL fits into two half-slots in a standard Innovation Series drive or EX2100 exciter board rack. The control cabinet houses the ACL and the board rack. The ACL's P1 connector (4-row 128-pin) plugs into the Control Assembly Backplane Board in drive applications (CABP). The ACL in the EX2100 exciter is mounted in the Exciter Backplane (EBKP).

IS215 series Hardware Features

The ACL's integrated circuits provide the following features:

• Central processing unit (CPU)
• Peripheral component interconnect (PCI) controller
• Level 2 cache of 128 Kbytes
• 8 MB of dynamic random access memory (DRAM)
• 4 MB of flash memory basic I/O system (BIOS)
• Internet Protocol (Ethernet)
• Bus target interface
• COM1 and COM2 serial ports
• Ethernet

• ISBus communication ports
