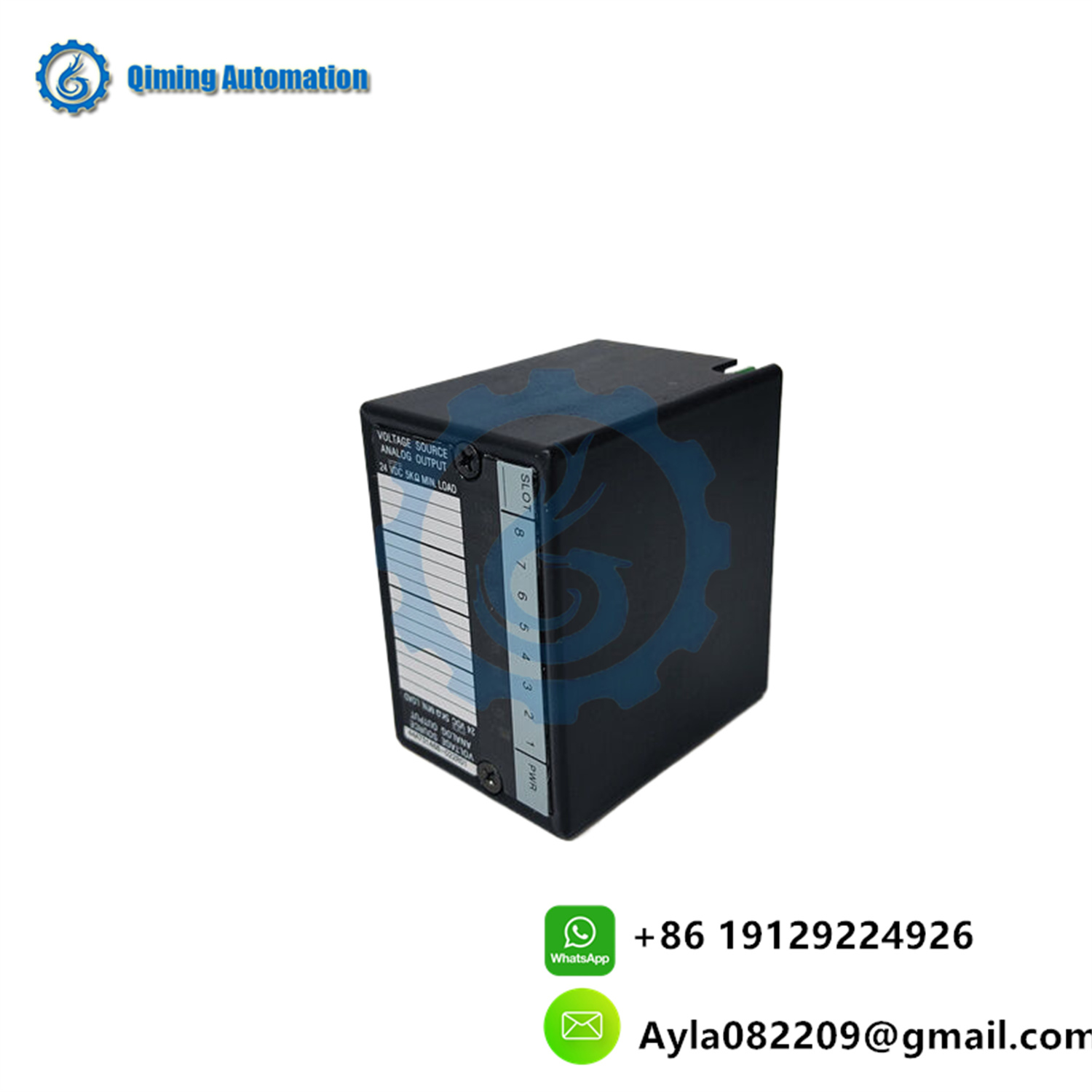

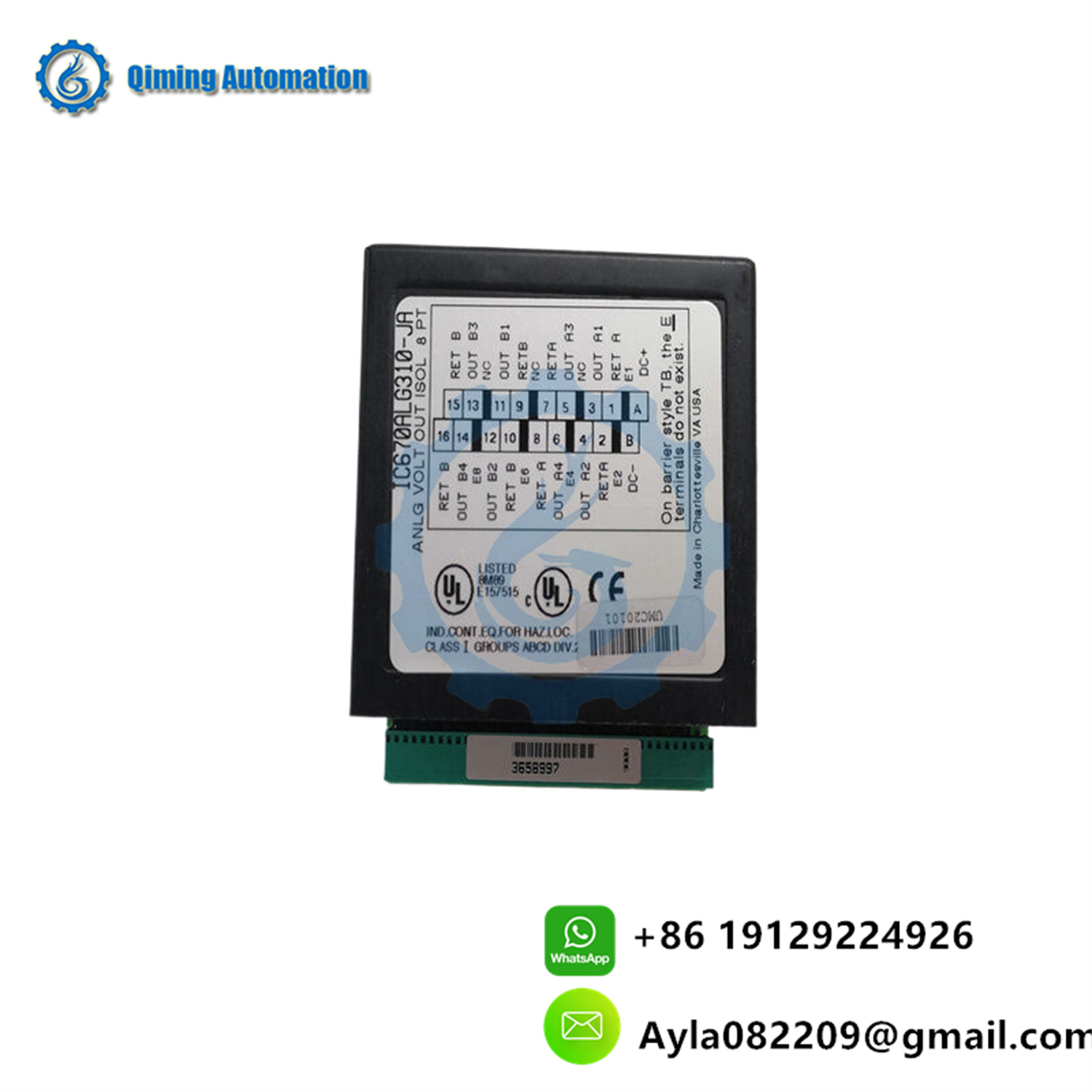

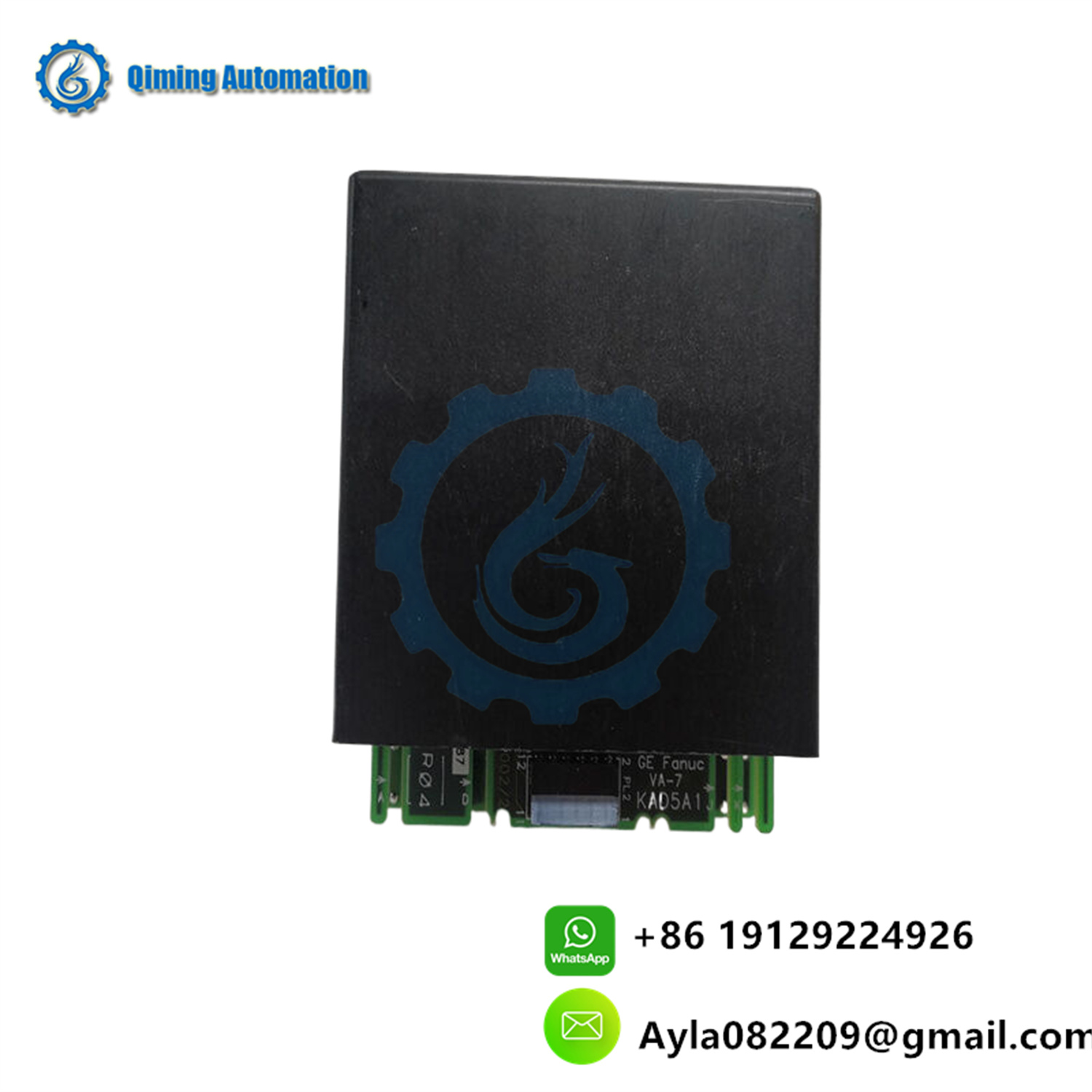

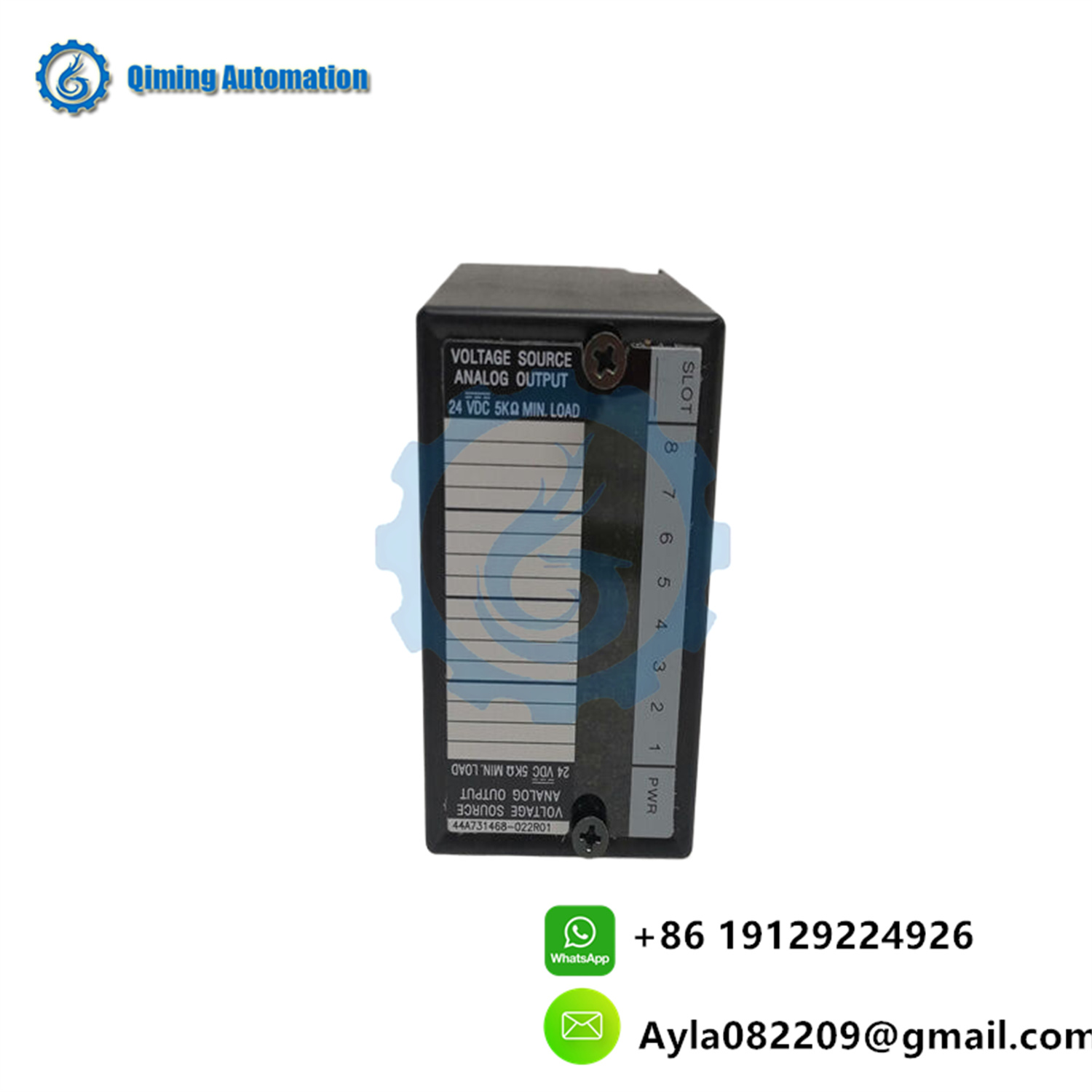

GE IC670ALG310 is a high-performance controller module or analog output module. The following is a detailed introduction to the product:
1、 Product Overview
The GE IC670ALG310 module is designed for industrial automation and control systems, with the ability to collect, process, and output analog signals. Its high precision, high reliability, and configurability make it perform well in various complex industrial environments.
2、 Main functions
Analog signal acquisition:
The IC670ALG310 module typically has multiple analog signal input channels for connecting sensors, transmitters, or other analog signal sources.
High resolution ensures accurate measurement and acquisition of analog signals.
Data processing:
The module has data conversion function, which can convert the collected analog signals into digital signals for further processing by the control system.
Analog output:
For the analog output module version, IC670ALG310 provides multiple analog voltage output channels, and the scaling ratio of each channel can be configured by the user.
Supports an output voltage range of -10V to+10V with a resolution of 14 bits.
Communication and Interface:
Modules are typically equipped with communication interfaces that allow for data exchange and communication with control systems or other devices.
Diagnosis and self inspection:
Built in diagnostic and self checking functions are used to detect module status and performance issues, ensuring stable system operation.
Alarm function:
Users can set alarm functions for different events. When the output value does not meet the 50mV requirement of the module's maximum or minimum output setting, the module will trigger an alarm.
3、 Technical features
Configurability:
Modules typically have configurable input ranges, allowing users to choose the appropriate input range based on application requirements.
The output module also supports independent channel configuration, including output range and proportional parameters.
High reliability:
Designed for industrial environments, it has high reliability and vibration resistance, ensuring stable operation under harsh conditions.
Multiple input types:
Supports multiple types of analog inputs, including voltage, current, temperature, and pressure.
Data recording:
The module can record historical data of analog signals for subsequent analysis or report generation.
4、 Application Fields
The GE IC670ALG310 module is widely used in the following fields:
Industrial control systems play an important role in the control and management of various production lines.
Process control: suitable for process monitoring and regulation in industries such as chemical, pharmaceutical, and food processing.
Data collection: used to collect and analyze key data in the production process, providing support for optimizing production.
Monitoring and feedback control: Excellent performance in real-time monitoring and feedback control of equipment operating status.
5、 Configuration and Programming
In order to adapt to specific application requirements and control strategies, users need to configure and program the IC670ALG310 module. This usually involves setting parameters such as input range, output range, alarm conditions, and writing corresponding control logic.
