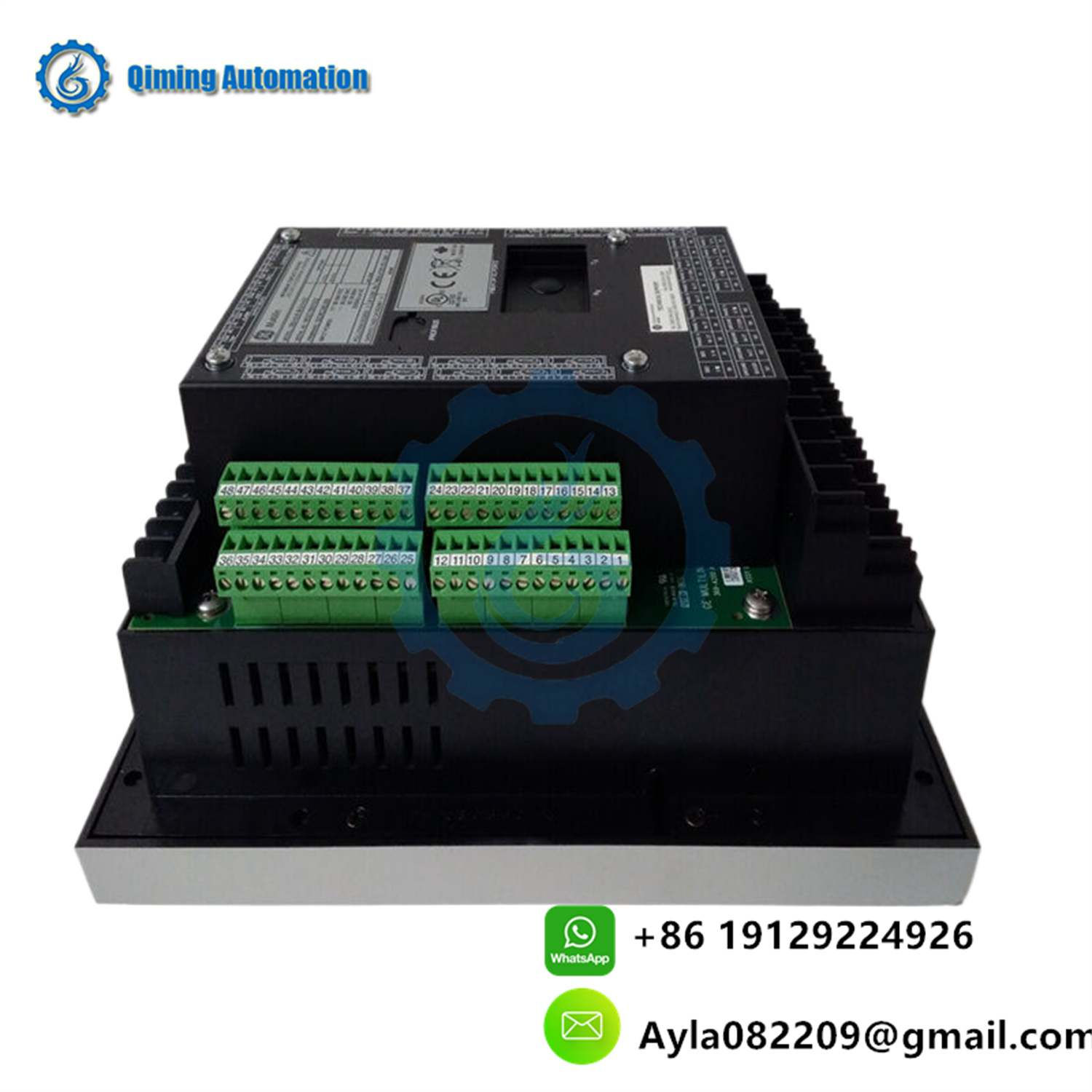

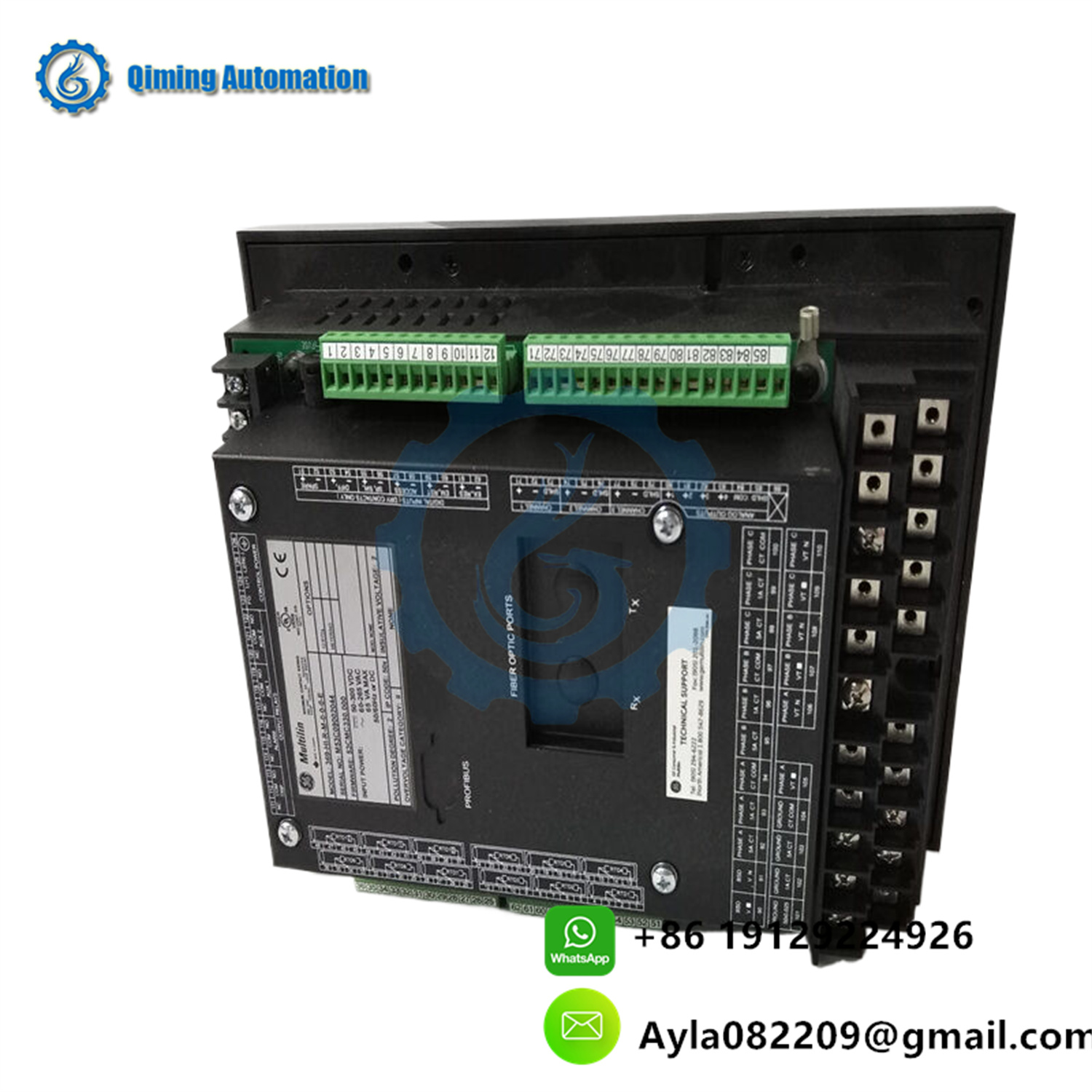

GE 369-HI-0-0-0-0-0-E is a motor management relay from General Electric's (GE) Multilin series, primarily used for monitoring and protecting motors to ensure their safe and reliable operation. The following is a detailed introduction to the product:
1、 Product Overview
As a motor management relay, GE 369-HI-0-0-0-0-E integrates multiple protection functions, which can detect various motor faults such as overload, short circuit, grounding fault, etc., and promptly issue alarms or take corresponding protective measures. This relay adopts industrial grade design, suitable for harsh industrial environments, and has high reliability and configurability.
2、 Main functions
Motor protection: Provides multiple protection functions such as overload, short circuit, ground fault, stall, etc., ensuring that the motor can operate safely under various working conditions.
Monitoring function: Real time monitoring of motor parameters such as current, voltage, temperature, etc., providing comprehensive monitoring of the motor's operating status.
Alarm function: When a fault is detected, the relay will emit an audible and visual alarm and provide fault information to help users quickly locate the problem.
Communication function: Supports multiple communication protocols, such as MODBUS, and can communicate with upper computers such as PLCs to achieve remote monitoring and control.
3、 Technical features
Adaptive System: GE 369-HI-0-0-0-0-E is an adaptive system that can "learn" motor requirements and provide appropriate protection measures based on actual situations.
Event recording: With event recording function, it can record and store data of motor operation and fault events for subsequent analysis and fault diagnosis.
Configurability: Flexible configuration through software to meet different application requirements. Users can set appropriate protection parameters based on the specific characteristics of the motor.
Easy to use: Provides a user-friendly interface for easy operation and maintenance. The front end of the relay is equipped with an RS232 port, which can be connected to a computer running GE Multilin's industry-leading software EnerVista 369, enabling faster setpoint modification.
4、 Application Fields
GE 369-HI-0-0-0-0-0-E is widely used in various industrial automation systems, such as motor drives, pumps, fans, etc. At the same time, it is also suitable for motor protection in power systems, as well as process control systems in industries such as chemical and metallurgical industries.
5、 Product specifications
Input voltage: 110-250VDC or 100-240VAC
Input signals: various types of current, voltage, temperature signals
Output signals: relay contacts, digital output, etc
6、 Precautions
Relays should be installed away from strong magnetic fields and high current conductors to avoid damage caused by long-term exposure to these environments.
During installation and use, relevant safety regulations should be followed to ensure the safety of operators.
In summary, GE 369-HI-0-0-0-0-E is a comprehensive and high-performance motor management relay that can provide comprehensive protection and monitoring functions for motors, ensuring their safe and reliable operation.
