GE IS200ECTBG1ADE is an excitation machine contact terminal card produced by General Electric (GE). The following is a detailed introduction to the product:

1、 Product Overview

IS200ECTBG1ADE, as part of the Mark VI Speedtronic series, is designed to be used as an excitation machine contact terminal card. The Mark VI Speedtronic system is one of the final systems released by GE for steam and gas industry system management, with high flexibility and a wide range of applications.

2、 Main features

Configuration and purpose:

IS200ECTBG1ADE is only used for redundant systems. If running a simplex system, reference should be made to the ECTBG2 board.

As a component of the Mark VI Speedtronic series, it is widely used in various industrial systems, especially steam and gas industrial systems.

Input/output:

Input: There are six auxiliary contact inputs, which are powered by M1/M2 power supply.

Output: There are four additional universal (C-type) relay outputs, which are controlled by nearby EMIO boards. In addition, there are two trip contact outputs that drive user locking.

Connection and appearance:

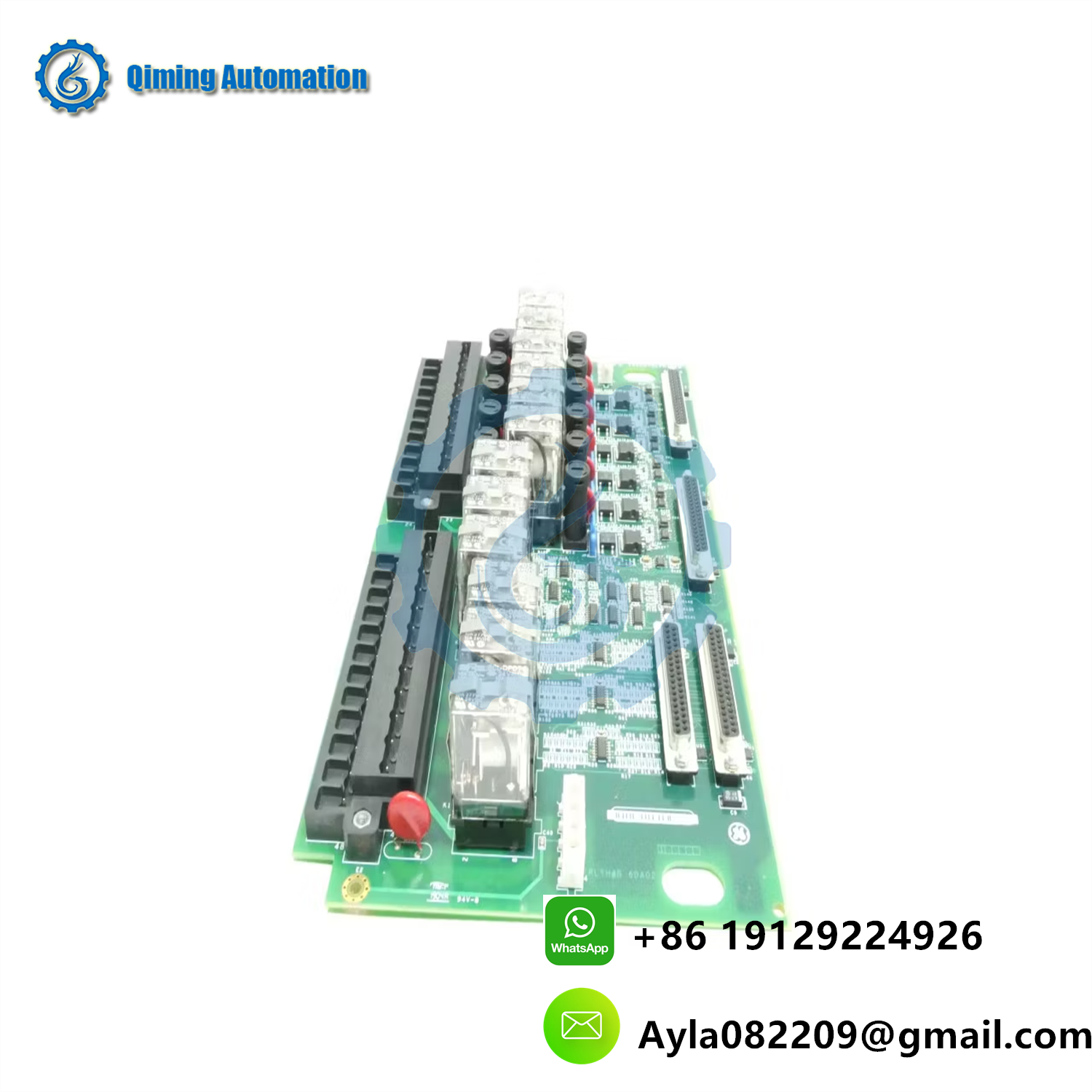

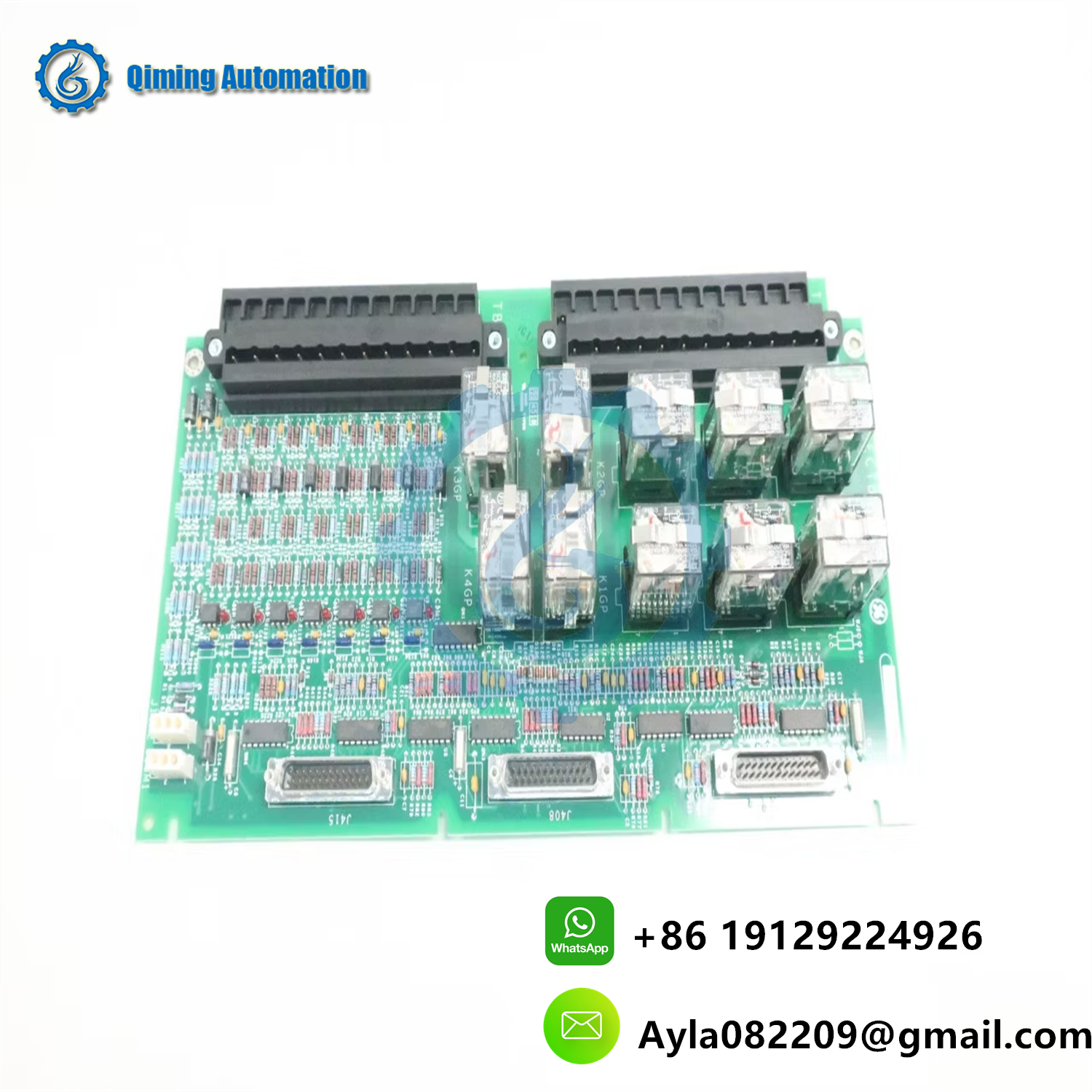

IS200ECTBG1ADE has two terminal boards located on one side, two three position plugs on the surface of the circuit board, and three d-shell connectors for connecting cables along one long side.

The two long sides of the board are processed into a certain shape (engraved with grooves) for easy installation and connection.
