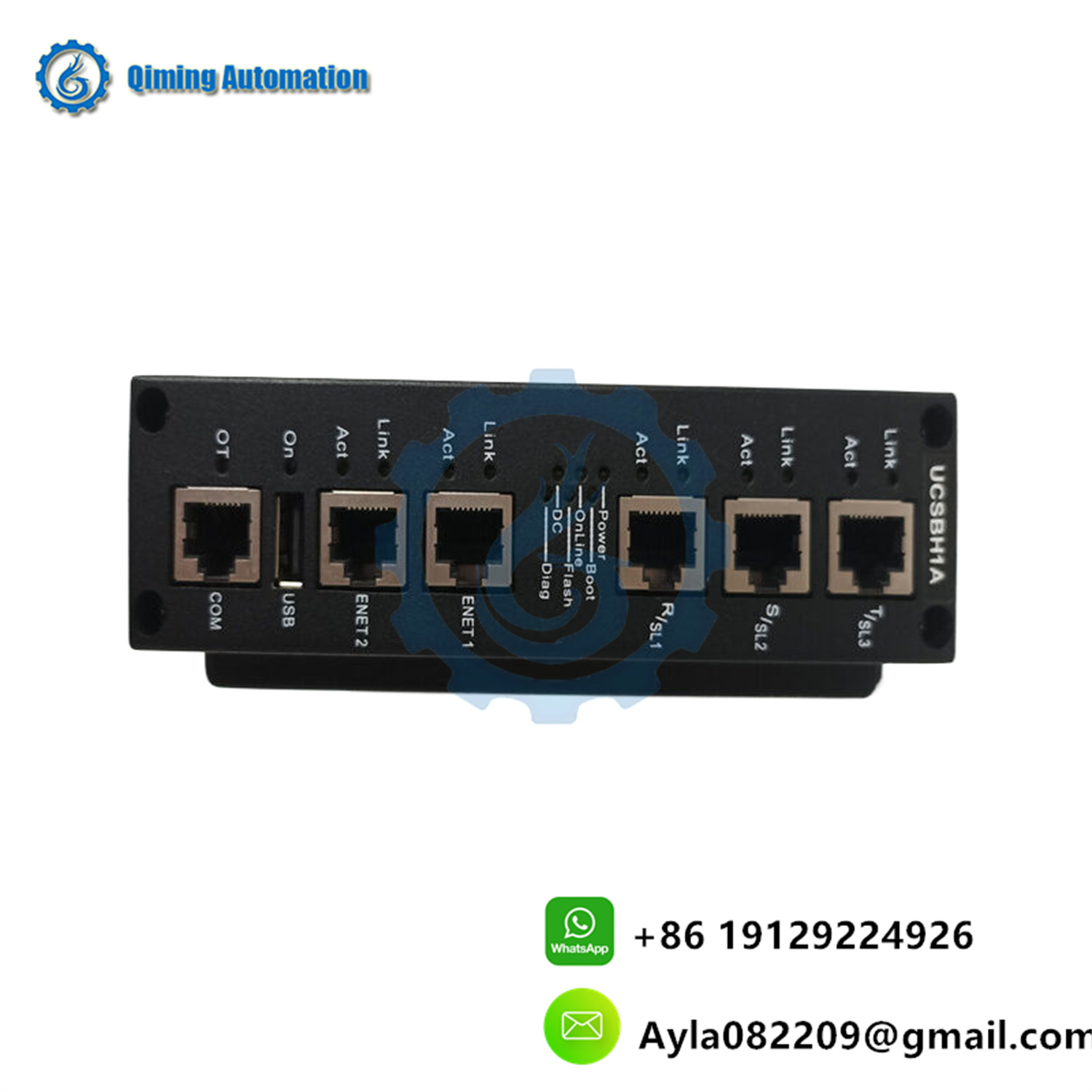

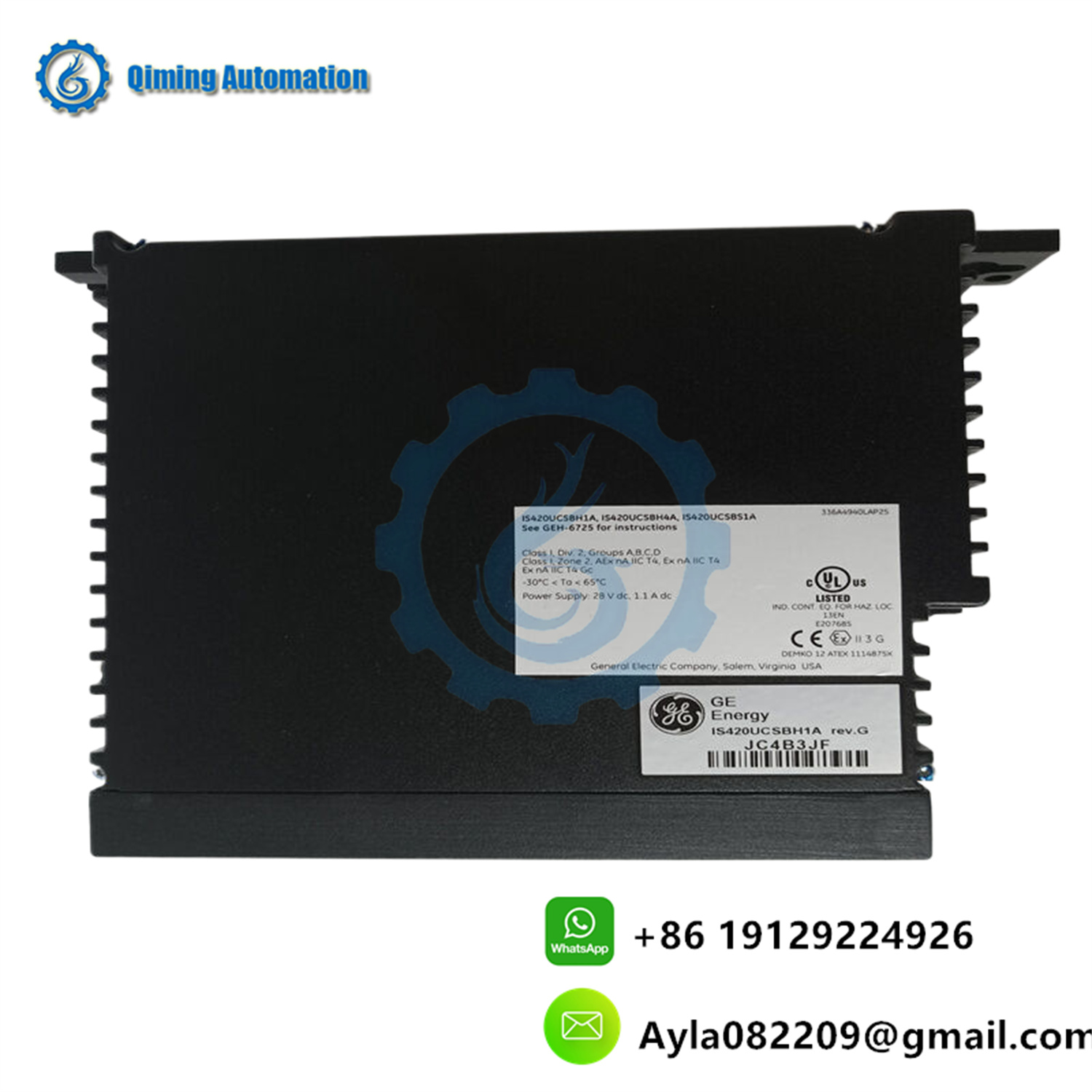

The GE IS420UCSBH1A is a high-performance and reliable controller module specifically designed for industrial automation and control systems. It is part of the GE Mark VIe Speedtronic system, which is recognized for its advanced capabilities in controlling water turbines, gas turbines, and steam turbines. Below is a detailed introduction to the GE IS420UCSBH1A in English:

Overview

• Model Name: IS420UCSBH1A
• Manufacturer: General Electric (GE)
• Series: Mark VIe
• Function: Acts as a controller within the Mark VIe system, responsible for monitoring, controlling, and managing various engineering processes.

Key Features

1. Single-Module Controller:

   • IS420UCSBH1A is a single-module controller that uses its onboard I/O network to interface with I/O groups.
   • This design simplifies installation and maintenance while ensuring robust performance.

2. Modular Design:

   • The controller adopts a modular design, allowing for easy customization and expansion based on specific application requirements.
   • Additional control modules can be added or removed as needed, providing flexibility and scalability.

3. Real-Time Control:

   • The IS420UCSBH1A supports real-time control, enabling it to quickly respond to changes in the process and ensure the stability and performance of equipment and systems.

4. Data Acquisition and Processing:

   • The controller has powerful data acquisition and processing capabilities, capable of collecting data from various sensors and monitoring devices.
   • It can filter, amplify, digitize, and calibrate the collected data to ensure accuracy and reliability.

5. Communication Interfaces:

   • IS420UCSBH1A is equipped with multiple communication interfaces, such as Ethernet, RS-232, RS-485, and others, facilitating data communication with other devices and control systems.
   • These interfaces enable the module to receive and send data in real-time, improving the communication performance of the entire control system.

6. Data Recording and Storage:

   • The controller supports data recording and storage functions, allowing for the storage of collected data in internal memory or external storage devices.
   • This helps in monitoring and recording the operating status of turbines in real-time, facilitating subsequent data analysis and fault diagnosis.

7. Alarm and Notification:

   • The IS420UCSBH1A can generate alarms and notifications to alert operators or relevant personnel about process abnormalities or important events.
   • This feature ensures timely response to potential issues, preventing potential accidents and reducing downtime.

8. Security:

   • The controller includes security features to ensure that the system is not threatened by unauthorized access or network attacks.
   • This enhances the overall security and reliability of the control system.

Specifications

• Processor: 60mhz Intel EP80579 microprocessor
• Memory: 26mb ddr2 SDRAM memory with flash memory supporting SRAM
• Operating System: QNX Neutrino OS supports control block languages (analog and digital)
• Connectivity: Twisted pair 10Base-TX/100Base-TX and RJ-45 connectors, TCP/IP protocol for many applications
• Dimensions: 6.4 inches x 8.1 inches x 1.4 inches
• Weight: 2.4 pounds (excluding shipping packaging)
• Ambient Temperature: -22 to 149 degrees Fahrenheit

Applications

• IS420UCSBH1A is widely used in gas turbine control systems, where its high performance and reliability are crucial for ensuring the stable and efficient operation of turbines.
• It can be integrated into larger automation systems, enabling seamless communication and data exchange between different components.

Installation and Maintenance

• IS420UCSBH1A is designed to be directly installed on a metal panel, with its fins kept unobstructed to ensure proper airflow and cooling.
• Regular inspections and maintenance are recommended to ensure the long-term reliability and performance of the controller.
• The controller's settings can be configured using GE's ToolboxST application, providing a user-friendly interface for customization and troubleshooting.

In summary, the GE IS420UCSBH1A is a versatile and reliable controller module that offers advanced features and capabilities for industrial automation and turbine control systems. Its modular design, real-time control, data acquisition and processing capabilities, and robust security features make it an ideal choice for a wide range of applications.
