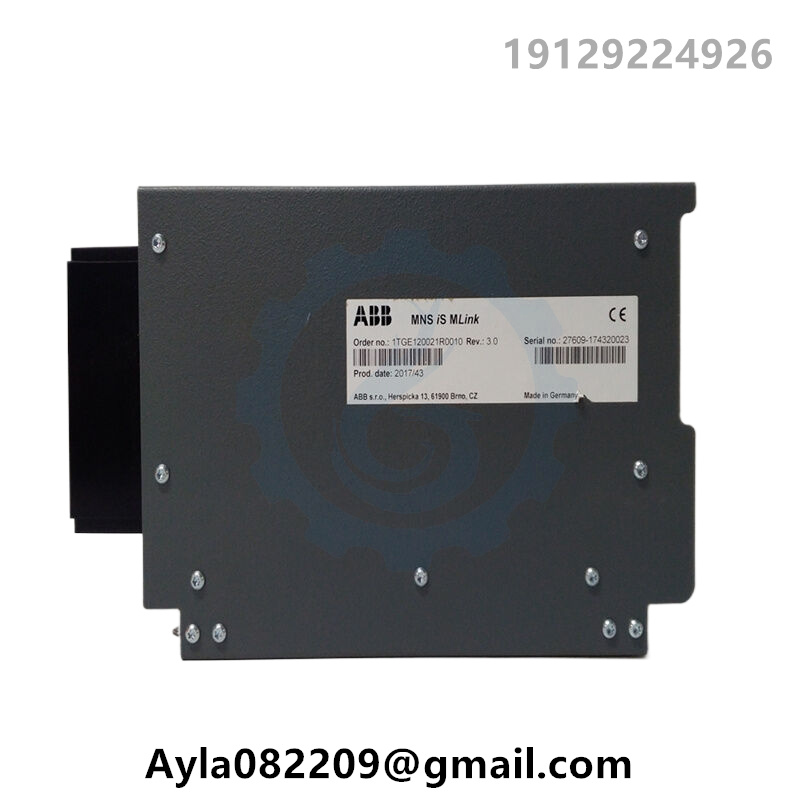

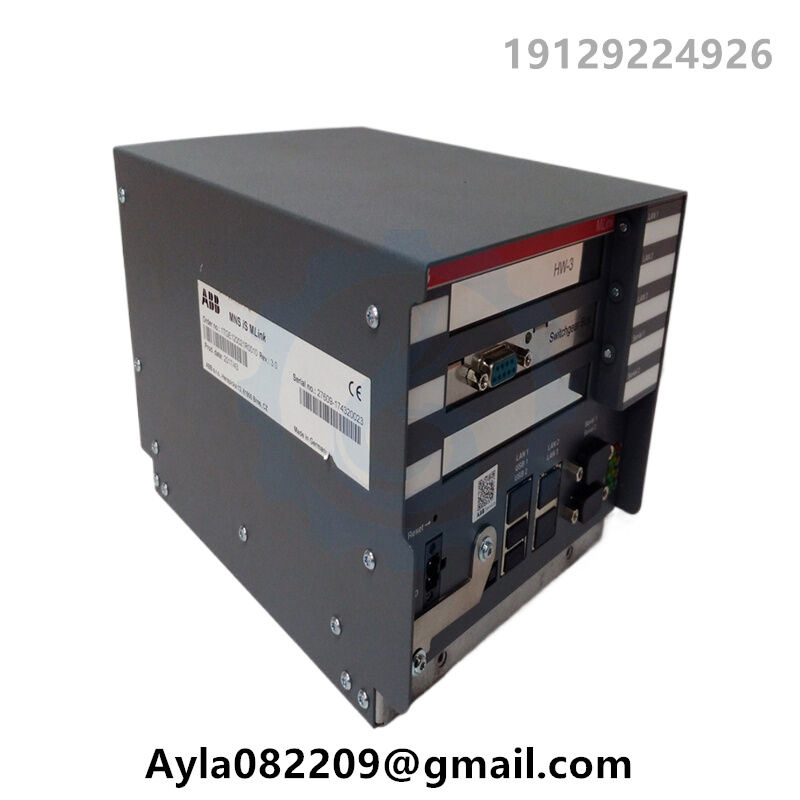

ABB 1TGE120021R0010 is a powerful analog output module. The following is a detailed introduction to the module:

1、 Overview

The ABB 1TGE120021R0010 module can be used to convert analog signals from control systems into voltage or current signals that can be used to drive actuators. This module is an important component of the control system, widely used in industrial automation systems, industrial control, building automation, HVAC control, and power generation fields.

2、 Technical specifications

Output channels: This module has multiple output channels (the specific number may vary depending on the model or configuration, some say 2, while others say 8), each of which can provide high-resolution analog signal output.

Resolution: The resolution of each channel is 12 bits, ensuring the accuracy and stability of the signal.

Output signal type: This module supports a current/voltage output range of 0 to 10V or 4 to 20mA, meeting the needs of different application scenarios.

Isolation function: This module can be equipped with isolation function to improve the safety and stability of the system.

Installation method: Supports DIN rail installation, making it convenient for users to build and expand modular systems.

3、 Characteristics and advantages

Strong universality: ABB 1TGE120021R0010 is a universal module that can be used for various industrial control and automation applications, providing users with flexible and diverse solutions.

High precision: High resolution and stable output signals ensure the high precision and reliability of the system.

Easy to install and maintain: Adopting DIN rail installation method simplifies the process of system construction and maintenance.

Scalability: This module supports multiple configurations and expansion options, making it convenient for users to upgrade and expand the system according to their actual needs.

4、 Application Fields

The ABB 1TGE120021R0010 module is widely used in industrial automation, industrial control, building automation, HVAC control, and power generation fields. Specific application scenarios include but are not limited to:

Analog signal output and control in industrial automation systems.

Environmental monitoring and regulation in building automation systems.

Accurate control of temperature, humidity, and other parameters in HVAC control systems.

Excitation control, reactive power compensation, etc. in power generation systems.

5、 Precautions

When using ABB 1TGE120021R0010 module, please ensure a stable power supply to avoid damage to the module.

When configuring and debugging the system, please follow the relevant technical manuals and safety operating procedures.
