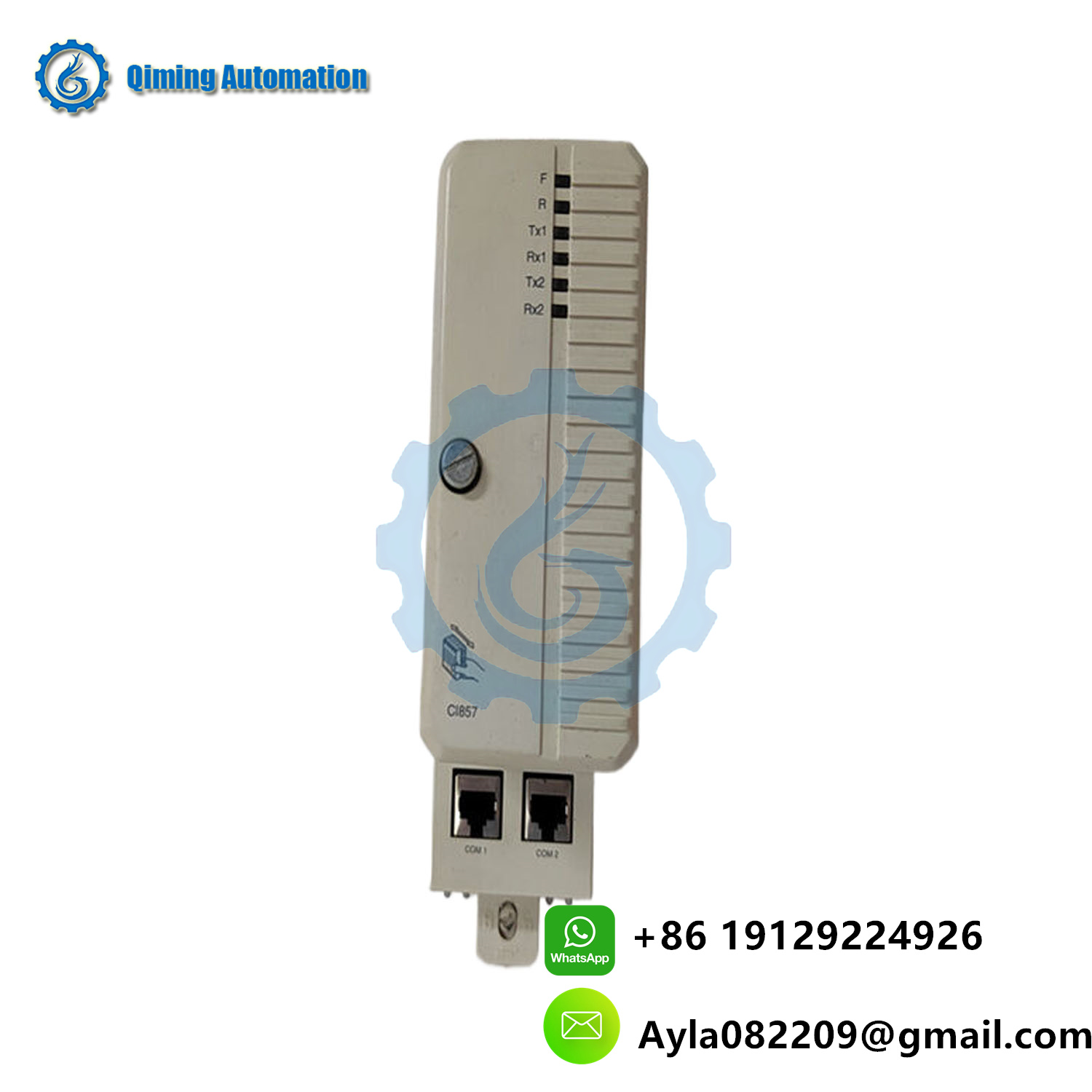

ABB CI857K01 3BSE018144R1 800xA Communication Interface Module

Mobile/WeChat:19129224926

WhatsApp: +86 19129224926 (click to contact me)

Skype: +86 19129224926 (click to contact me)

E-mail: Ayla082209@gmail.com

Condition: Brand new original


  • brand:

    ABB
  • model:

    CI857K01 3BSE018144R1
  • Warehouse:

    In stock
  • Warranty:

    365 days
  • Delivery time:

    Within 3 days after payment
Product details

Product Overview

The ABB CI857K01 (3BSE018144R1) is a communication interface module designed for ABB’s AC 800M and System 800xA industrial automation platforms. It acts as a gateway to integrate field devices, control systems, and enterprise networks by supporting multiple industrial communication protocols. This module is critical for enabling real-time data exchange, remote monitoring, and interoperability in complex automation architectures, such as power plants, oil and gas facilities, and manufacturing plants.


Technical Specifications

Hardware & Electrical Parameters

  • Module Type:
    • Communication Interface: Dual-port Ethernet switch with protocol support.
  • Power Supply:
    • Voltage: 24 V DC (19.2–28.8 V DC).
    • Power Consumption: ~5 W (typical).
  • Communication Ports:
    • Ethernet Ports: 2x 10/100 Mbps RJ45 ports with auto-negotiation.
    • Fieldbus Support: PROFIBUS DP, Modbus TCP/RTU, OPC UA, and IEC 61850.
  • Environmental Ratings:
    • Operating Temperature: -25°C to +70°C.
    • Humidity: 5–95% (non-condensing).
    • Certifications: CE, UL, ATEX/IECEx (for hazardous areas).
  • Mounting:
    • Designed for installation in ABB’s S800 I/O or AC 800M controller racks.

Software & Protocol Integration

  • Supported Protocols:
    • PROFIBUS DP: Master/slave functionality for legacy devices.
    • Modbus TCP/RTU: Integration with SCADA, HMIs, and PLCs.
    • OPC UA: Secure data exchange for Industry 4.0 and cloud connectivity.
    • IEC 61850: Substation automation and grid management.
  • Configuration Tools:
    • Configured via ABB’s Control Builder M or Automation Builder software.
  • Firmware Updates:
    • Supports online updates for protocol stacks and security patches.

Key Functionalities

  1. Multi-Protocol Gateway

    • Translates between protocols (e.g., PROFIBUS to Modbus TCP) to bridge legacy and modern systems.
    • Enables seamless integration of third-party devices into ABB’s automation ecosystem.
  2. Redundancy & High Availability

    • Supports network redundancy (PRP/HSR) for fault-tolerant communication.
    • Dual Ethernet ports enable redundant network topologies.
  3. Cybersecurity Features

    • Role-based access control and encrypted communication (TLS/SSL).
    • VLAN tagging and firewall rules for network segmentation.
  4. Diagnostics & Troubleshooting

    • Real-time monitoring of network traffic and device status.
    • Detailed event logs for identifying communication errors or latency issues.
  5. Scalability

    • Compatible with ABB’s AC 800M controllers and S800 I/O modules for scalable solutions.
    • Expandable with additional communication modules (e.g., CI854, CI855).

Applications

  • Power Generation: Integration of turbines, transformers, and grid control systems.
  • Oil & Gas: Remote monitoring of pipelines, pumps, and safety systems.
  • Manufacturing: Interfacing robotics, PLCs, and MES/ERP systems.
  • Water Treatment: SCADA connectivity for pumps, valves, and sensors.

Installation & Configuration

  1. Hardware Setup:
    • Install the module in an AC 800M or S800 rack using the dedicated slot.
    • Connect Ethernet cables to the RJ45 ports and field devices.
  2. Software Configuration:
    • Define protocol parameters (e.g., IP addresses, baud rates) in Control Builder M.
    • Map I/O signals between the controller and field devices.
  3. Testing:
    • Validate communication using diagnostic tools like ping, trace routes, or protocol analyzers.

Ordering Information

  • Model: CI857K01
  • ABB Order Code: 3BSE018144R1
  • Compatible Systems:
    • AC 800M controllers (e.g., PM861, PM865).
    • S800 I/O racks (e.g., SA801, SA811).
  • Accessories:
    • Communication cables (e.g., PROFIBUS DP connectors).
    • Redundancy modules (e.g., CEX-bus for controller redundancy).

Certifications & Compliance

  • Standards: IEC 61131, IEEE 802.3 (Ethernet), RoHS.
  • Safety: SIL 2/3 achievable in safety-critical configurations.

Documentation & Support

  • User Manual: Refer to CI857K01 Hardware Manual (3BSE018144R1) for wiring diagrams.
  • Troubleshooting: Use ABB’s Asset Care platform for predictive maintenance.
  • Technical Support: ABB’s global service network provides firmware and protocol-specific guidance.

The CI857K01 3BSE018144R1 is a versatile and robust solution for modern industrial communication challenges, ensuring interoperability, reliability, and cybersecurity.
