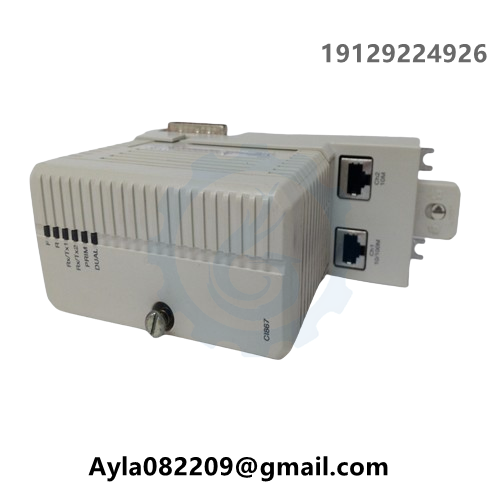

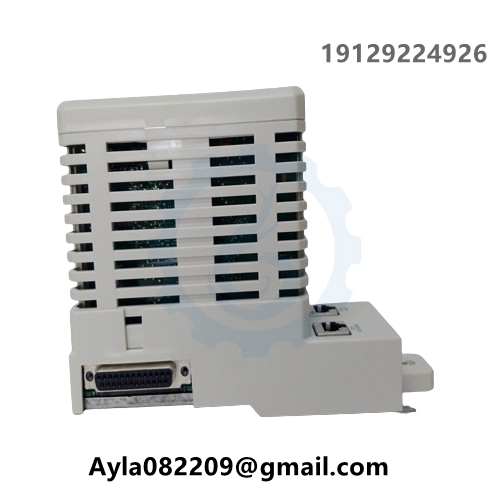

ABB CI867K01 3BSE043660R1 is a high-performance intelligent I/O module that is also used as a communication module and is widely used in the field of industrial automation. The following is a detailed introduction to the module:

1、 Product Overview

Model: CI867K01

Number: 3BSE043660R1

Brand: ABB

Type: Intelligent I/O module/Communication module

2、 Technical features

Built in high-performance processor: enhances data processing and communication capabilities.

Support redundant configuration: Redundant components (such as redundant processors, central servers, and transmission media) can be added to critical parts to improve system reliability and stability.

Intelligent control algorithm: Adopting advanced control algorithms such as fuzzy logic, expert systems, genetic algorithms, and neural networks, the system's control level has been improved.

Artificial intelligence technology: Utilizing artificial intelligence technology for self diagnosis and early prediction of faults, optimizing process control.

Multiple communication interfaces: Equipped with communication interfaces such as Modbus TCP, it also supports communication protocols such as PROFIBUS DP and EtherNet/IP, facilitating data exchange and communication with other devices.

3、 Specification parameters

Size: There are two ways to describe the length, which are 127.5mm or 170mm; There are two ways to describe the width, which are 59mm or 105mm; There are two versions of height, which are 185mm or 32mm.

Weight: There are two ways to describe the net weight of the product, which are 0.62kg or approximately 120g.

Environmental requirements: The operating temperature is -20 ° C to+50 ° C (also known as -40 ° C to+70 ° C), the storage temperature is -40 ° C to+70 ° C, and the environmental humidity is 5% to 95% relative humidity (no condensation).

Electrical parameters: Input voltage range is 12-48VDC, output voltage is 5VDC. The power supply voltage is usually 24V DC. The typical power consumption is 160 mA.

Transmission speed: Channel 1 is 10/100 Mbit/s, and Channel 2 is 10 Mbit/s.

Maximum connected devices: Each channel supports up to 70 slave stations or 8 master stations.

Connector type: RJ-45 female head (8-pin).

4、 Application Fields

The CI867K01 module is suitable for multiple fields, especially in situations that require high performance, high reliability, and complex control, such as:

Industrial automation: used to communicate with other automation equipment, control systems, or sensors to achieve automation and integration of industrial production lines.

Process control: used to monitor and control various processes, such as chemical plants, power plants, pharmaceutical plants, etc.

PLC (Programmable Logic Controller) system: Integrated into the PLC system, used for communication with other PLC modules or external devices to achieve centralized management of the entire control system.

Data collection and monitoring: used to obtain data from various sensors and devices, and transmit this data to the monitoring system for real-time monitoring and analysis.

Remote monitoring and operation: Supports remote monitoring and operation, enabling operators to monitor and control the production process from different locations.
