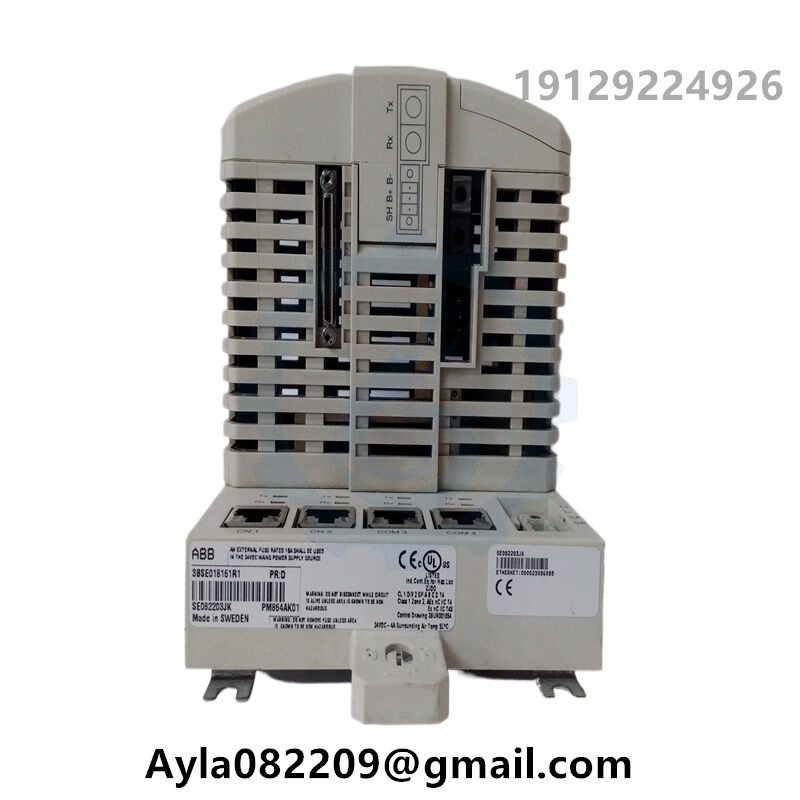

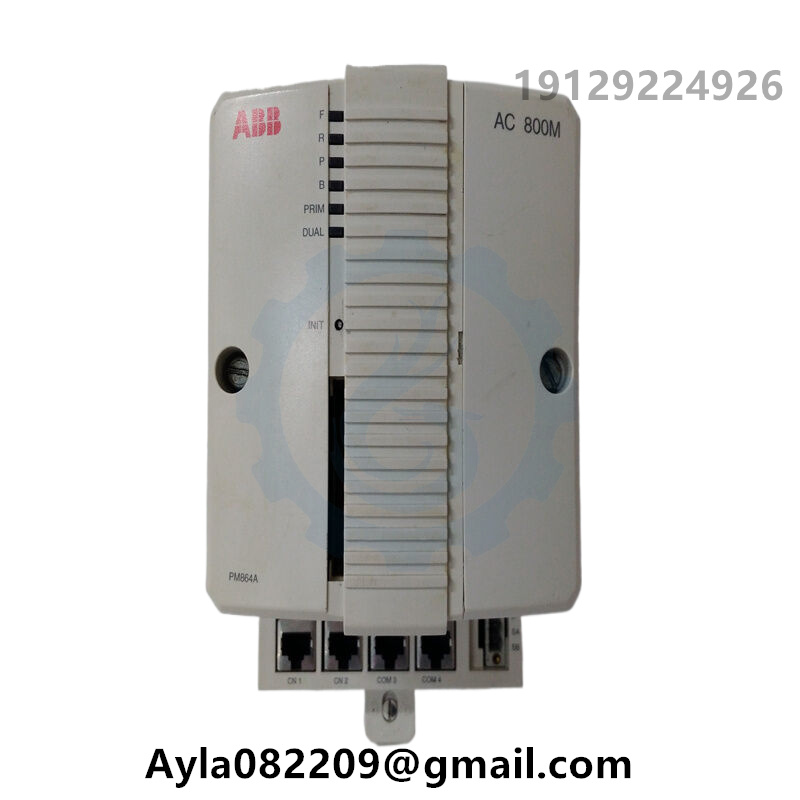

ABB PM864AK01 3BSE018161R1 is a high-performance controller. The following is a detailed introduction to the product:

1、 Basic Information

Manufacturer: ABB

Model: PM864AK01

Part number: 3BSE018161R1

2、 Functional Features

Real time control capability: PM864AK01 has powerful real-time control capability, which can handle real-time feedback and dynamic control requirements, ensuring stable operation of the system within predetermined parameters.

Multiple communication protocol support: This controller supports multiple communication protocols, such as Modbus, Profibus, Ethernet, etc., and can exchange and communicate data with other devices, sensors, actuators, and monitoring systems, simplifying network structure and improving system flexibility.

Large memory capacity: PM864AK01 is equipped with 32M of memory capacity for storing control programs, data, and historical records, capable of processing large amounts of data and ensuring system stability and reliability.

Programmable: The controller supports multiple programming languages and development tools, such as LD (ladder diagram), ST (structured text), FBD (functional block diagram) under the IEC 61131-3 standard. Users can customize the module through programming to execute specific control logic and tasks.

Multi tasking: PM864AK01 supports multi tasking and can execute multiple control tasks simultaneously, improving system efficiency and enabling it to manage multiple processes or devices simultaneously.

Safety Function: In order to ensure the safe operation of the system, PM864AK01 is equipped with safety functions for monitoring and managing hazardous situations. In emergency situations, the controller can take necessary safety measures.

Redundancy function: In order to improve the reliability of the system, PM864AK01 is usually designed with redundancy function to prevent single point failures and ensure the continuous operation of the system.

Self diagnostic function: This controller has a self diagnostic function, which can detect faults and generate alarms, helping maintenance personnel quickly locate and solve problems, thereby improving the availability and reliability of the system.

3、 Hardware Design

Rail installation: PM864AK01 is based on rail installation and has a modular design.

Interface: Includes microprocessor and RAM, real-time clock, LED indicator lights, start button, and compact flash interface. The motherboard has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, as well as two RJ45 serial ports (COM3, COM4). One of them is an RS-232C port with a modem control signal, while the other port is isolated and used to connect configuration tools.

4、 Application Fields

PM864AK01 is widely used in various industrial automation systems, such as production lines, power plants, etc. It can meet the needs of these systems for complex control and monitoring tasks, improve production efficiency, and reduce maintenance costs.
